Mengenai Structural Navigator

Kajian semula dan kerjasama alat yang berkuasa untuk 3D model kejuruteraan struktur.

Structural Navigator is the ideal app for the mobile review of 3D structural engineering models. Structural Navigator allows designers to view, query, and red line structural models in 3D from anywhere using a mobile device. With Structural Navigator users can:

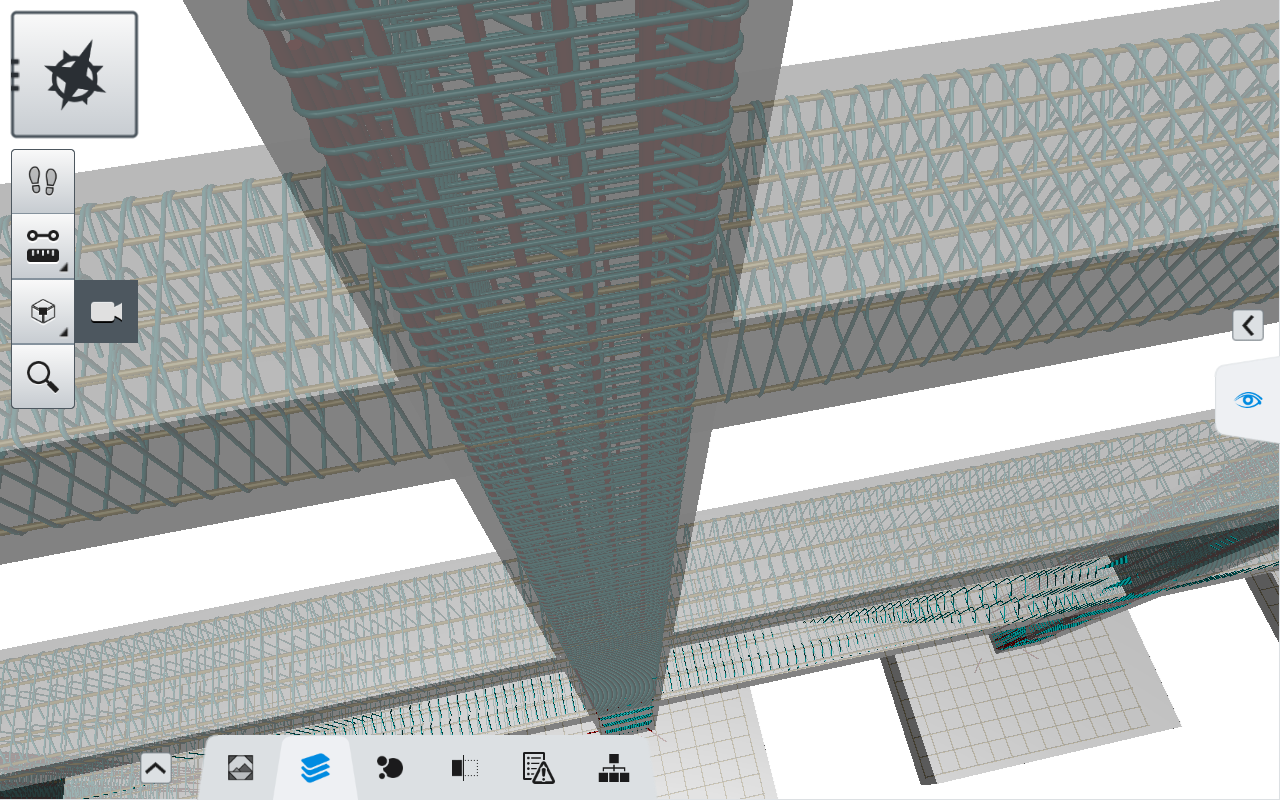

• Navigate through 3D models using zoom, rotate, pan, walkthrough, and flyover commands

• Color code elements within the model according to specific properties (for example, slab thickness, pipe diameter, etc.)

• Filter models based on members with common member attributes

• Check for clashes between different types of objects

• Add markups with status, due date, responsible party, and additional information

• Interactively query members for all property values

Structural Navigator reads Bentley’s i-model format, to which any ISM repository can be easily converted with a single operation. Several sample i-models are included with the installation.

The process is simple. Build a data-rich ISM repository using any Bentley ISM-compliant applications desired, convert the ISM repository to i-model, and then review in Structural Navigator. Structural Navigator can read models from any of the following sources once published to i-model:

• STAAD

• RAM

• SACS

• Microstran

• AECOsim

• Revit

• Tekla

• ProStructures

Tunjukkan Lagi

What's new in the latest 06.01.04.07

Last updated on 2018-05-25
Structural Navigator now supports workflows utilizing ProjectWise Share on Bentley Cloud Services.
The latest version of Structural Synchronizer allows direct publishing of i-models to ProjectWise Project. All team members belonging to the same ProjectWise Project using Structural Navigator can now instantly access i-models on their devices to collaborate more effectively, on site or in the office.

This version also includes various data presentation enhancements and bug fixes.
Tunjukkan Lagi

Video dan tangkapan skrin

  • Structural Navigator penulis hantaran

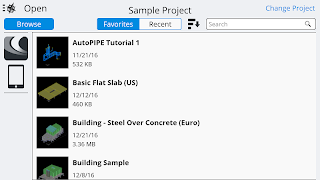

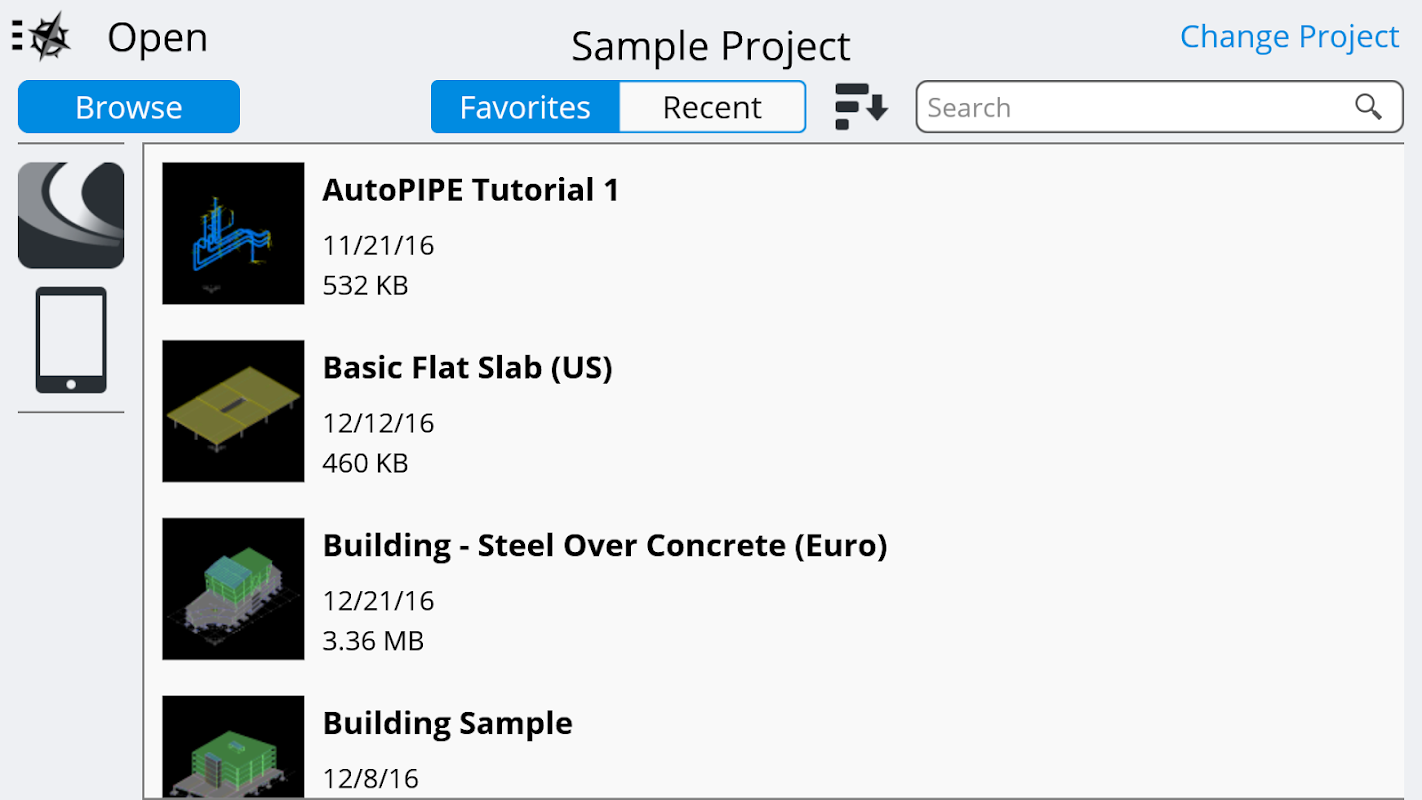

  • Structural Navigator syot layar 1
