BlueStick Control [Phone]

Control your robot via bluetooth

* Easy to use with Robo-circle 3S or any robot which support with BlueStick - Serial Port Profile (SPP) Bluetooth Module. Check Product at

BlueStick - http://goo.gl/gKdSG

Robo-CIRCLE 3S - http://goo.gl/Sj6aJ

Robo-Creator - http://goo.gl/b7jfs

POP-BOT XT Standard - http://goo.gl/aLMu7

For Robo-CIRCLE3S download this code for i-Box III LogoBlocks to use with this application

http://goo.gl/s0GeB

For POP-XT download this code for Arduino to use with this application

http://goo.gl/6KcNX

Download this application source code from

http://goo.gl/2qr7V

Bluestick Control will help your to control your robot via bluetooth connection.So you can use android device to control robot.We use to control Robo-Circle and you can applied for any robot as you want.

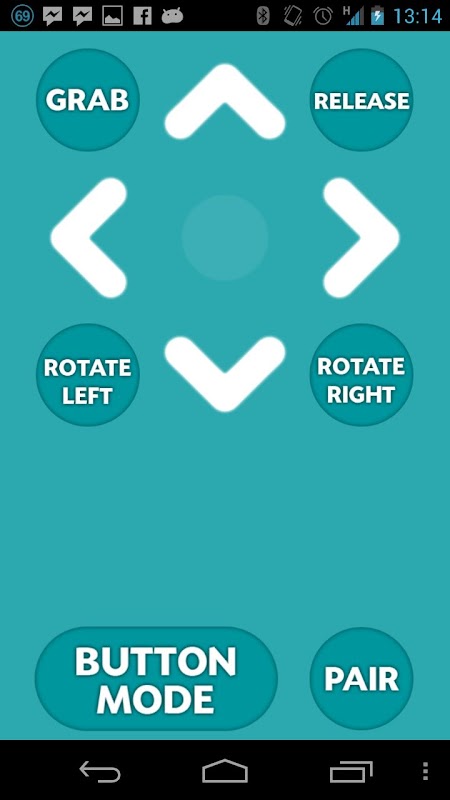

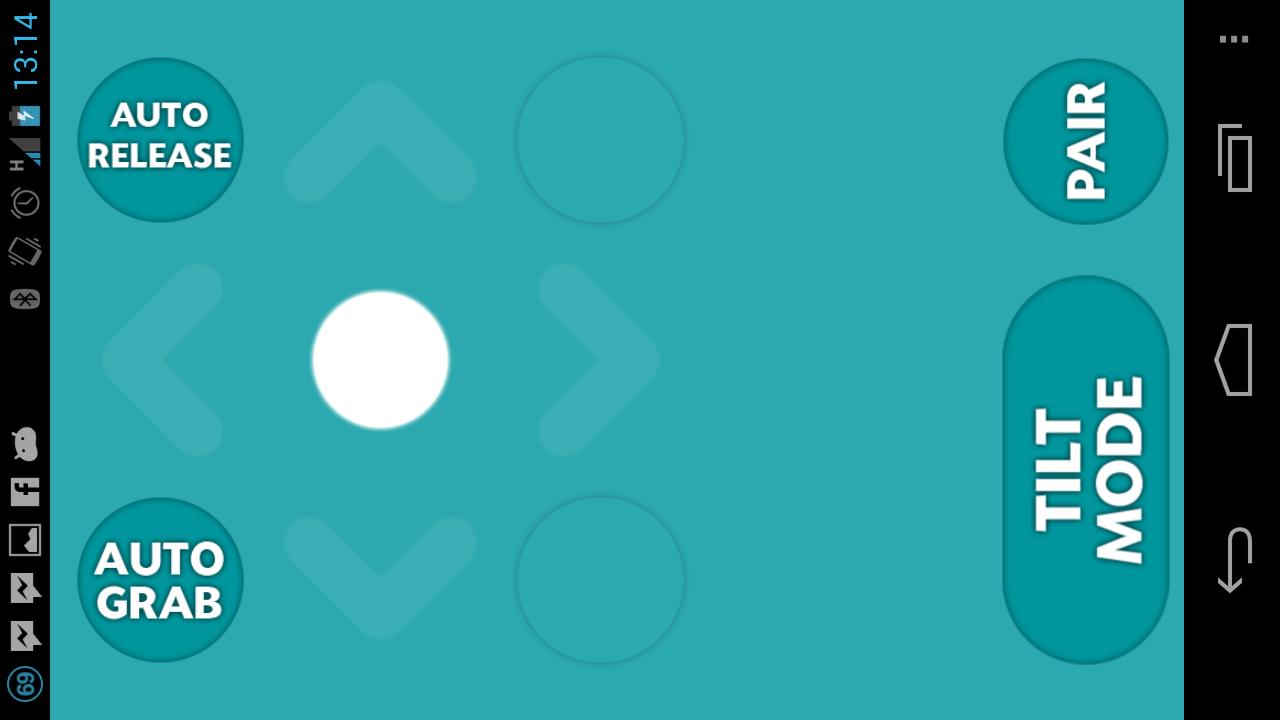

In use of this application, user must be connected android device to robot via bluetooth then controlling your robot by press direction button in this apllication in button mode, if you want to use tilt mode, just touch at "Button Mode".The application will change to tile mode and that text will change to "Tilt Mode". In tilt mode user can tilt your device to control your robot.

How to use

• Turn on your robot and this application

• Press "PAIR" and scan bluetooth on your robot and select it

• Waiting for connection

• You can control your robot now

If you want to changed command button

• Press menu button on your device then command button will enlarge

• Select a button you want to change

• Select command button you want

• Press menu button again or back button to complete the command button setting

This application use bluetooth connection in Serial Port Profile (SPP).Send hex code to robot as follows :

0x30 = Stop

0x38 = Up

0x32 = Down

0x34 = Left

0x36 = Right

0x41 = Auto Grab

0x42 = Auto Release

0x43 = Grab

0x44 = Release

0x45 = Rotate Left

0x46 = Rotate Right

Your robot will have bluetooth connection, and programmed with bluetooth connection code.
