Sobre este Phased Array Wizard LITE

Aproveite milhões de apps, jogos, filmes, músicas, TV, livros e revistas mais recentes para Android. A qualquer momento, em qualquer lugar, em todos os seus dispositivos.

Phased Array Wizard contains all calculations that are frequently required in industrial applications by level I and II NDT technicians.

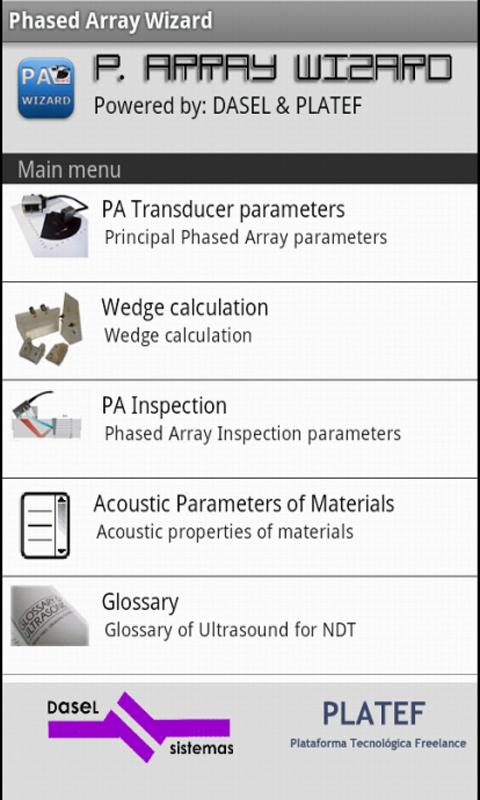

This application turns your smart phone in a powerful ultrasound calculator which simplifies the inspection set-up and the selection of the most appropriate Phased Array Transducer

Phased Array Wizard calculates the near field, beam divergence, maximum steering angle, beam focusing spot size, wedge calculation, wheel diameter and encoder resolution and maximum frequency for a given grain diameter among other important parameters.

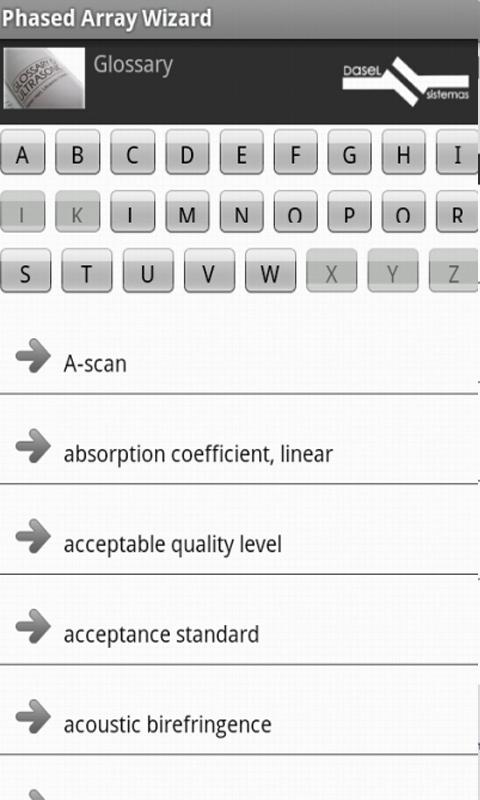

A complete ultrasound terms glossary and a database of material properties are also included (sound velocity, impedance, etc).

Main features

- Database with more than 50 materials

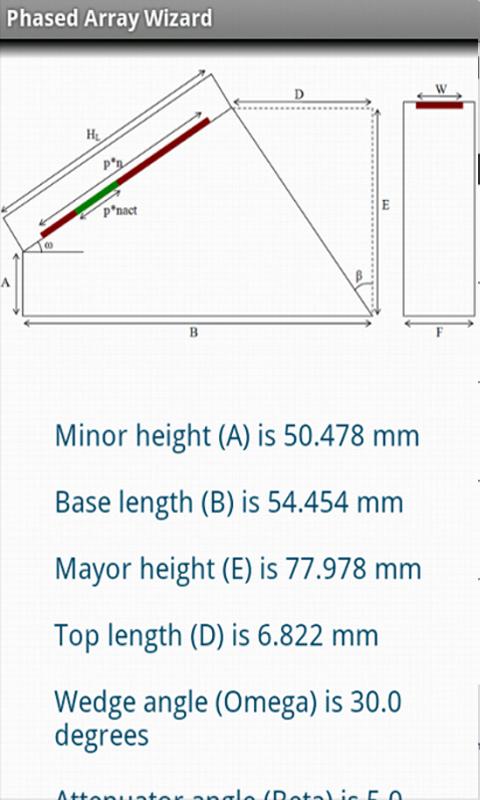

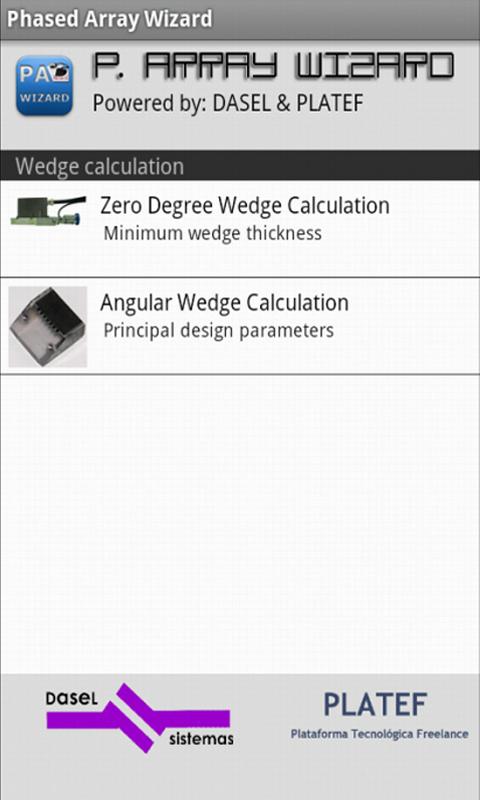

- Complete calculation of normal & angular wedge

- Beam Divergence

- Spot Size Calculation

- Grating lobe determination

- Maximum Steering angle capabilities

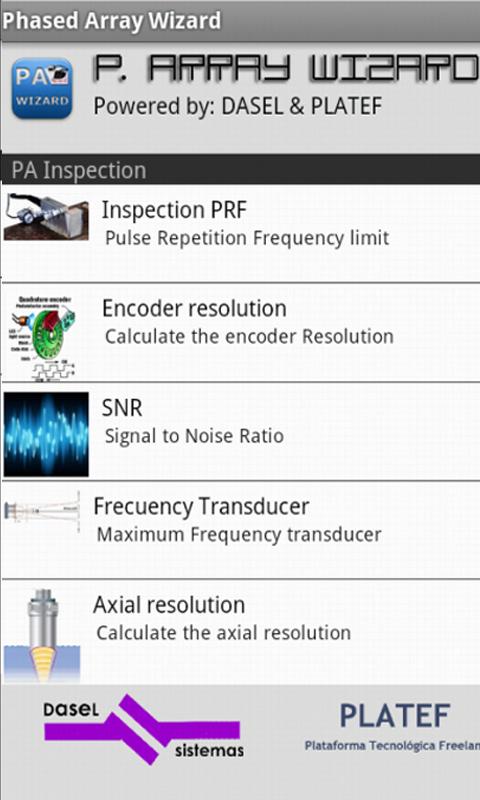

- PRF determination

- Encoder setup

- Signal to Noise Ratio

- Axial resolution

Pocket, calc, ultrasound, formulas, formula, NDT, physical, phased array, ultrasound , onmiscan, agr , pitch, image , s-scan , C-scan, modelling software
