Angle Finder For Android

Angle Finder es un instrumento que mide el ángulo de un objeto.

Angle Finder is an instrument that either measures an angle or allows an object to be rotated to a precise angular position. The term goniometry derives from two Greek words, γωνία (gōnía) 'angle' and μέτρον (métron) 'measure'.

A protractor is a measuring instrument, typically made of transparent plastic or glass, for measuring angles.

A clinometer is a device that measures vertical slopes, often the angle between the ground or the observer and a tall object.

Because the motion range is 90 degrees, you may use either side of your device.

The accuracy may be adjusted to three decimal places using the toolbar menu or the settings screen.

To open the navigation menu, use the hamburger button in the upper left corner of the screen. The Help Screen contains a user manual, information on your device's sensors, and a privacy policy.

Some protractors are simple half-discs. More advanced protractors, such as the bevel protractor, have one or two swinging arms, which can be used to help measure the angle.

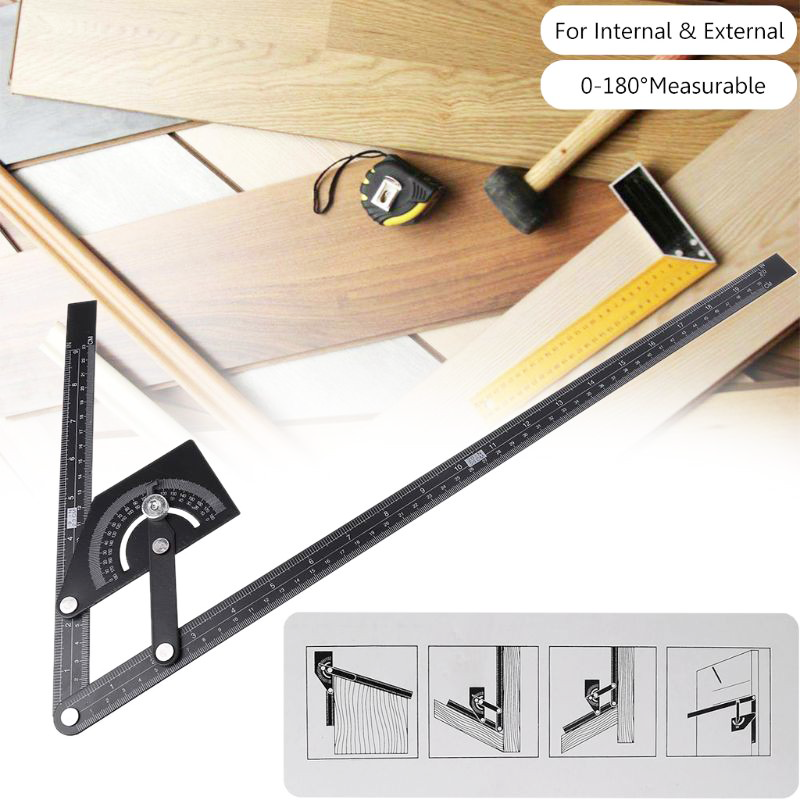

Typical Angle Finder

Angle Finder scale in degrees and radians

Most protractors measure angles in degrees (°). Radian-scale protractors measure angles in radians. Most protractors are divided into 180 equal parts. Some precision protractors further divide degrees into arcminutes.

They are used for a variety of mechanical and engineering-related applications. One common use is in geometry lessons in schools.

A bevel angle finder is a graduated circular protractor with one pivoted arm; used for measuring or marking off angles. Sometimes Vernier scales are attached to give more precise readings. It has wide application in architectural and mechanical drawing, although its use is decreasing with the availability of modern drawing software or CAD.

Universal bevel protractors are also used by toolmakers; as they measure angles by mechanical contact they are classed as mechanical protractors.[1][2]

The bevel protractor is used to establish and test angles to very close tolerances. It reads to 5 arcminutes (5′ or 1/12°) and can measure angles from 0° to 360°.

The bevel angle finder consists of a beam, a graduated dial and a blade which is connected to a swivel plate (with Vernier scale) by thumb nut and clamp. When the edges of the beam and blade are parallel, a small mark on the swivel plate coincides with the zero line on the graduated dial. To measure an angle between the beam and the blade of 90° or less, the reading may be obtained direct from the graduation number on the dial indicated by the mark on the swivel plate. To measure an angle of over 90°, subtract the number of degrees as indicated on the dial from 180°, as the dial is graduated from opposite zero marks to 90° each way.

Goniophotometers measure the spatial distribution of light visible to the human eye (often luminous intensity) at specific angular positions, usually covering all spherical angles.

Since the spaces, both on the main scale and the Vernier scale, are numbered both to the right and to the left from zero, any angle can be measured. The readings can be taken either to the right or to the left, according to the direction in which the zero on the main scale is moved.
