Ladder Tool

Ladder Tool is PLC Ladder Monitoring and Editing Tool for Koyo Direct Logic and SU-Series PLCs. This app automatically detects the supported PLC in the available network(s) and allows user to select one of the PLC to connect and use.

Note:

For Ethernet connection, make sure the following points:

- Firewall is not blocking the broadcast calls.

- Smartphone and PLC (with ECOM) are on the same network with same subnet mask.

Main Features:

- Supports Ethernet (Wi-Fi) and Serial (via BlueTooth Module) Connectivity.

- Auto Searching of PLC available on Wi-Fi and Bluetooth network(s).

- Read Program from the PLC can be edited and written back to PLC.

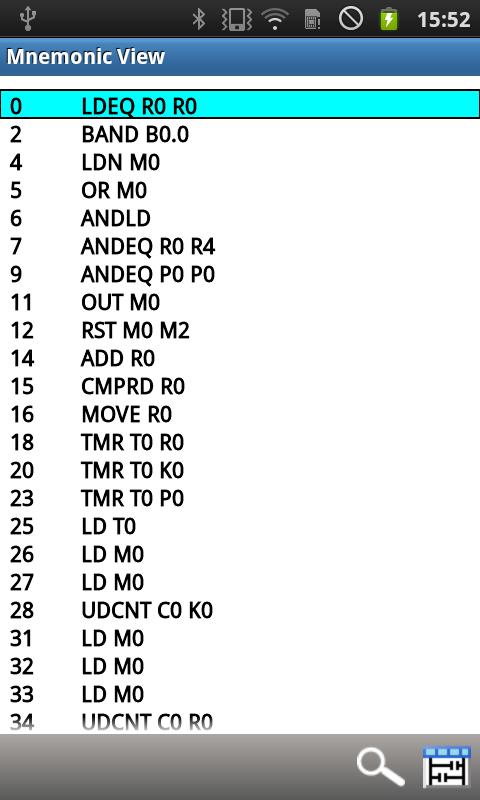

- Supports Ladder View (Editable to some extent) as well as Mnemonic View (non-editable).

- Ladder Edit - Device can be changed by double clicking the instruction

- Ladder Edit - Instruction change only from NO <-> NC

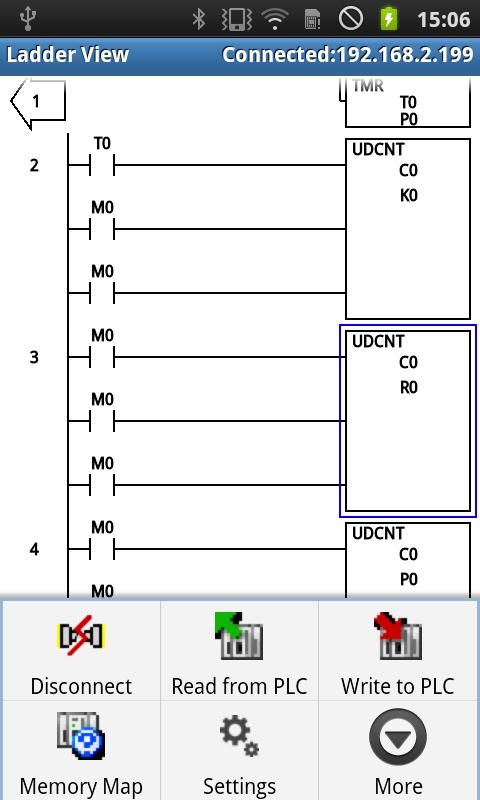

- Status Monitoring in Ladder View.

- Instruction and Device Search.

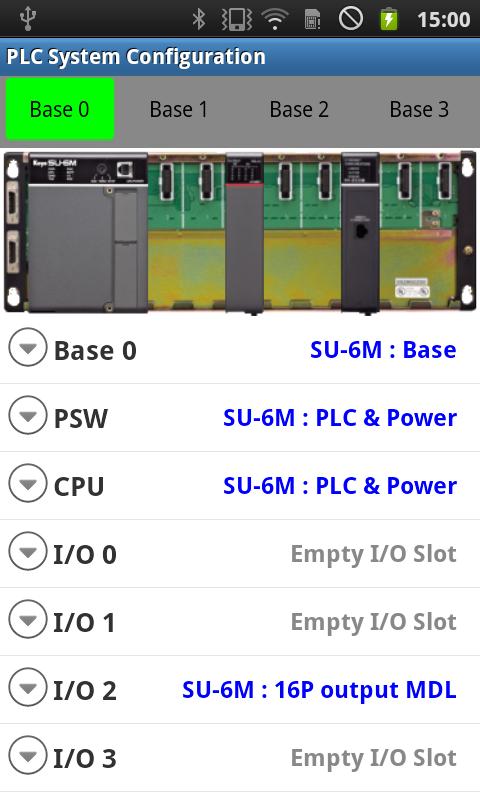

- Display PLC System Configuration.

- PLC Mode Change.

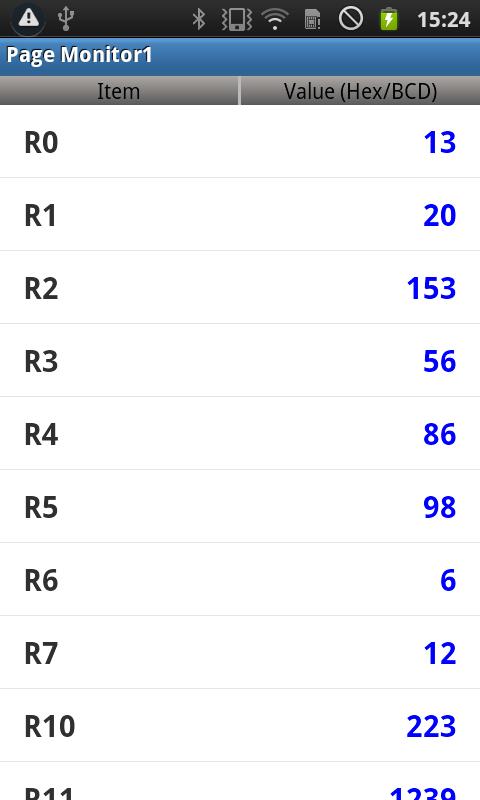

- PLC Data Monitoring. Data View(s) allow to monitor and edit data values.

- Change value to write to device memory data in monitor mode

- System Parameter Initialization

- Auto save feature, for data and page monitor views.

- File Open for data and page monitor views.

- Koyo and ADC memory types display (R<=>V etc.) by selecting the options for settings.

- Ladder Program Open/Save

- PID Monitor

- Various Color Settings to change the display of Ladder, Mnemonic View objects.

- Supports Zoom In/Out.

- English and Japanese Language Support.

- Supports multiple screen layouts (Phones and Tablets).

- Supported PLCs

Direct Logic: DL05, DL06, D2-230, D2-240, D2-250-1, D2-260, D2-260-1, D2-262, D2-263, D2-265, D4-430, D4-440, D4-450, D4-454.

Koyo Kostac S-Series: PZ1, PZ2, PZ3, SJ, SU-5E, SU-5M, SU-6B, SU-6H, SU-6M, SZ-3, SZ-4, SJ-Ether.

Requirements:

- Koyo PLC with ECOM on wifi or with Bluetooth module.
