MCON GPRS

Se utiliza para controlar y supervisar el sistema de la bomba de riego y motores industriales inteligentemente

Unit Description:

"MODEL: MCON"

This device is used to switch ON & OFF the motors through a mobile phone. The application is compatible only for MCON 

Features:

1. Modes: Switch ON/OFF the motor by GPRS,

2. A flexible wiring kit with plug-n-play connectors.

3. It is Suitable for 1/2hp - 25hp both single phase & three phase motors.

4. Control through 10 mobile numbers.

5. It displays the individual phase voltage, current, frequency & power factor.

6. Easily fit for all type of button starters and panelboards.

7. In-built battery backup.

8. Phase failure protection circuit.

9. Phase Imbalance protection circuit.

10. Low voltage protection circuit.

11. External bulb can switch ON/OFF at the programmed time interval.

12. Dry run/Overload preventer.

13. Tank monitoring and control.

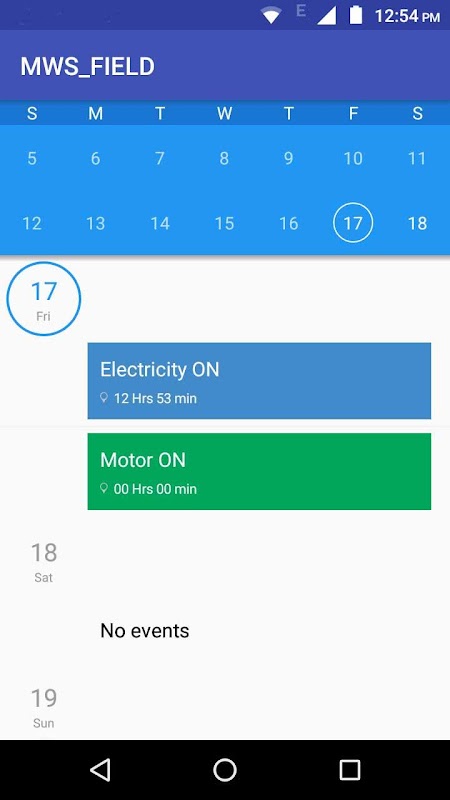

Application Description:

This application can control the device by GPRS.

This application is used to,

1. ON and OFF motor and know the status.

2. To know the Electricity status.

3. Set the timer modes (Auto, ORT, ONT, Cyclic, Schedule Timers).

4. To know the electricity parameters for each phase.

5. Set the Dry run/ Overload amps to the motor.

6. User configuration settings.

7. Log reports

a.Log report for one month.

b.It contains motor on in 3-phase and 2-phase timings.

c.Electricity available time and Motor running time.
