RUIDENG DPS

La aplicación permite controlar la fuente de alimentación RUIDENG (no para probadores USB)

THE APP DOESN'T WORK WITH USB TESTERS (UM25, UM34 etc)

This app allows to connect via Bluetooth or USB to RUIDENG DPS like RuiDeng DPS3005 that are sold with Bluetooth modules

app supports: DPS3005, DPS5005, DPS8005, DPS5015, DPS5020

Features:

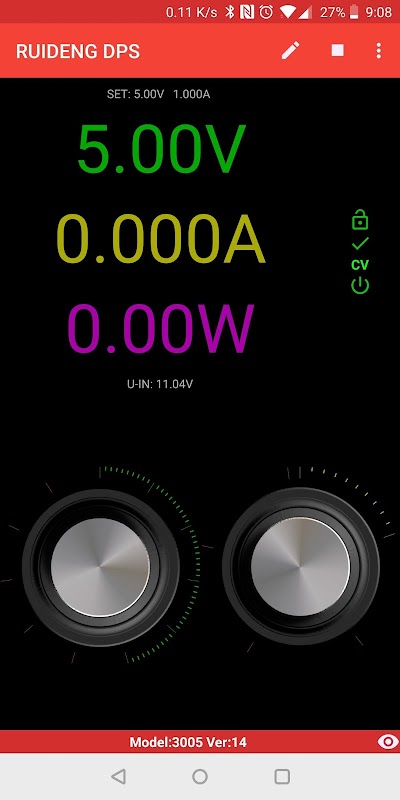

- see current DPS settings and voltages

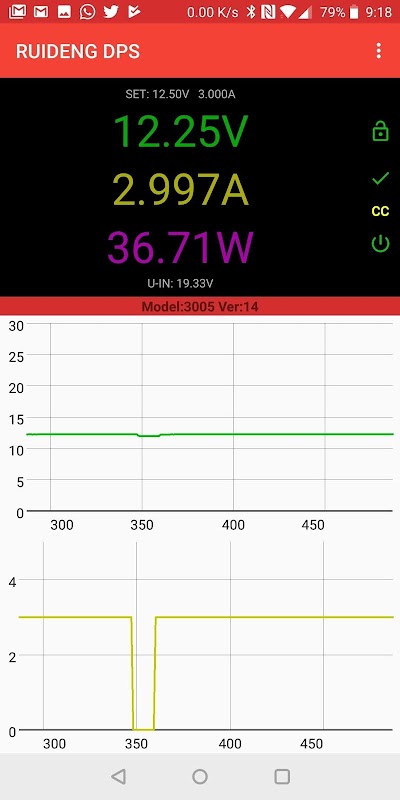

- see voltage and current on a graph

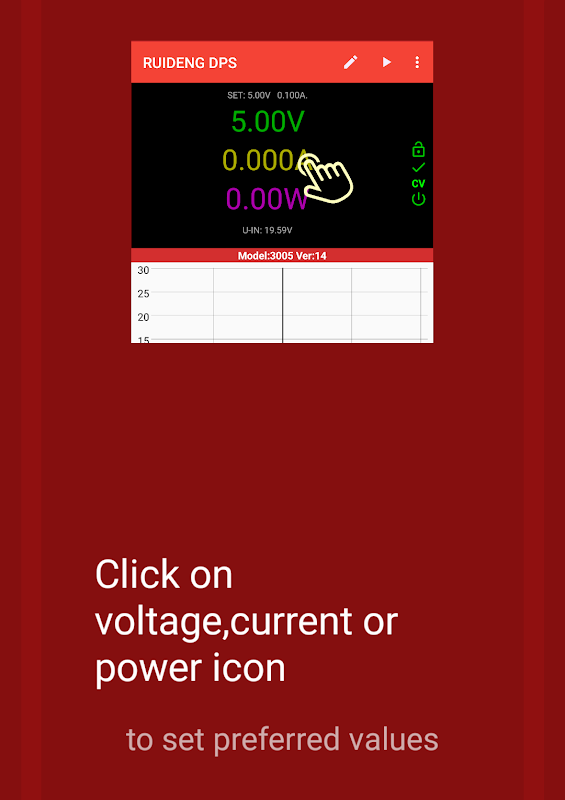

- set current and voltage, turn on/off

- record voltage and current to csv file (available in premium version)

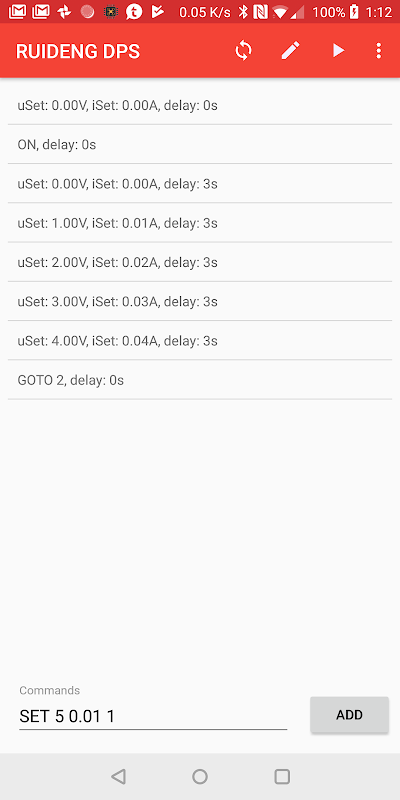

- write short scripts to control the meter (premium)

Example:

SET 0 0 0 // set voltage and current to 0

ON // turn ON

SET 1 0.5 1 // set 1V, 0.5A for 1s

SET 2 1 3 // set 2V, 1A for 3s

ET 3 1 1 // set 3V, 1A for 1s

GOTO 0 //Goto to first line
