AC Series Parallel Circuits

AC Series Parallel Circuits

Nathan Chao
Aug 12, 2017
  • 1.6

    Android OS

À propos de AC Series Parallel Circuits

Etape par étape solution de circuits série parallet ac commune donnée ohms réactance

This app can do series ac circuits, parallel ac ciruits if Rs and Xs are set to 0 and series parallel ac circuits. You put in the circuit resistors and reactances and the app will guide you step by step through combining impedances to solving for all the phasor currents and voltages in the circuit. Save time on homework and get better understanding of the circuit solution process.

For circuits with L, C instead of X, use free series ac circuits app or flexible ac impedance calculator app or phasor calculator app by Nathan Chao to convert L, C to XL, Xc. To get Xs etc just take the difference X = XL – Xc.

The phasor calculator app will make checking the answers yourself much easier.

Voir plus

What's new in the latest 2.5

Last updated on Aug 12, 2017
Minor bug fixes and improvements. Install or update to the newest version to check it out!
Voir plus

Vidéos et captures d'écran

  • AC Series Parallel Circuits Affiche

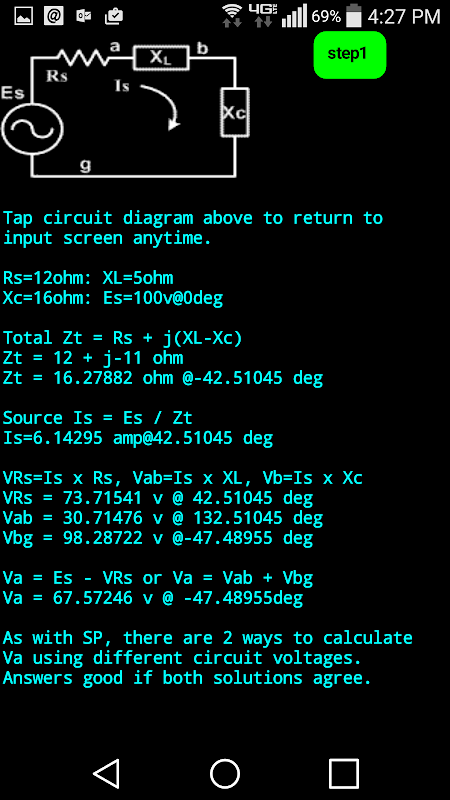

  • AC Series Parallel Circuits capture d'écran 1

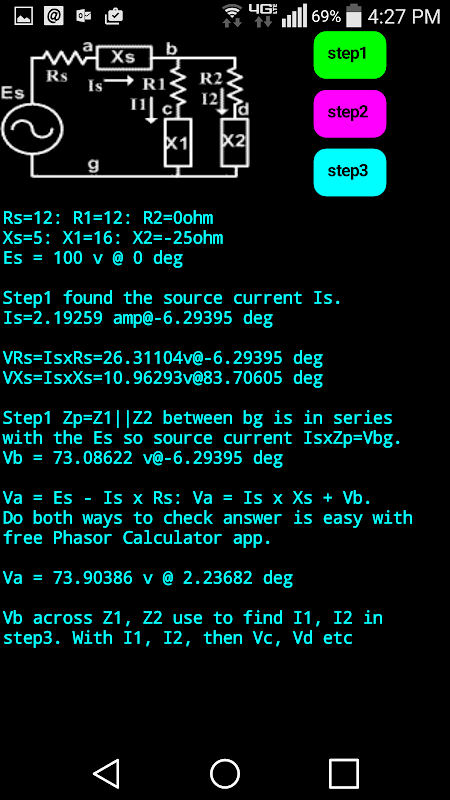

  • AC Series Parallel Circuits capture d'écran 2
