À propos de Telco Color Code

25 paires de code couleur avec le nombre de câbles.

Common 25 copper pair PIC color code.

This app shall be used only as a handy secondary reference tool as we know there are mistakes made in the field and incorrect records that always need to be taken into account. Use of a tone source as a primary identifier will always be more accurate.

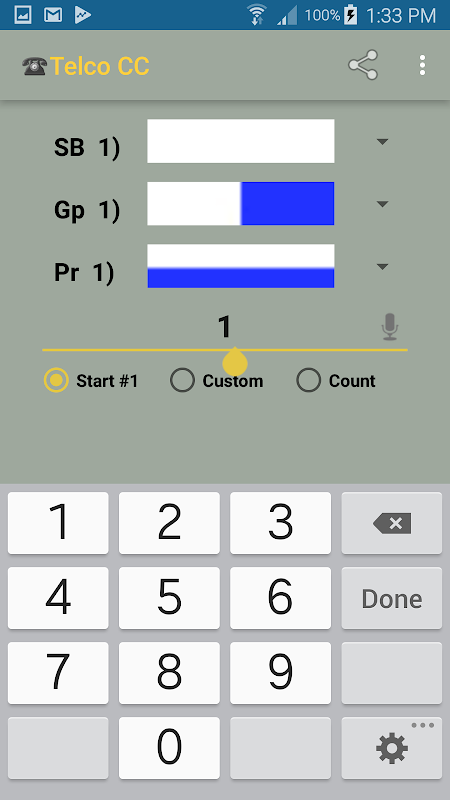

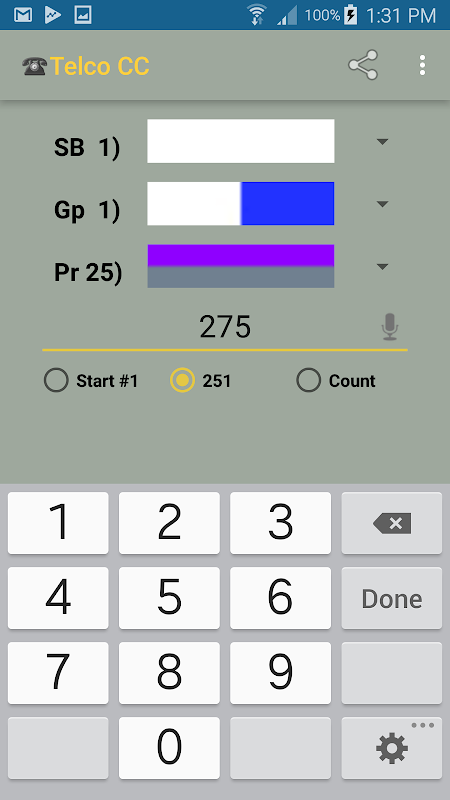

Convert copper pair number to color code or use the reverse color code drop downs chart to get copper pair number all available from the one single screen. The app also allows for a custom starting pair number from that single same screen and is full cable count capable.

New for final release: Complex cable count capability. While in free mode users can enter a cable count of up to 200 pair. When exceeding 200 pair in free mode an 'Upgrade' button will appear to allow users to upgrade the app for full cable count input of up to 6000 pair.

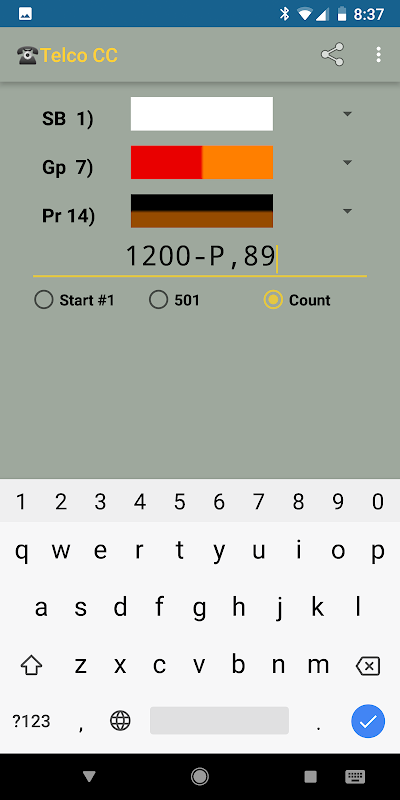

When entering a count the app keeps track of valid count input. If the count is valid you will get a green dot in the bottom right of the input box. If the count is invalid there will be a red dot. When you enter a line of count be sure to notice its color and make corrections as needed before continuing.

While 'Count' mode is selected the input boxes allow for double space auto punctuation. So, after entering a cable name tap the spacebar twice for a comma, Then after the low count tap the spacebar again 2x for a dash. Finally after entering the high count, tap 2x more to start a new line. If the line count only has a single pair tapping the spacebar 4x will automatically bring you to a new line for input and removes the dash.

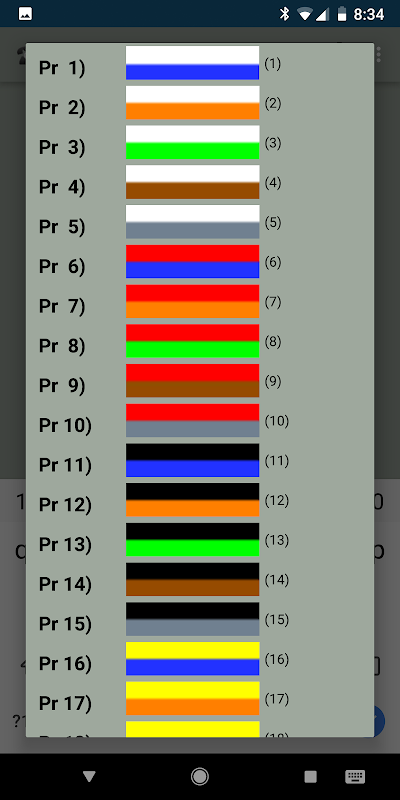

Color code~

Tip = White, Red, Black, Yellow, Violet

Ring = Blue, Orange, Green, Brown, Slate

For further details of my other Telecom apps including Fiber optic color codes visit:

ghtapps.com

Voir plus

What's new in the latest 1.3

Last updated on 2018-03-03

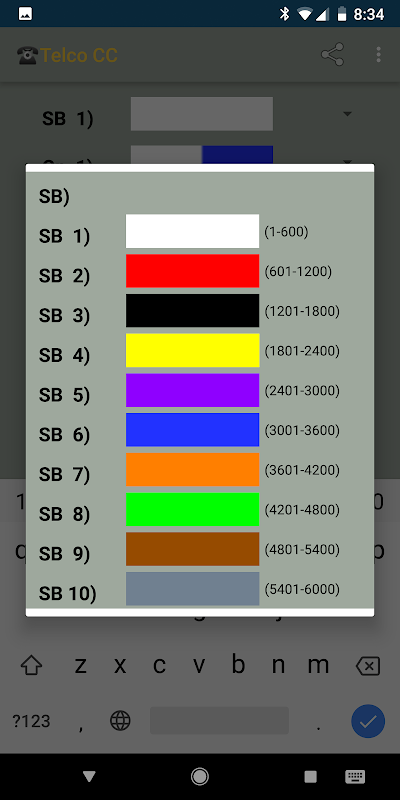

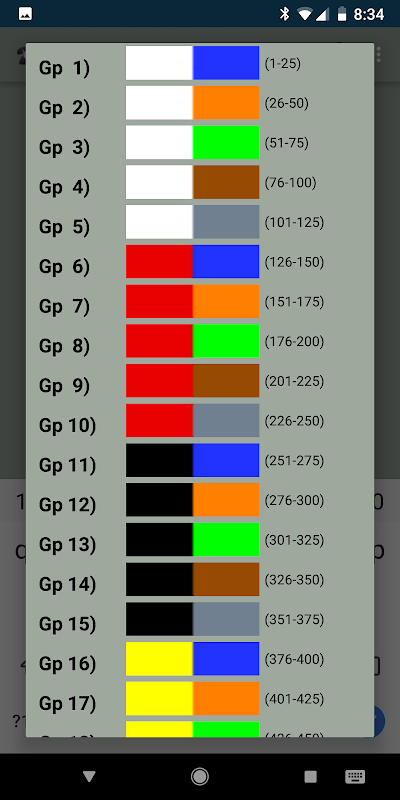

Added reverse pair# drill-down (by sheath count) to the right of color code in dropdowns. First select the Super Binder 600 reverse pair range, then select the Group 25 reverse pair range and finally select your reverse pair#. (Pair and ranges update themselves as you drill-down your reverse pair#)

Added the option for users who use a colon as a cable count separator (i.e. 1:1-100) Go to Menu>Settings and select a cable count separator of your choice. Default separator is a comma (i.e. 1,1-100)
Voir plus

Vidéos et captures d'écran

  • Telco Color Code Affiche
  • Telco Color Code capture d'écran 1
  • Telco Color Code capture d'écran 2
  • Telco Color Code capture d'écran 3
  • Telco Color Code capture d'écran 4
  • Telco Color Code capture d'écran 5
  • Telco Color Code capture d'écran 6
