WIFI CONTROLLED TIMER RELAY

The WiFi control relay boards have a networkable controller that allows for remote set-up, control and monitoring of the circuit breaker panel. This makes it easy to create lighting / air-conditioned zones, establish on/off timer schedules. Once the relay boards board is power on and network is ready, the on-board relays module can be controlled via any mobile devices or web browser anywhere anytime. Convenient cable network , and wireless WIFI network can be accessed. So anyone on the network with access to a browser can set up, control, and monitor their customized design power control panel.

Demo Video :

please visit http://youtu.be/pHPb5a3-3Y8

Brief description:

Operates over Wi-Fi internet , turn appliances on/off from anywhere, anytime;

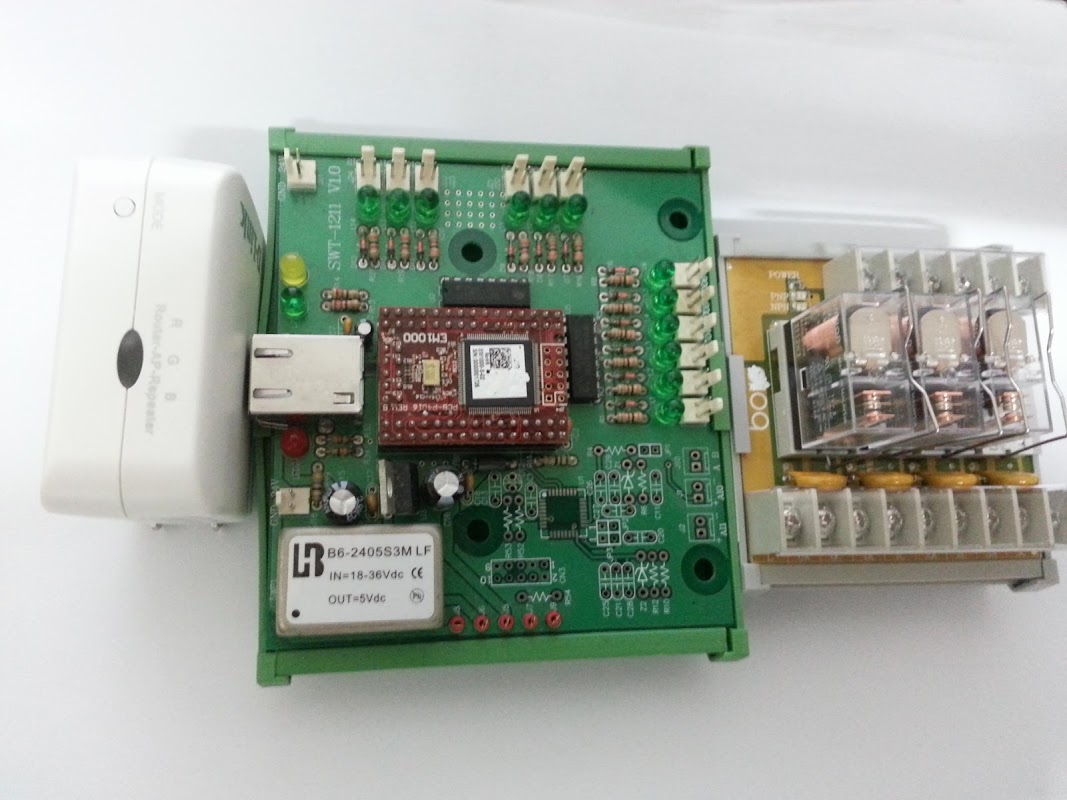

Wifi control relays board has following features:

(1) Can be controlled through a smart phone anywhere in the world; The control panel based on the standard TCP / IP and HTTP protocols.

(2) Free apps available on Google store.

(3)Instant on/off control with all/on, all/off, and individual operation.

(4) Can arbitrarily set the time and multiple timing tasks;

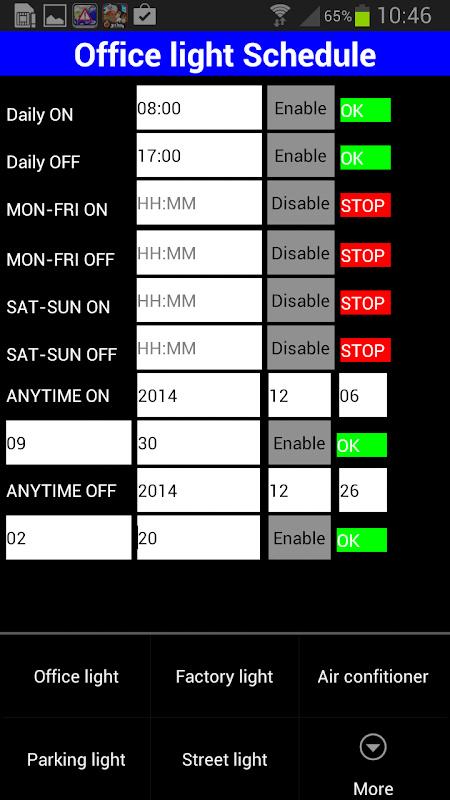

(5) Time schedule control such as daily, Mon.-Fri.,Sat.-Sun. ..up to 28 selected timer modes.

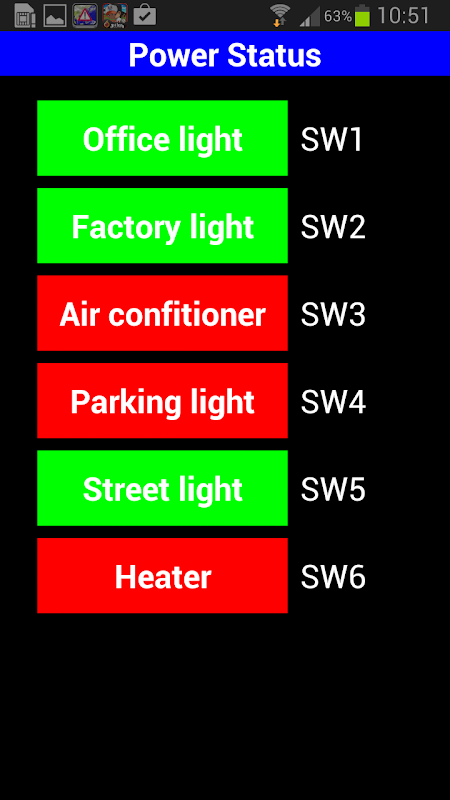

(5)Remote on/off status monitoring for relay.

(6)Control up to 12 relays with a single board.

(7) Support DHCP IP search.

(7)Relay contact rating: OMRON, 16A, 250VAC.
