ISO Fits

Ini mencakup beberapa fitur berikut:

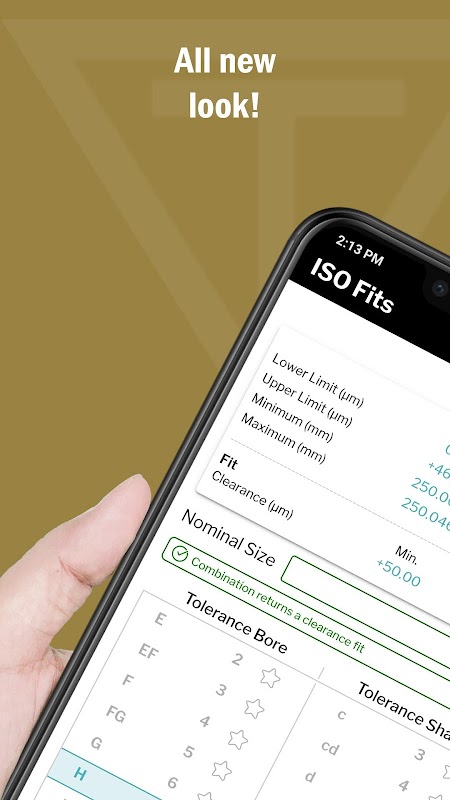

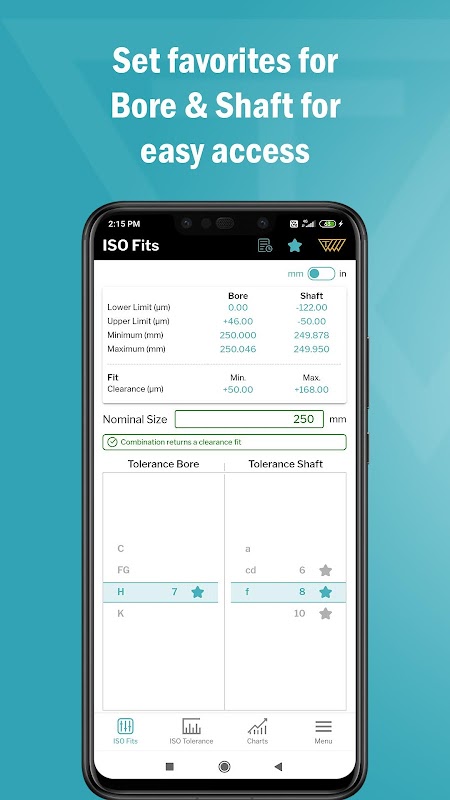

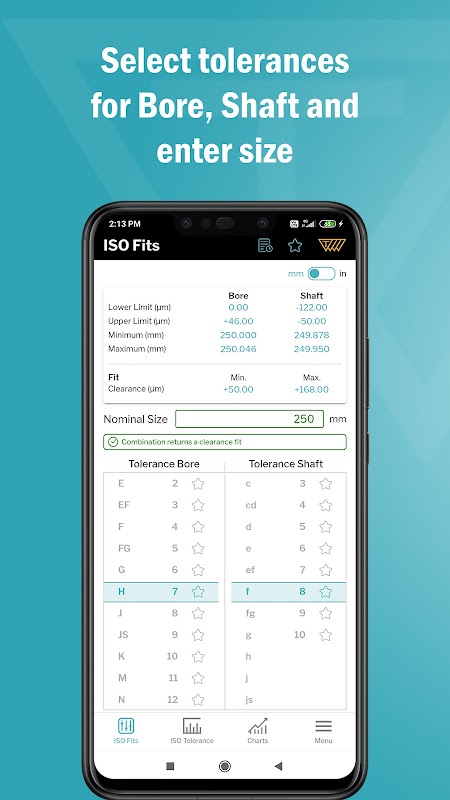

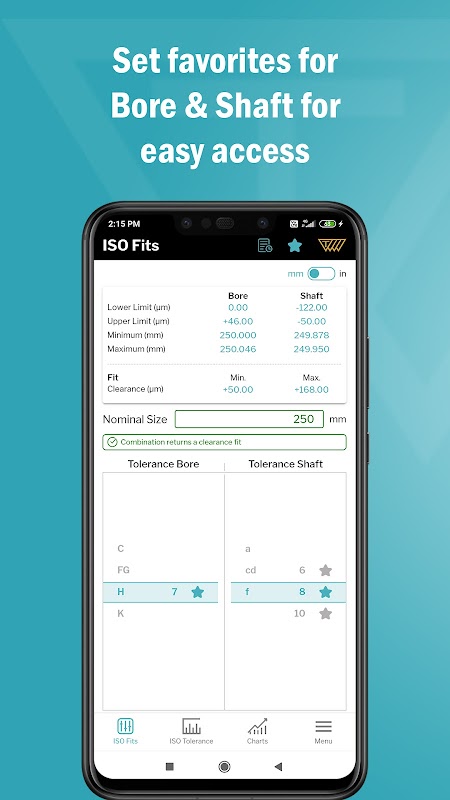

- Perhitungan Fits: Setelah memasukkan diameter nominal (baik bore atau poros), pengguna memilih kelas toleransi mereka untuk bore dan poros. Aplikasi kemudian memberikan definisi ISO cocok lengkap dengan semua nilai yang relevan.

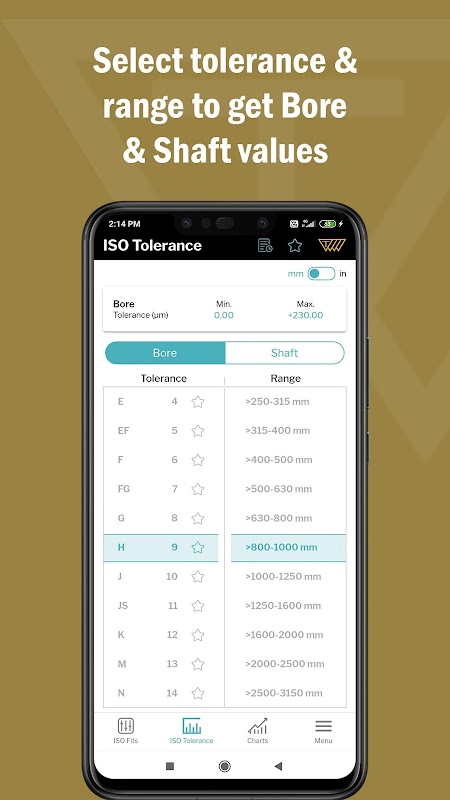

- Toleransi: Menunjukkan toleransi untuk kelas toleransi ISO yang paling umum digunakan.

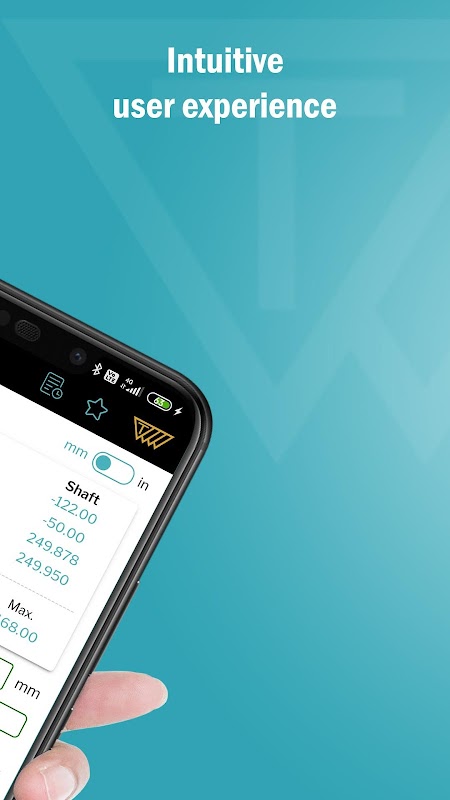

- beralih antara versi metrik dan inci.

- Grafik: Menunjukkan kelas toleransi ISO paling umum dalam diagram.

- Video: Menampilkan video youtube TSS terbaru yang diperbarui secara otomatis.

Hasil aplikasi ini didasarkan pada DIN ISO 286

Dimensi nominal:

1-3150mm

toleransi berikut termasuk:

Poros: a9, a10, a11, a12, a13, b8, b9, b10, b11, b12, b13, c8, c9, c10, c11, c12, cd5, cd6, cd7, cd8, cd9, cd9, cd10, d5, d6, d7, d8, d9, d10, d11, d12, d13, e5, e7, e7, e8, e9, ef3, ef4, ef5, ef6, ef7, ef8, ef9, ef10, f3, f4, f5, f5, f6, f7, f8, f9, f10, fg3, fg4, fg5, fg6, fg7, fg8, fg9, fg10, g3, g4, g5, g6, g7, g8, g9, g10, h1, h2, h3, h4, h5, h6, h7, h8, h9, h10, h11, h12, h13, h14, h15, h16, h17, h18, js1, js2, js3, js4, js5, js6, js7, js8, js9, js10, js11, js12, js13, js14, js15, js16, js17, js18, j5, j6, j7, j8, k3, k4, k5, k6, k7, k8, k9, k10, k11, k12, k13, m3, m4, m5, m6, m7, m8, m9, n3, n4, n5, n6, n7, n8, n9, p3, p4, p5, p6, p7, p8, p9, p10, r3, r4, r5, r5, r7, r7, r8, r9, r10, s3, s4, s5, s6, s7, s8, s9, s10, t5, t6, t7, t8, u5, u6, u7, u8, u9, v5, v6, v7, v8, x8, x6, x7, x8, x9, x10, y6, y7, y8, y9, y10, z6, z7, z8, z9, z10, z11, za6, za7, za8, za9, za10, za11, zb7, zb8, zb9, zb10, zb11, zc7, zc8, zc9, zc10, zc11

Bore: A9, A10, A11, A12, A13, B8, B9, B10, B11, B12, B13, C8, C9, C10, C11, C12, C13, CD6, CD7, CD8, CD9, CD10, D6, D7, D8, D9, D10, D11, D12, D13, E5, E6, E7, E8, E9, E10, EF3, EF4, EF5, EF6, EF7, EF8, EF9, EF10, F3, F4, F5, F6, F7, F8, F9, F10, FG3, FG4, FG5, FG6, FG7, FG8, FG9, FG10, G3, G4, G5, G6, G7, G8, G9, G10, H1, H2, H3, H4, H5, H6, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, JS1, JS2, JS3, JS4, JS5, JS6, JS7, JS8, JS9, JS10, JS11, JS12, JS12, JS13, JS14, JS15, JS16, JS17, JS18, J6, J7, J8, J9, K3, K4, K5, K6, K7, K8, K9, K10, M3, M4, M5, M6, M6, M7, M8, M9, M9, M10, N3, N4, N5, N6, N7, N8, N9, N10, N11, P3, P4, P5, P6, P7, P8, P9, P10, R3, R4, R5, R5, R6, R7, R8, R8, R9, R10, S3, S4, S5, S6, S7, S8, S9, S10, T5, T6, T7, T8, U5, U6, U7, U8, U9, U10, V5, V6, V7, V8, X8, X5, X6, X7, X8, X9, X10, Y6, Y7, Y8, Y9, Y10, Z6, Z7, Z8, Z10, Z11, ZA6, ZA7, ZA8, ZA9, ZA10, ZA11, ZB7, ZB8, ZB9, ZB10, ZB11, ZC7, ZC8, ZC9, ZC10, ZC11
