Smart Home Security Solution with automation.

The application AlamMDevice is an agnostic software which combines input and output device on the network into an automation system. The software is running on android Smartphone and supports all versions from API 2.3 Gingerbread. It does not require a SIM card to be installed in the phone. With a SIM card additional feature are available such as automatic text and phone call, switch ON/OFF the alarm remotely (text and phone call are not available on Play Store since Google refuse it, more info on my website).

It will detect automatically ONVIF device such as camera on the local network. It has support for modern Ethernet IO board manufacturer through Restful communication and will configure automatically Modbus TCP devices. Then it can easily add the GSM capability (phone and text) in order to create an autonomous alarm coupled with phone internal sensor. Any device connected to the AlarmM application can trigger output to another device of different brand and on different network.

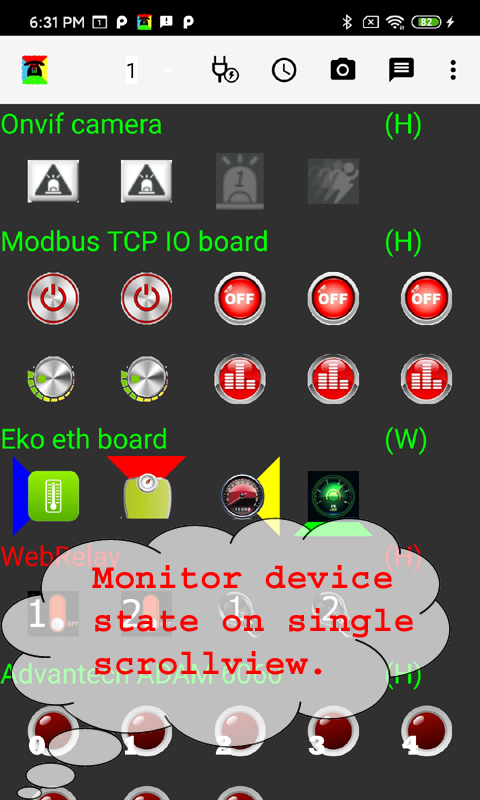

All the input and output of devices are gathered onto a simple HMI pages. For example a button “PANIC” could be configured to send a text message when it is pressed, or it can be used as a baby alarm with sound detection. The status and profiles (green, yellow or red and blue) of all alarm can be quickly monitored on a single interface. Each alarm is independently setup. Four categories menu are used to program individually the behavior of an alarm:

1. Messaging Profile (green color).

This setup defines the kind of message that the alarm will send. The current possibilities are logging, vibrate, ringtone, snapshot, live view, email and text messages.

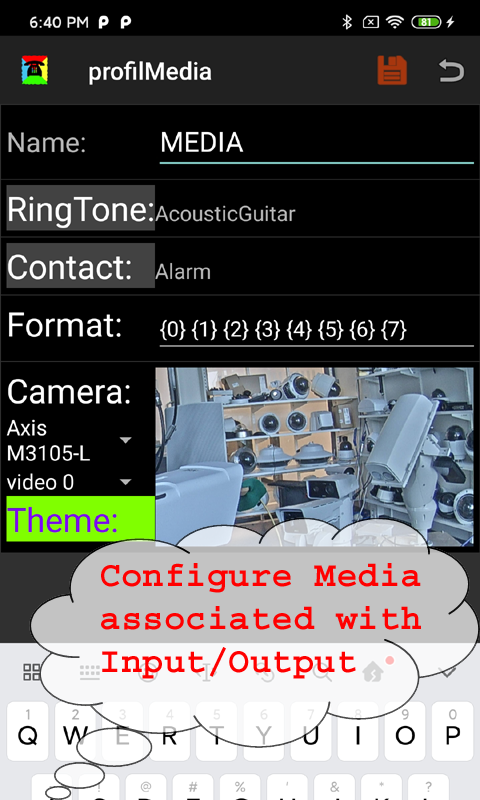

2. Media Profile (yellow color).

This setup defines recipient format, color, sound and image used to send a message.

3. Moment Profile (red color).

This setup defines when the alarm is turn on and off. The android native calendar used for this purpose.

The alarm is able to react on the motion detection of some IP camera. It supports the ONVIF cameras.

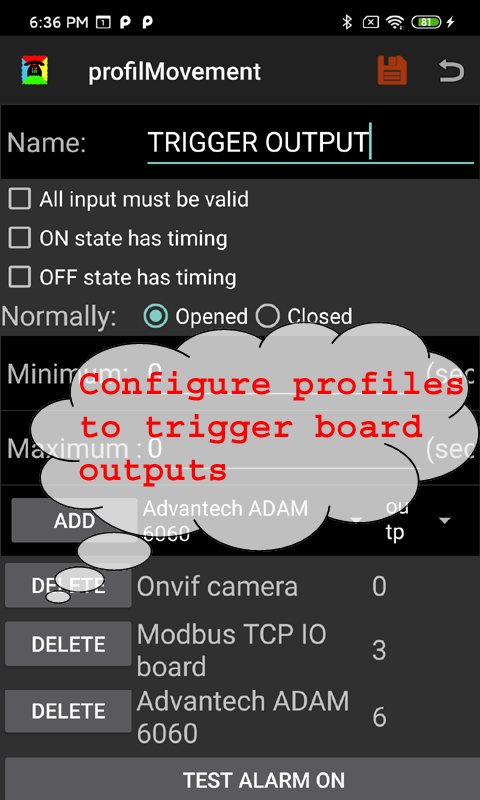

4. Movement Profile (blue color)

Activate automatically an analogue or digital output of an IO board. It can be a light or a siren for example.

Product features:

✅ Detect network SSID Location in the background.

✅ Read Input and write output to IO board.

✅ Automatic detection and configuration of ONVIF cameras.

✅ Automatic settings of Modbus TCP devices.

✅ Support modern Ethernet IO Modules.

✅ Automatic sending of SMS, Email, phone call when an alarm is triggered.

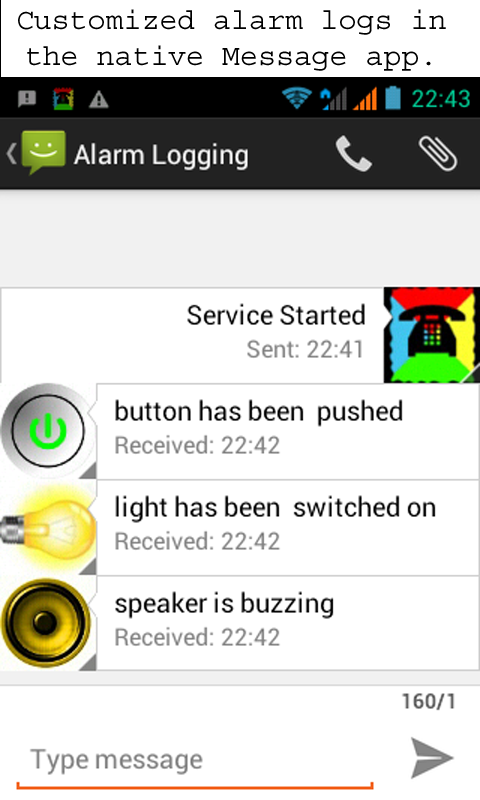

✅ Loggings are written inside the native Messaging application.

✅ Take picture from IP camera (see compatible device) and from phone device.

✅ Send email with attached photo (need a POP account such as Gmail).

✅ Send SMS or call to a designed a contact from the native Contact application.

✅ Alarm activation can synchronize with Event of the native Calendar application.

✅ Administrator of the Alarm may be chosen from the native Contact application.

✅ Each alarm can have a different recipient chosen from the native Contact application.

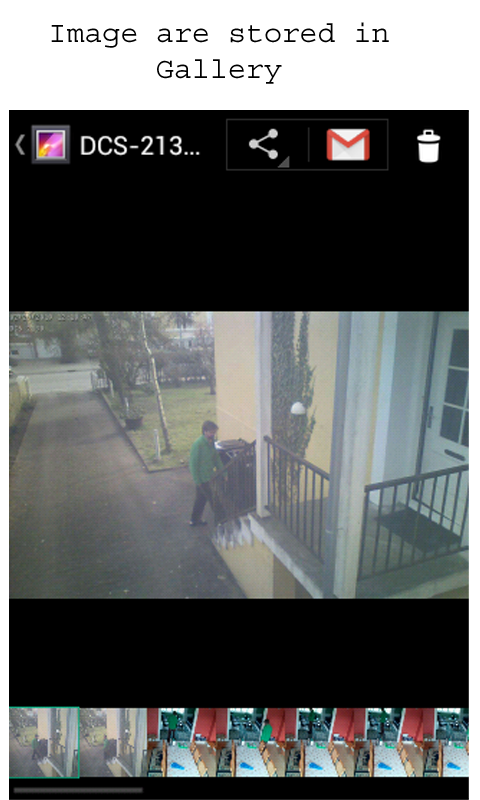

✅ Acquired pictures are store inside the native Gallery application.
