PAK capture

PAK capture is an extension of the well-established PAK product family designed for all kinds of dynamic data acquisition and NVH analysis.

The PAK MKII data acquisition unit is the first solution with embedded smart and intelligent services. PAK capture offers a link to the live sensor signals and provides live controls for sensor or device settings.

PAK capture ensures sustainable and traceable measurements by utilizing the embedded services on the PAK MKII. Benefit from effortless data acquisition with the same well-known PAK quality.

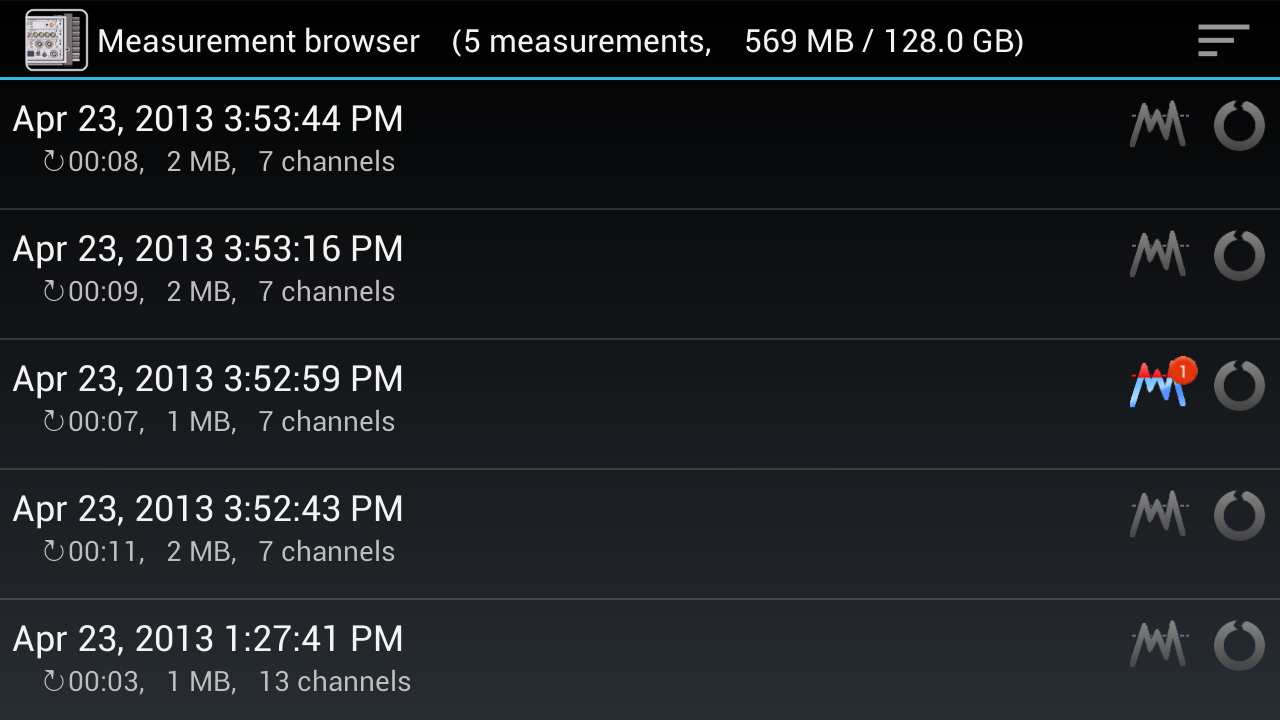

Browse quickly through your recorded data and review your measurements. The system automatically provides the necessary quality parameters and compiles information for an efficient overview.

Once your acquisition is completed, just download your recorded data and your engineering partners can easily interact further as the data is based on ASAM ODS NVH.

Try it out and enjoy a unique new way of working.

Key features at a glance:

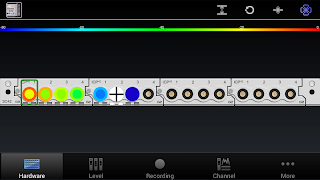

• Overview of PAK MKII configuration

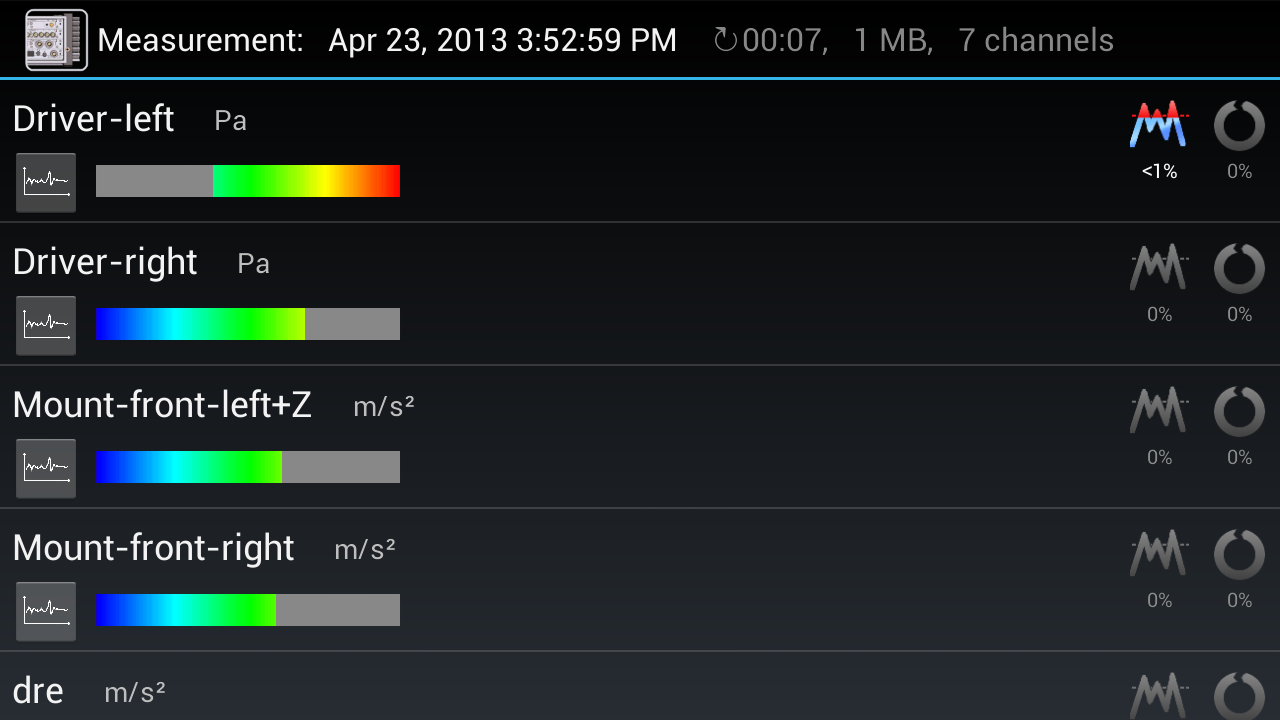

• Online level display showing overloads, open/short circuits

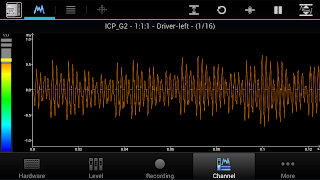

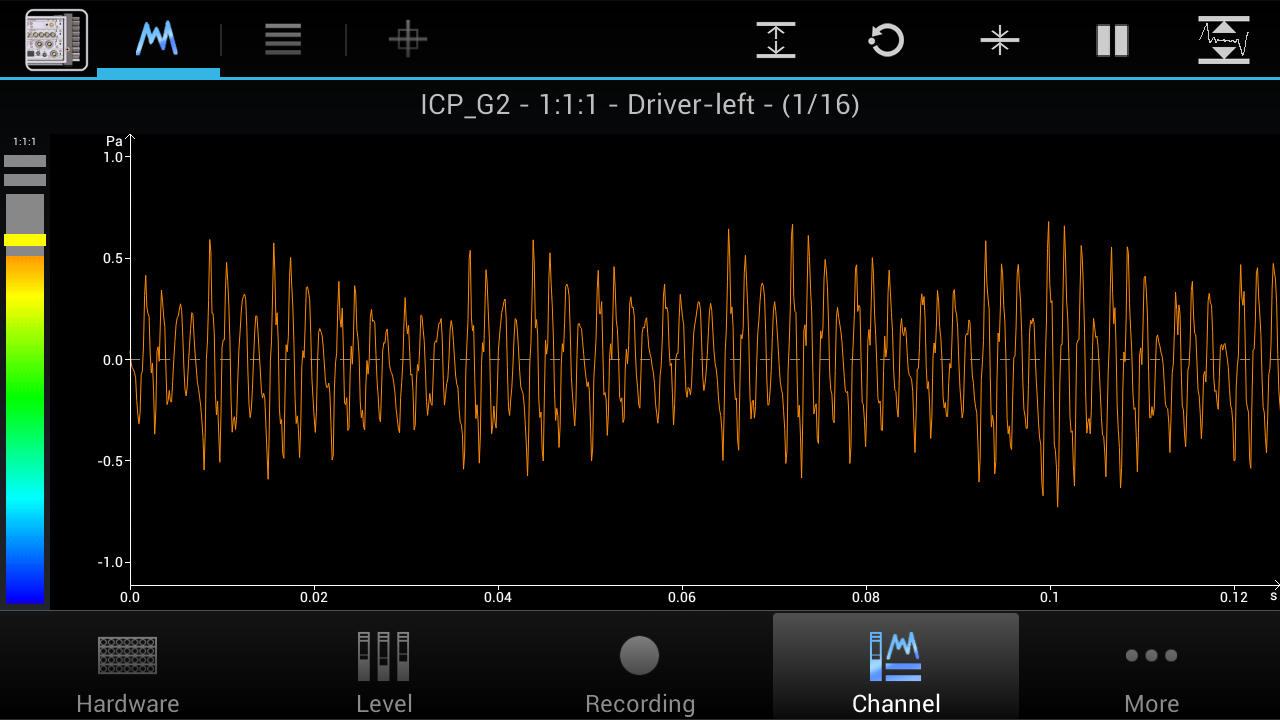

• Online time history

• Configuration of single channels addressing dedicated tasks

• Audio playback of stored recordings

• File format on the PAK MKII: ASAM ODS NVH ATF/XML

Benefit today from the continual further development of this particular app.

Prerequisites:

PAK capture requires a PAK MKII data acquisition system equipped with PAK live and PAK recorder.
