Informazioni su View Sensors Graphically - Free/No Ads

Dati dei sensori incorporati sono viste e catturate su un registratore a nastro virtuale-chart.

Manual in PDF format:

http://withstrings.com/withstrings_stripchart_manual.pdf

Note: Performance of this application is device dependent, ie; newer speedier devices do better.

1. Description

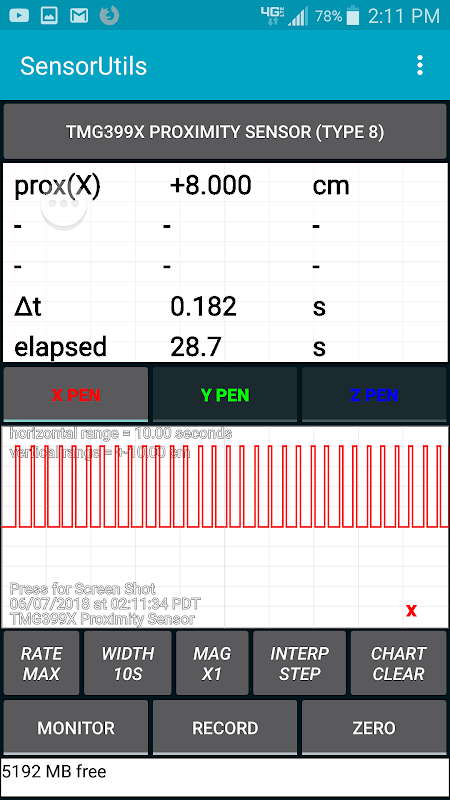

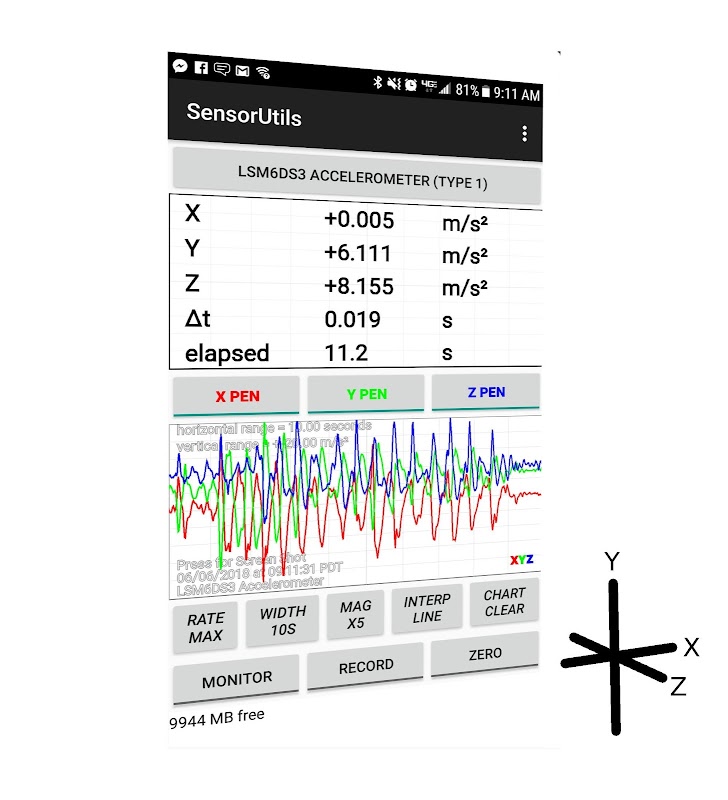

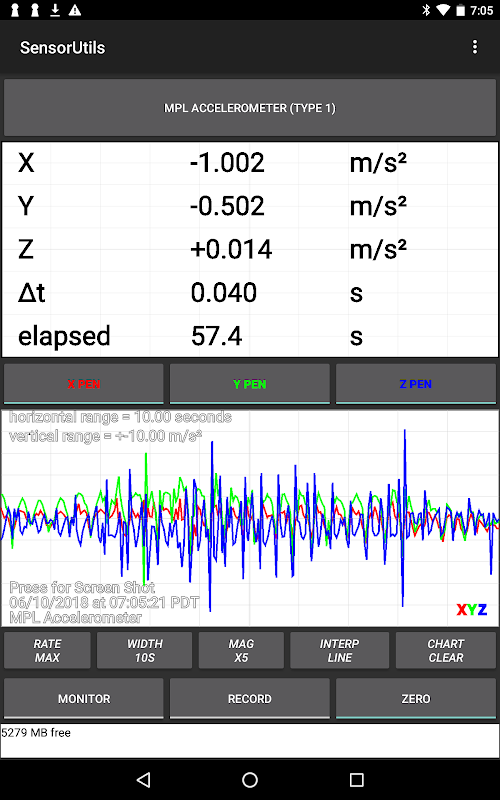

SensorUtils is a utility program built around the notion of a strip-chart recorder. Inputs to the recorder are sensors built into the Android device. The recorder displays graphically the sensor readings on a strip-chart like graph. There are three channels on the recorder that can used for each sensor. The strip-chart graph can be saved as a screen shot (device app) or data collected can be saved to a file.

NOTE: The screen must be active for the application to collect data. Once the screen is turned off or another app is run, the data collection will stop.

2. Operation

Launch the application. SensorUtils will query your device for available sensors. One sensor will be shown on the selection button. Each time the button is clicked another sensor is shown. The button will eventually return to the first sensor displayed. Typical of physical measurements available include acceleration, magnetic field, orientation, proximity, light intensity, and barometric pressure.

Note that the data is returned by the device to the SensorUtils application asynchronously. The device will return the data at the rate that it sees fit in order to let other applications perform properly. SensorUtils may be interrupted by an incoming call or an user action -- if the SensorUtils application is off the screen any recording in progress in be saved and the application will release any requests for sensor data. Users also need to consider that other applications make use of the sensors. The effect of this is that the rate that SensorUtils receives updates decreases, perhaps significantly.

Please read the Android developer document “Sensors Overview” for more information.

3. Characteristics

Operating System: Android: Minimum API 22, Lollipop

Permissions: None

Acquisition Rate: Dependent on device.

Resolution: Sensor Dependent

Settings:

Sensor: Selects sensors available on device

Rate: Max Acquisition Rate, Mask (0.1 to 10 seconds – one shot per interval

Interpolation: Line or Step

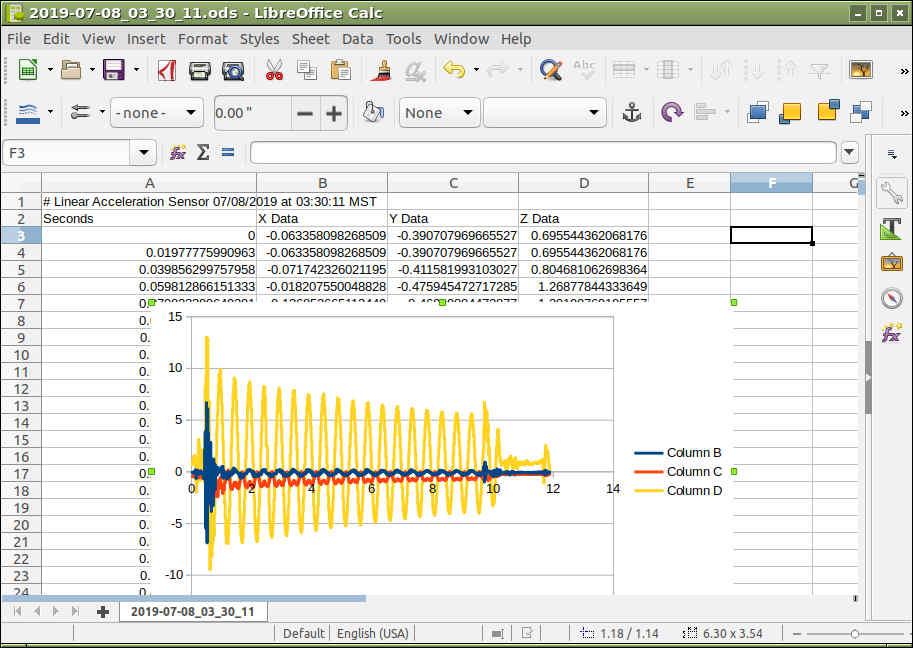

File Format: CSV (the data is not interpolated)

Chart Horizontal Range: 1 to 60 seconds:

Chart Vertical Magnification: Sensor Range (X1) to X100

Zero: removes offset at time pressed (in Monitor mode)

Clear: clears chart.

Record: Writes data to a file (monitor mode). Columns are based on Pen selection.

X Pen, Y Pen, Z Pen: provides pen up or pen down like functions.

Identity: sin(u)sin(v) = 1/2[sin(u-v) + sin(u+v)]

Graphics Design: N. Dynamite

Inspiration: Fr. McKenzie

© 2019 Todd Merport

Mostra Altro

What's new in the latest 1.13

Last updated on 2019-07-09

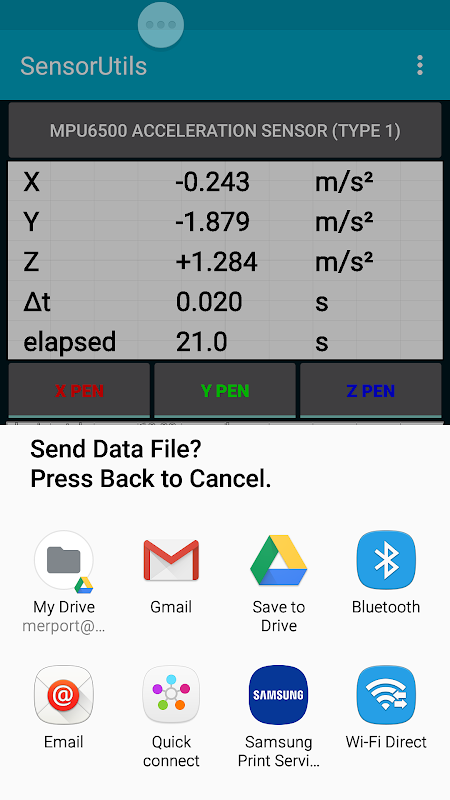

Last recorded file can be uploaded to Drive or sent via email.
