ZFlasher STM32

ZFlasher STM32 è un programma per flashare microcontrollori ARM, RISC-V e STM8.

Il dispositivo deve supportare USB Host (OTG), altrimenti il ​​programma non funzionerà.

Serie STM32 supportate:

* STM32F03x / F05x / F04x / F07x / F09x

* STM32F1 LD/MD/HD/XLD/CL/MD VL/HD VL

* STM32F2xx

* STM32F30x / F318 / F328 / F334 / F358 / F37x / F398

* STM32F401 / F4x5 / F4x7 / F41x / F42x / F43x / F446 / F46x / F47x

* STM32F72x / F73x / F74x / F75x / F76x / F77x

* STM32L0xx cat. 1 / 2 / 3 / 5

* STM32L1xx cat. 1 / 2 / 3 / 4 / 5

* STM32L41x / L42x / L43x / L44x / L45x / L46x / L47x / L48x / L49x / L4Ax / L4Px / L4Rx / L4Sx / L4Qx

* STM32L55x / L56x

* STM32U031xx / U073xx / 083xx

* STM32U37x / U38x

* STM32U53x / U54x / U57x / U58x / U59x / U5Ax / U5Fx / U5Gx

* STM32G03x / G04x / G05x / G06x / G07x / G08x / G0Bx / G0Cx

* STM32G43x / G44x / G47x / G48x / G49x / G4Ax

* STM32H503 / H523 / H533 / H562 / H563 / H573

* STM32H72x / H73x / H74x / H75x / H7Ax / H7Bx / H7Rx / H7Sx

* STM32WB0xx / WB1x / WB3x / WB5x / WBA5x

* STM32WL33x / WL5x / WLEx

* STM32C011 / C031 / C051 / C071 / C09x

Serie GD32 supportata:

* GD32F10x / F1x0 / F20x / F30x / F3x0 / F4xx / F5xx / FFPR

* GD32E10x / E11x / E23x / E50x

* GD32C10x / C11x

* GD32A10x / A49x / A50x

* GD32H7x7 / H759

* GD32L23x

Serie AT32 supportate:

* AT32F4xx

* AT32L021

Serie CH32 supportate:

* CH32V00x / V103 / V20x / V30x / V31x

* CH32F103 / F20x

* CH32X03x

* CH32L103

* CH57x / CH641

Serie MM32 supportate:

* MM32F103

* MM32F52x / F5x3

* MM32H54x

Serie CW32 supportate:

* CW32F002 / F003 / F020 / F030

* CW32L031 / L051 / L083

* CW32R031

* CW32W031

Serie HC32 supportate:

* HC32F002 / F003 / F005 / F030 / F052 / F072 / F19x / F17x / F420

* HC32L07x / L110 / L13x / L16x / L18x / L17x / L19x

* HC32A136

Serie N32 supportate:

* N32G003 / G03x / G43x / G45x / G4FR

* N32L40x / L43x

* N32A455

* N32WB452

Serie LPC supportate:

* LPC8xx

* LPC11xx / LPC12xx / LPC13xx / LPC15xx / LPC17xx

* LPC51U68 / LPC54xxx

Serie Nordic supportate:

* nRF51 / 52

Serie Renesas supportate:

* RA0E1

* RA2A1 / A2 / E1 / E2 / L1

* RA4M1 / M2 / M3 / E1 / E2 / T1 / W1

* RA6M1 / M2 / M3 / M4 / M5 / E1 / E2 / T1 / T2 / T3

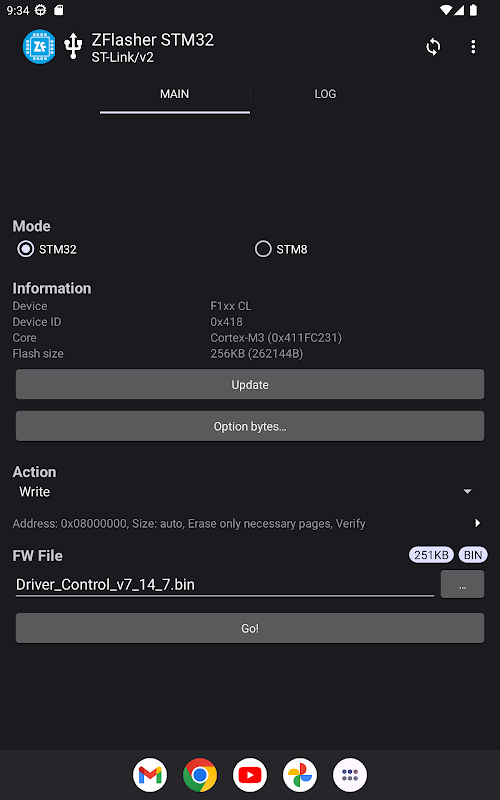

Serie STM8 supportate:

* STM8S

* STM8L

* STM8AF

* STM8AL

Il programma funziona con:

* ST-LINK v1/v2/v3

* J-Link

* CMSIS-DAP

* WCH-Link

* Bootloader DFU

* Bootloader WCHISP

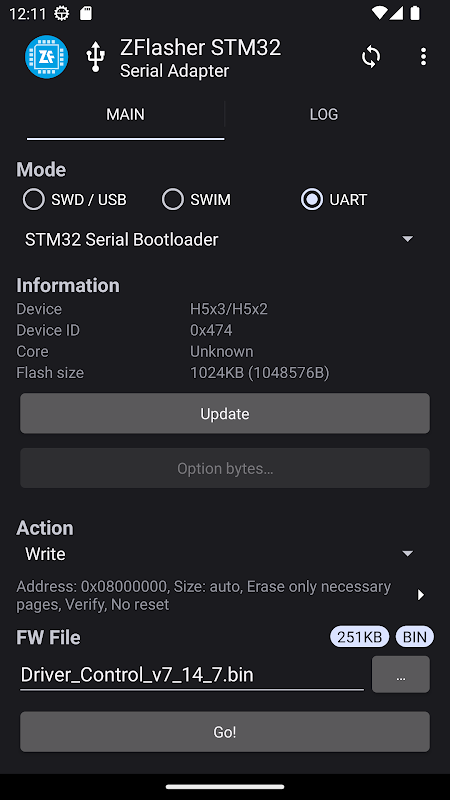

* Bootloader seriale STM32

* Bootloader seriale Renesas RA

P.S. Sarò lieto di ricevere commenti e suggerimenti.
