ISO Fits

Ia merangkumi ciri-ciri berikut:

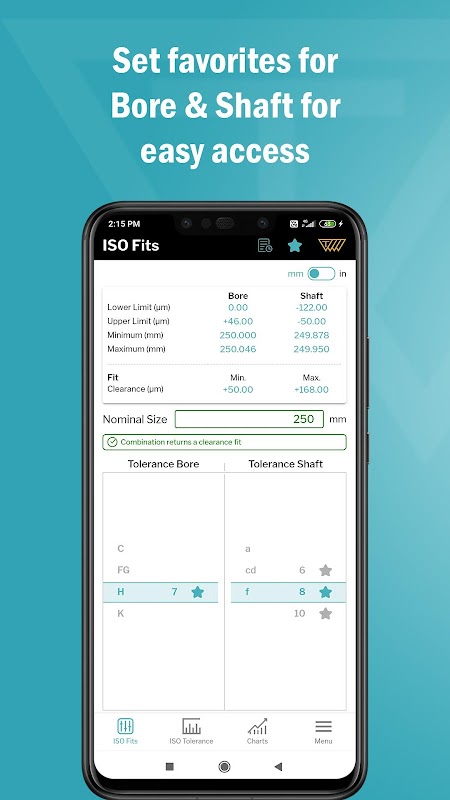

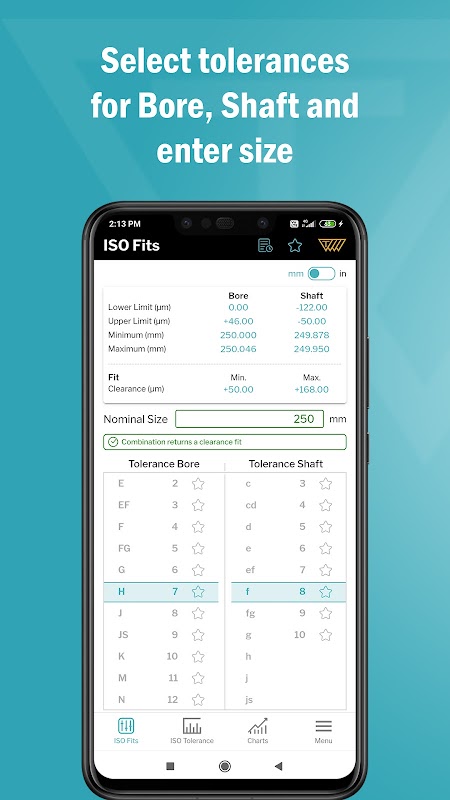

- Pengiraan yang sesuai: Setelah memasuki diameter nominal (sama ada bore atau poros), pengguna memilih kelas toleransi mereka untuk bore dan poros. Aplikasi ini kemudian memberikan definisi sesuai ISO lengkap dengan semua nilai yang berkaitan.

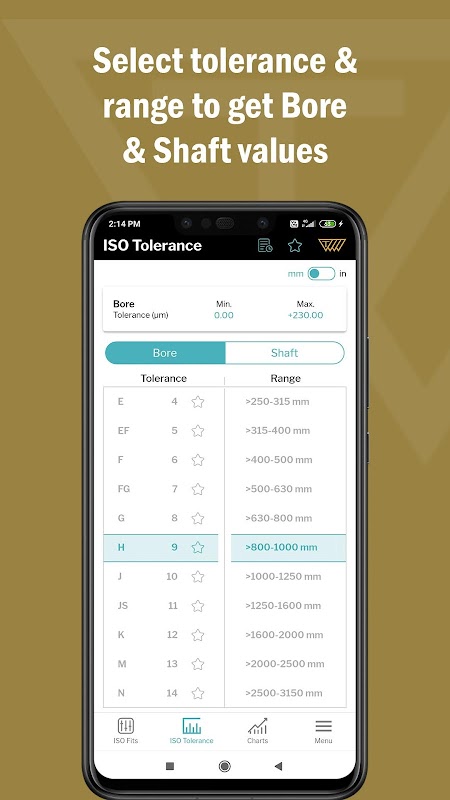

- Toleransi: Menunjukkan toleransi untuk kelas toleransi ISO yang paling biasa digunakan.

- beralih antara metrik dan versi inci.

- Carta: Menunjukkan kelas toleransi ISO yang paling biasa dalam rajah.

- Video: Menampilkan video youtube TSS terkini yang dikemas kini secara automatik.

Hasil aplikasi ini berdasarkan DIN ISO 286

Dimensi nominal:

1-3150mm

toleransi berikut termasuk:

Poros: a9, a10, a11, a12, a13, b8, b9, b10, b11, b12, b13, c8, c9, c10, c11, c12, cd5, cd6, cd7, cd8, cd9, cd10, d5, d6, d7, d8, d9, d10, d11, d12, d13, e5, e6, e7, e8, e9, e10, ef3, ef4, ef5, ef6, ef7, ef8, ef9, ef10, f3, f4, f5, f6, f7, f8, f9, f10, fg3, fg4, fg5, fg6, fg7, fg8, fg9, fg10, g3, g4, g5, g6, g7, g8, g9, g10, h1, h2, h3, h4, h5, h6, h7, h8, h9, h10, h11, h12, h13, h14, h15, h16, h17, h18, js1, js2, js3, js4, js5, js6, js7, js8, js9, js10, js11, js12, js13, js14, js15, js16, js17, js18, j5, j6, j7, j8, k3, k4, k5, k6, k7, k8, k9, k10, k11, k12, k13, m3, m4, m5, m6, m7, m8, m9, n3, n4, n5, n6, n7, n8, n9, p3, p4, p5, p6, p7, p8, p9, p10, r3, r4, r5, r6, r7, r8, r9, r10, s3, s4, s5, s6, s7, s8, s9, s10, t5, t6, t7, t8, u5, u6, u7, u8, u9, v5, v6, v7, v8, x5, x6, x7, x8, x9, x10, y6, y7, y8, y9, y10, z6, z7, z8, z9, z10, z11, za6, za7, za8, za9, za10, za11, zb7, zb8, zb9, zb10, zb11, zc7, zc8, zc9, zc10, zc11

Bore: A9, A10, A11, A12, A13, B8, B9, B10, B11, B12, B13, C8, C9, C10, C11, C12, C13, CD6, CD7, CD8, CD9, CD10, D6, D7, D8, D9, D10, D11, D12, D13, E5, E6, E7, E8, E9, E10, EF3, EF4, EF5, EF6, EF7, EF8, EF9, EF10, F3, F4, F5, F6, F7, F8, F9, F10, FG3, FG4, FG5, FG6, FG7, FG8, FG9, FG10, G3, G4, G5, G6, G7, G8, G9, G10, H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, JS1, JS2, JS3, JS4, JS5, JS6, JS7, JS8, JS9, JS10, JS11, JS12, JS13, JS14, JS15, JS16, JS17, JS18, J6, J7, J8, J9, K3, K4, K5, K6, K7, K8, K9, K10, M3, M4, M5, M6, M7, M8, M9, M10, N3, N4, N5, N6, N7, N8, N9, N10, N11, P3, P4, P5, P6, P7, P8, P9, P10, R3, R4, R5, R6, R7, R8, R9, R10, S3, S4, S5, S6, S7, S8, S9, S10, T5, T6, T7, T8, U5, U6, U7, U8, U9, U10, V5, V6, V7, V8, X5, X6, X7, X8, X9, X10, Y6, Y7, Y8, Y9, Y10, Z6, Z7, Z8, Z9, Z10, Z11, ZA6, ZA7, ZA8, ZA9, ZA10, ZA11, ZB7, ZB8, ZB9, ZB10, ZB11, ZC7, ZC8, ZC9, ZC10, ZC11
