Arduino Smart Home Automation

Arduino Smart Home Automation control your devices or home electric appliance with wifi Network or Internet Network.

Hardware Feature

• 8 Digital Output Control

• 4 Analog Input Sensor

• Control via TCP/IP or Internet

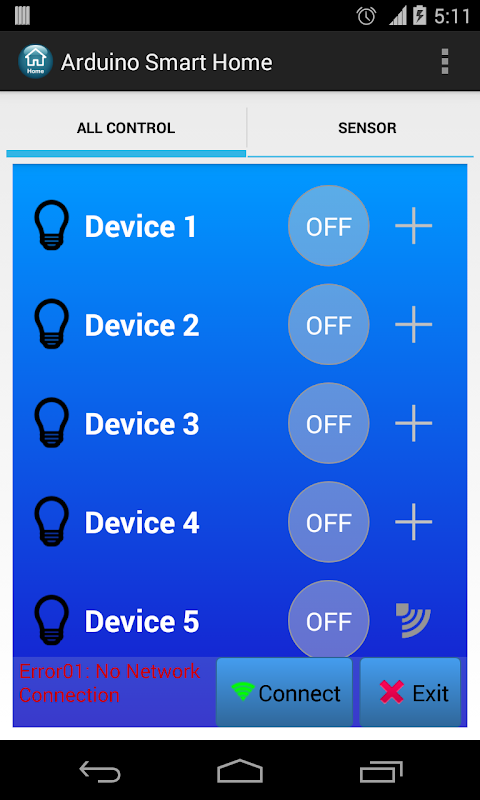

• Control with Web Browser or Android App

Software Feature

• Arduino Web Server TCP/IP ( LAN )

• Set your device name and sensor name

• Sensor Control Output Automatically.

• Set your IP Address and port

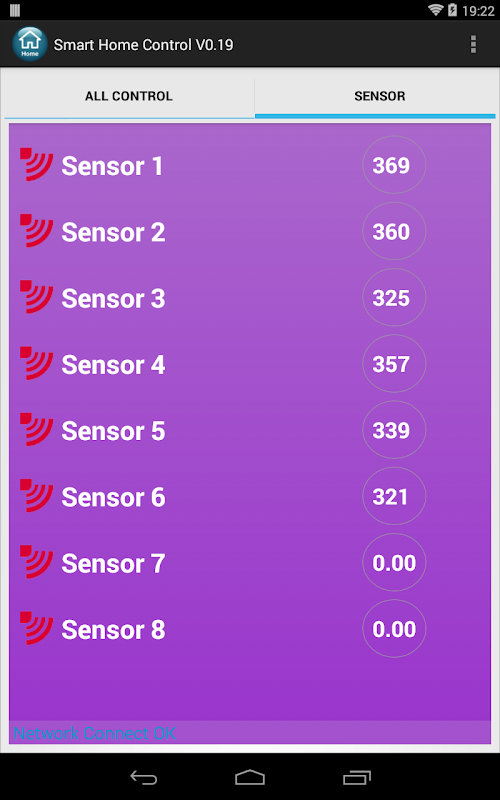

• Real time status

Hardware Device

1. Arduino MEGA Board or compatible board.

2. Ethernet (WIZnet 5100) Shield

3. Relay Board

4. Light Sensor or Motion Sensor or other

Wiring Diagram

Device1 Arduino Output PIN 2

Device2 Arduino Output PIN 3

Device3 Arduino Output PIN 4

Device4 Arduino Output PIN 5

Device5 Arduino Output PIN 6

Device6 Arduino Output PIN 7

Device7 Arduino Output PIN 8

Device8 Arduino Output PIN 9

Analog Input Sensor1 - Arduino PIN A0

Analog Input Sensor2 - Arduino PIN A1

Analog Input Sensor3 - Arduino PIN A2

Analog Input Sensor4 - Arduino PIN A3

Arduino Source Code ,Wiring Diagram and Hardware page

http://androidcontrol.blogspot.com/2014/08/arduino-smart-home-automation.html

Buiness Page ( Thailand )

http://smart-homecontrol.com/

http://softpowergroup.net/

email : [email protected]

If you want Android Source Code in this App. it cost 30 - 50 USD.

FREE Version with Ad

Version 0.1
