Bitadroid

(Old Version Of Bitalino Not Bitalino Revolution)

This application allow to record signals from the Bitalino, at the moment only the analog signals. You can visualize in real time the signals that are being recording. The saved recordings can be share and send by several channels.

Bitalino webpage: http://www.bitalino.com/

YOU NEED a Bitalino device for the app to work.

In some phones/tablets your Bitalino may have problem to pair.

Here is a list of the devices in which we have tested the application (may change due to your smartphone android version or Bitalino version)

Nexus 5

Moto G

Nexus 4

Motorola XOOM

INSTRUCTIONS FOR USING THE APP

1) Install the apk in your android phone.

2) Turn on the bluetooth and pair your Bitalino with your phone.

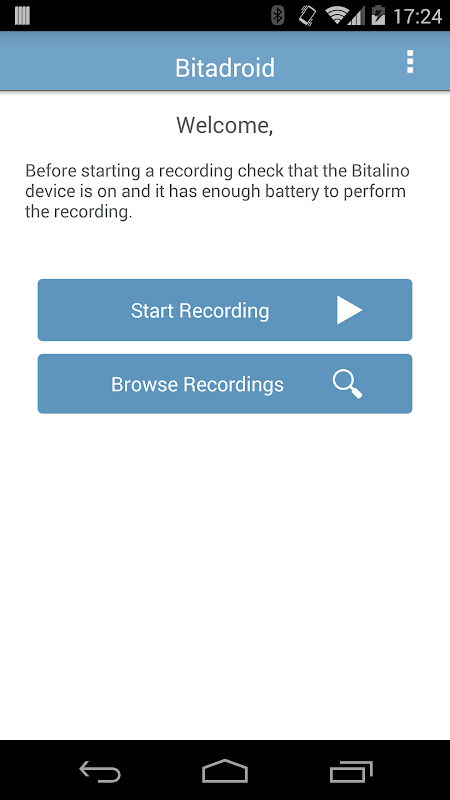

3) Start the Bitadroid application in your Android

4) Press the button Start Recording

5) Press the button in the botton Add a new configuration

6) Create a new recording configuration with the MAC for your Bitalino, please for Recepcion frequency please select 10,100 or 1000 Hz. Sampling frequency is the frequency of the drawing in the phone. Press Select channels to activate and check the channels that you want to record (please don't select more than 6), you can change the type but at the moment the type is not use you can left Electroencephalography in all, press Accept. Now press Select channels to display and check the channels that you want to see. Finally press Submit. If later you want to edit a configuration you can do it with a long-press over it.

7) Now to record you new to press over your configuration and write the record name.

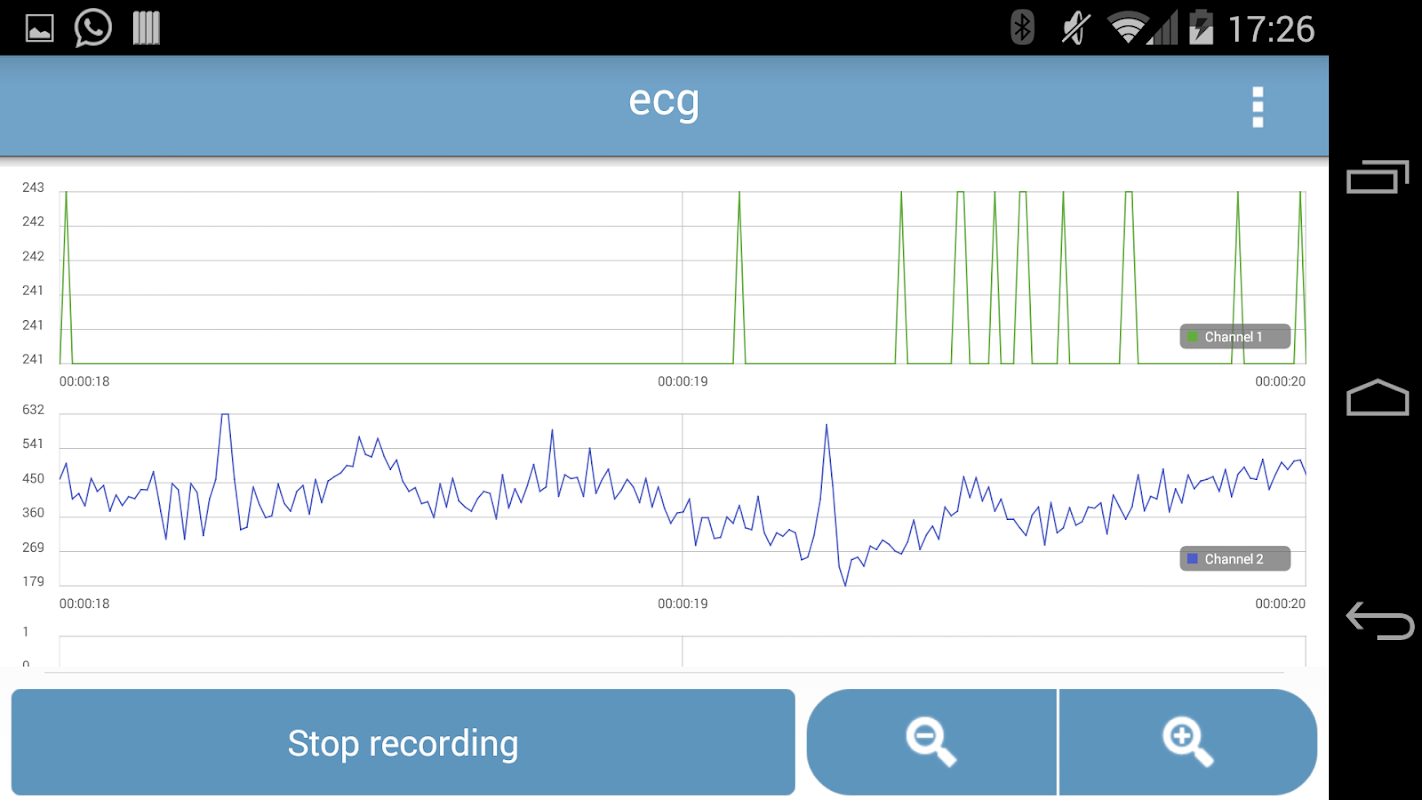

8) In the new window press Start recording and if everything is working well after a few secondos the signal will appear in the screen.

9) When you want to end the recording press in Stop recording, the software saves the recording.

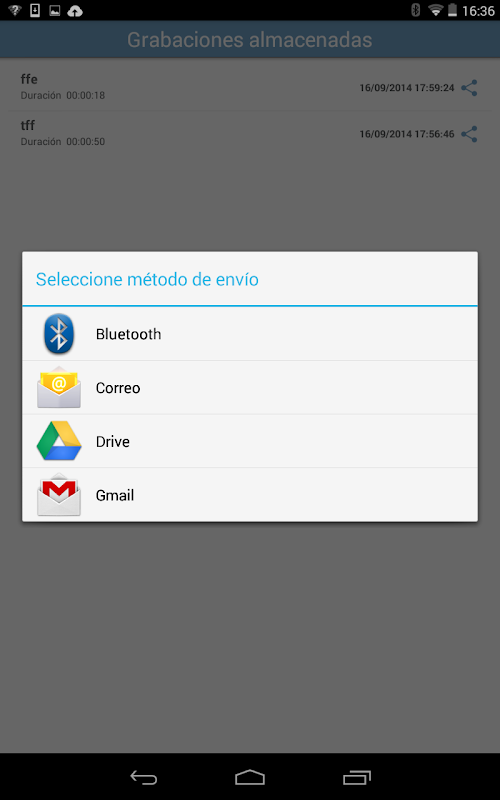

10) If you want to download your recording in the home screen of the application press Browse Recordings. In the list select press over the recording that you want and choose any of the options to share it.

Start recording and have fun.

Tested in Nexus 5 (Android 4.4.4) with plugged and board Bitalino
