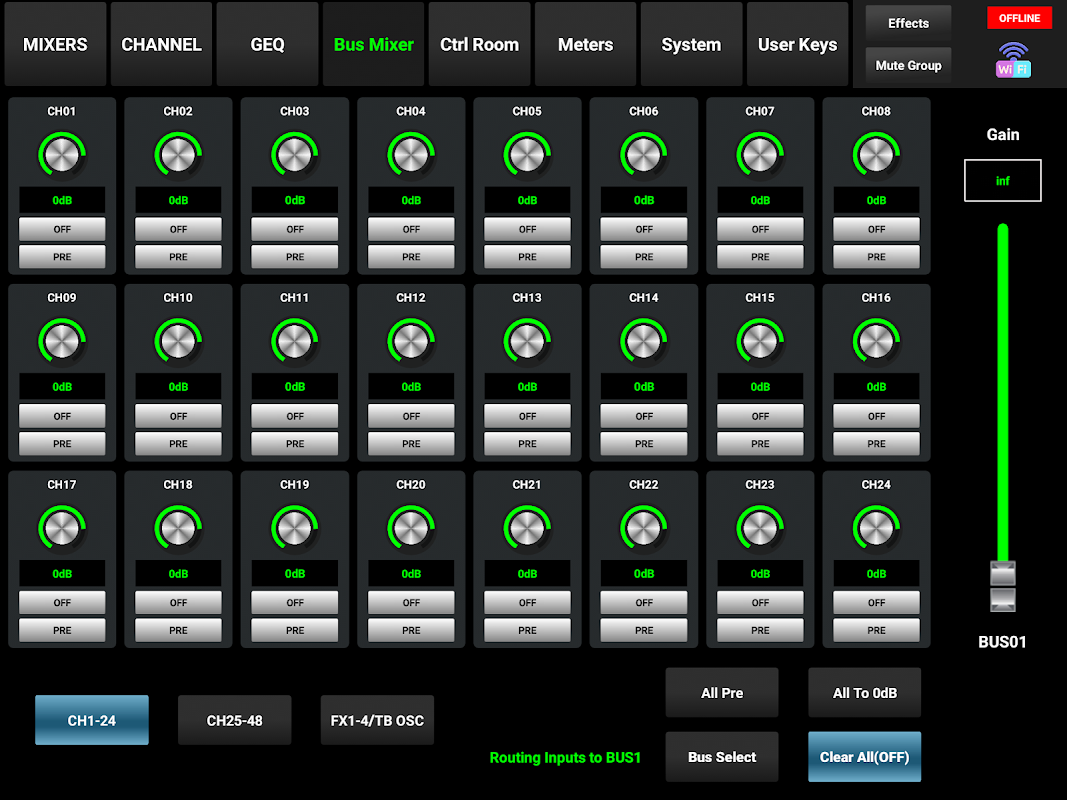

DM Editor

the main functions of DM Editor are as follows:

1. 32 XLR analog inputs with digital gain control 2. up to 32 Digital inputs

3. 16 XLR mix bus outputs

4. Main and CTRL L/R Outputs

5. AES stereo digital output

6. +48V phantom power

7. All channels Control Room outputs

8. All channels headphones output

9. USB key for stereo recording/playback , Presets save/load and firmware update

10. Ethernet port firmware update interface, can be used to connect iPad remote control APP – Multiple app support

11. Up to 4 stereo internal FX processors

12. 17 precision motorized 100mm faders

13. 32 bit floating point digital signal processing

14. 10.1 inch color LCD touch screen for graphical view and setup

15. Two-color LCD displaying channel information

16. 24-bit/48 / 96KHz sampling rate

17. Up to 48 DSP processing channels

18. Program, save, load & copy functions

19. Digital noise gate

20. Digital compressor/limiter

21. Digital 4-band full parametric EQ

22. PAN

23. Phase reverse

24. Time delay

25. 8 DCA for fader /mute group 26. Authority management

27. AutoMix

28. RTA

29. FBC

30. User defined Buttons 31. Talkback / Mic input 32. Lamp socket

Optional Features

1. T-32 DANTE network audio interface, field installable
