Cantilever Beam Dist Load

Free app for analyzing a cantilever beam with a uniform distributed load. Of interest to civil, structural, and mechanical engineers.

Input:

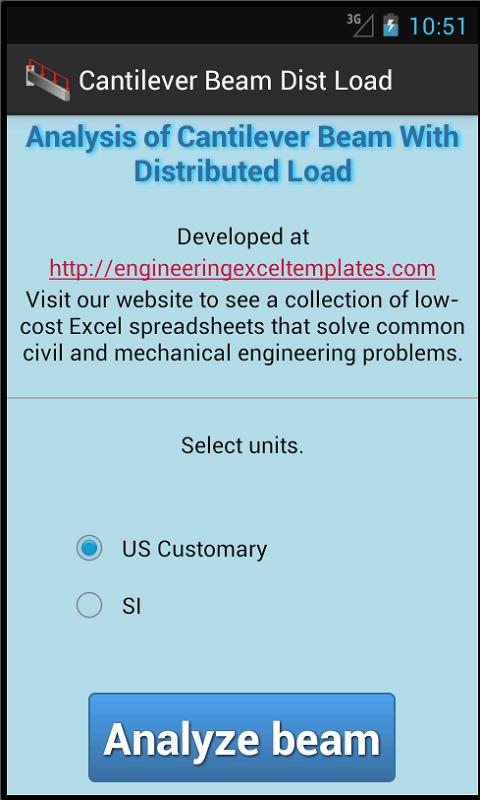

Type of units to be used (SI or US Customary)

Length

Distance, x, to point where deflection is to be calculated

Elastic modulus

Moment of inertia

Load

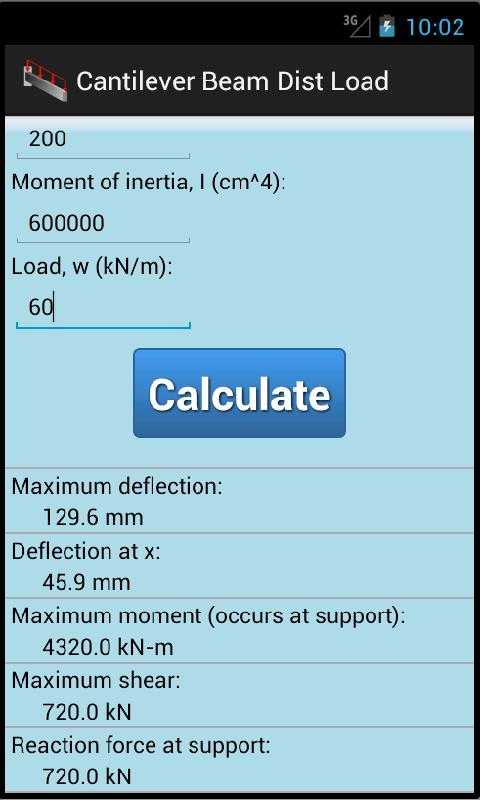

Results:

Maximum deflection

Deflection at x

Maximum moment (occurs at support)

Maximum shear

Reaction force at support
