Eccentric Cone Layout

This app build for simple and faster layout development of Eccentric Cone.

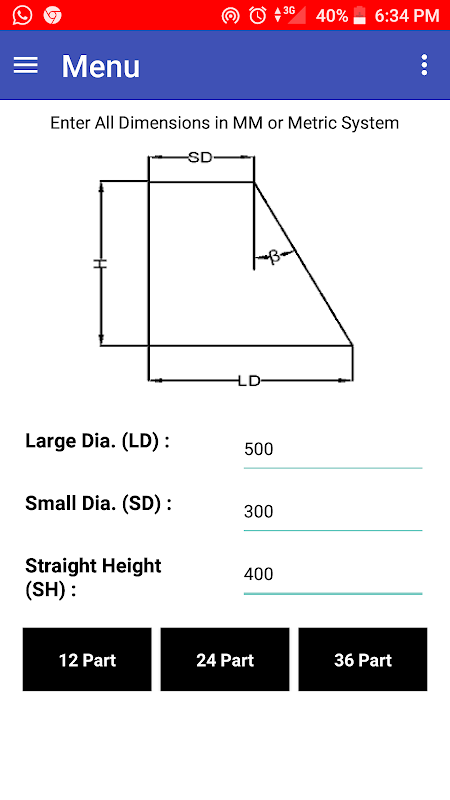

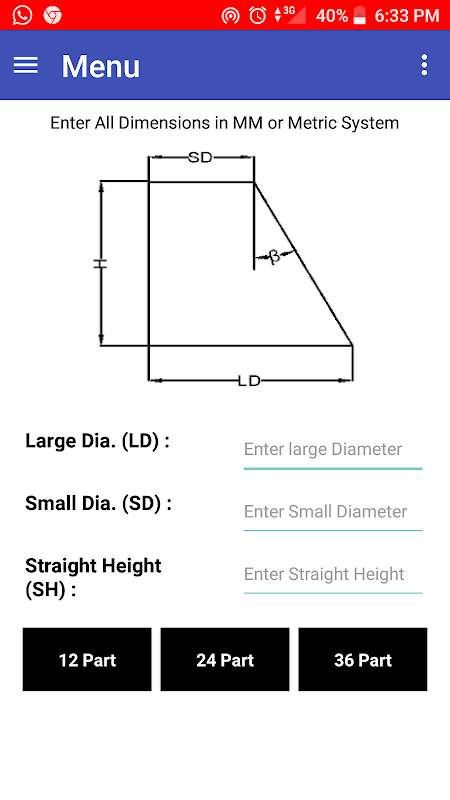

this app takes Input as:

Large Side Diameter.

Small Side Diameter.

Straight Height of Cone.

All dimension must be required in mm or metric system.

this app gives flexibility to user for selecting layout method in three types of parts:

12 Part layout development.

24 Part layout development

26 Part layout development.

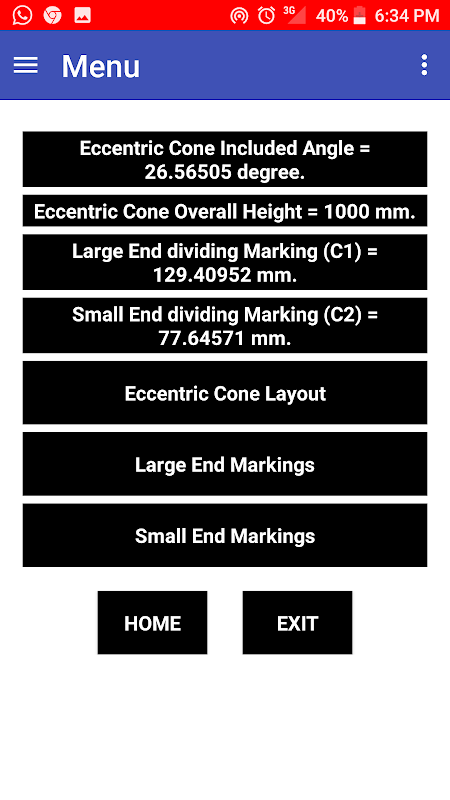

this app is also calculate:

Cone included angle.

Cone overall height.

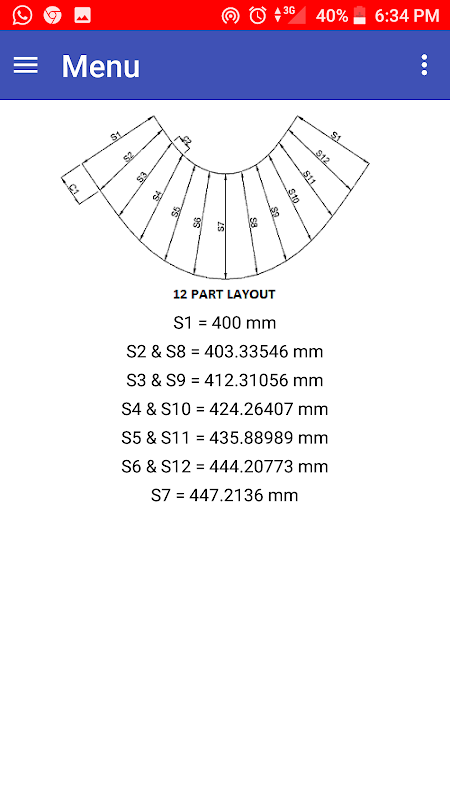

In this app we had made provision of Marking dimensions so that user can easily layout on raw plate.

for this marking we had given options as per following:

Large end marking

Small End marking

large End Dividing marking

small end dividing marking.

this app is very useful in fabrication activity. it is helpful for engineer and other working professional in fabrication field.

it is used in fabrication of pressure vessel, heat ex changer, storage tank and other process equipment manufacturing.
