Intelligent Wireless Data App

Đây là phần mềm sử dụng cảm biến Dữ liệu không dây thông minh của Màn hình NEC.

Intelligent Wireless Data App is an application software for reading and writing adjustment values and setting values using the Intelligent Wireless Data sensor of a NEC Displays and a terminal equipped with a NFC sensor (smartphone or tablet PC).

[Supported Terminals]

Terminals that are equipped with NFC-V functions.

Tested terminal : Nexus 4, Nexus 5, Nexus 7(2012), Nexus 7(2013), and Nexus10.

[Supported Displays]

LCD-X981UHD-2

LCD-X981UHD

LCD-X841UHD-2

LCD-X841UHD

LCD-X651UHD-2

LCD-X651UHD

LCD-X551UHD

LCD-UN551S

LCD-UN551VS

LCD-X555UNV

LCD-X555UNS

LCD-X554UNV

LCD-X554UNS-2

LCD-X554UNS

LCD-X554UN

LCD-X464UNV

LCD-X464UNS-2

LCD-X464UNS

LCD-X464UN

LCD-X754HB

LCD-X554HB

LCD-X474HB

LCD-V554-T

LCD-V554

LCD-V484-T

LCD-V484

LCD-V404-T

LCD-V404

LCD-P801

LCD-P703

LCD-P554

LCD-P553

LCD-P484

LCD-P463

LCD-P404

LCD-P403

LCD-P654Q

LCD-P754Q

LCD-V554Q

LCD-V654Q

LCD-V754Q

LCD-V864Q

LCD-V984Q

LCD-C651Q

LCD-C751Q

LCD-C861Q

LCD-C981Q

MDC551C8

LCD-UN462A

LCD-UN462VA

LCD-UN492S

LCD-UN492VS

LCD-UN552

LCD-UN552A

LCD-UN552S

LCD-UN552VS

LCD-UN552V

LCD-UX552S

LCD-UX552

[Pre-settings of the display]

1.Check the OSD settings of the display.

"ADVANCED OPTION2" - "INTELLI.WIRELESS DATA" : ON

Performed the following settings as well when writing adjustment and setting values with the display in the standby state.

"EXTERNAL CONTROL" - "LAN POWER" : OFF

"ADVANCED OPTION1" - "INPUT DETECT" : NONE

"ADVANCED OPTION1" - "OPTION SETTING" - "OPTION POWER" : OFF

2. Put the display on standby, or switch off the main power supply.

[Terminal Pre-Settings]

• Validate the NFC functions of the terminal.

Example) Check "Setting" - "Wireless & Network" - "Other..." - "NFC".

• Set the password (4 numerical digits) to be the same as the password of the Intelligent Wireless Data sensor in "Set Password" under "Security Setting" in the Intelligent Wireless Data App.

[Communication with the Intelligent Wireless Data sensor]

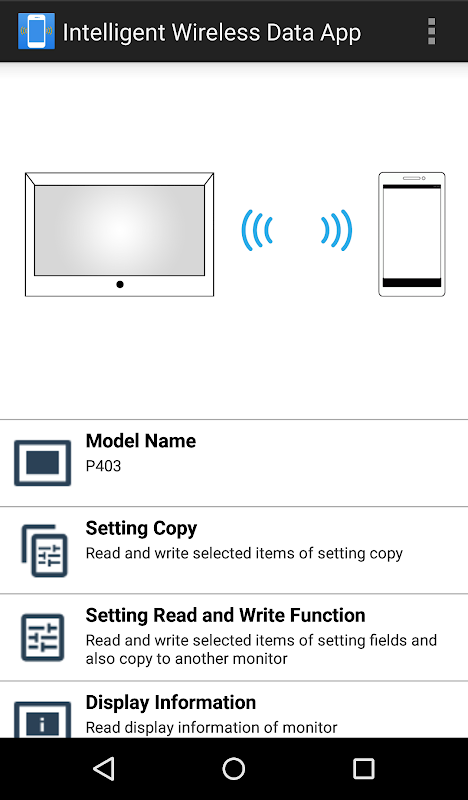

Bring the terminal close to the Intelligent Wireless Data sensor and check the position at the bottom of the application screen where the message "The display is detected." appears.

[Reference]

・ The installation location of the Intelligent Wireless Data sensor varies depending on the display. Please refer to the instruction manual of the display for more information.

・ The installation location of the NFC sensor varies depending on the sensor. Please refer to the instruction manual of the terminal for more information.

[Precautions when reading and writing]

・ Please perform reading or writing with the display in a standby state or the main power switched off.

・ Before communication with the display, move the terminal to the position where the message "The display is detected." is displayed and perform reading and writing at that position.

・ To communicate with the display, a password (4 numerical digits) similar to the password of the Intelligent Wireless Data sensor needs to be registered.

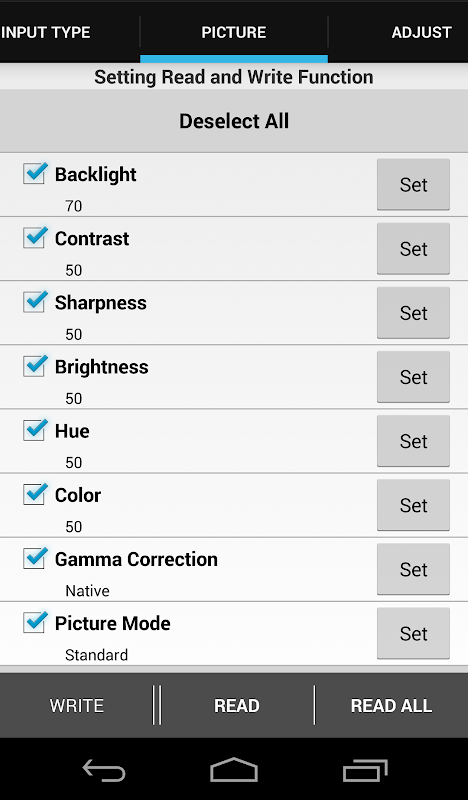

・ All items whose check boxes are ticked will be read. Items to be written are those which are enabled and whose check boxes have been ticked. Disabled items will not be written even if their check boxes are ticked.
