Machine Design

Máy kích thước phổ biến thiết kế các thành phần và đánh giá áp lực của họ

This simple tool will allow you to size common machine design components and evaluate the stresses for each scenario.

PROFESSIONALS

Quickly size common machine design elements such as threads and interference fits and evaluate their stress conditions in seconds. As always, with built-in unit conversions, never worry about the unit scale again.

POST SECONDARY STUDENTS (Mechanical, Aerospace, Civil Engineering, etc...)

Make your problem sets, labs and design projects a breeze with pre-written formulae which are commonly taught in engineering schools. Improve the quality of your designs by including industry proven design components sized to suite your specific need early in the design stage.

Simplify your engineering calculations with:

- Reference equations & diagrams

- Integration of sub-equations - (Press the |Sub| button)

- Dynamic calculation

- Built-in unit conversion

- Prominent tabbed output display

- Simplified main screen layout with icons for quick identification

- Built-in component sizing and form standards

Either for reference or for double-checking, conveniently view each diagram and equation at the bottom of each calculator's screen in an easy to read graphical layout like you see in reference textbooks.

With the integration of sub-equations, you can benefit from the added ease of determining critical design inputs through additional equations if you have not determined the specific value beforehand. (Press the |Sub| button)

Dynamic calculation allows you to vary design parameters rapidly and see their result without ever having to re-calculate.

Input your parameters in standard units of measure in engineering without having to do your own conversions.

The prominent tabbed output display makes the answer always directly at hand by displaying the output(s) at the top of the screen. By grouping calculators that can output multiple design parameters in a compact and easy to use "tabbed" display, you can "swipe or tap" left and right on the output field and view all of your results.

Included calculators:

1. Shaft Power

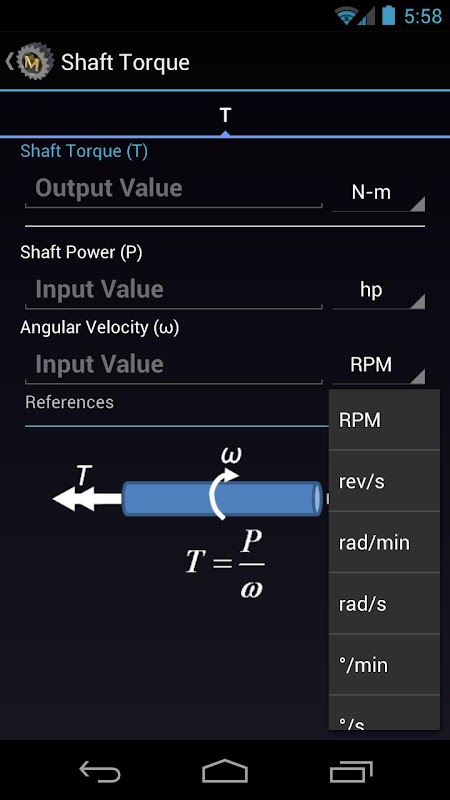

2. Shaft Torque

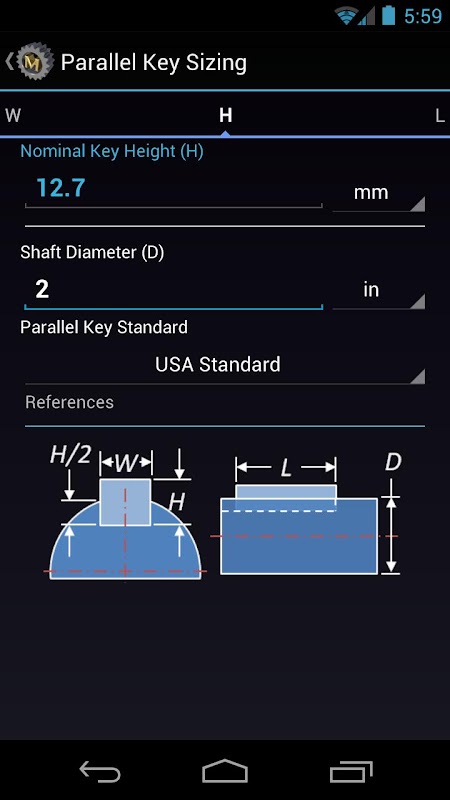

3. Parallel Key Sizing (USA Std., British Std.)

4. Parallel Key Stress

5. Spline Engagement Length

6. Spline Shear Stress

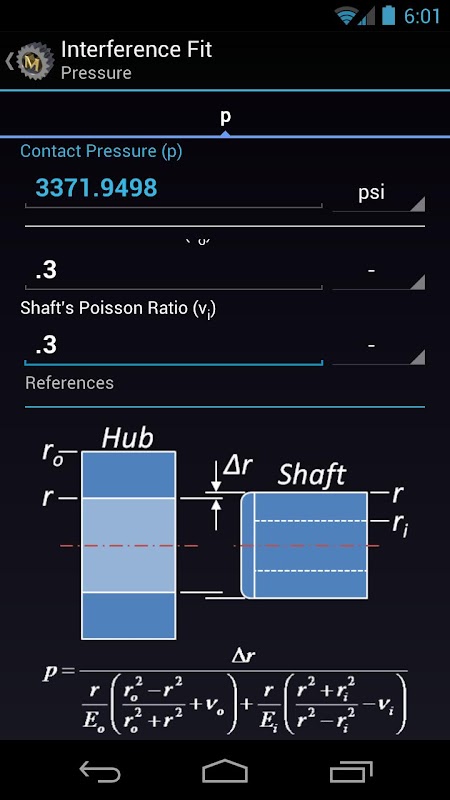

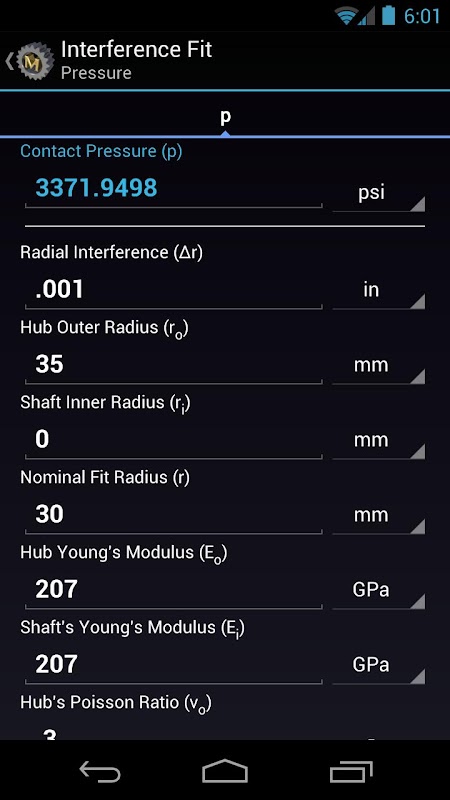

7. Interference Fit Pressure

8. Interference Fit Torque Transmission

9. Interference Fit Stress

10. Threaded Rod Tensile Stress (ISO/UNS)

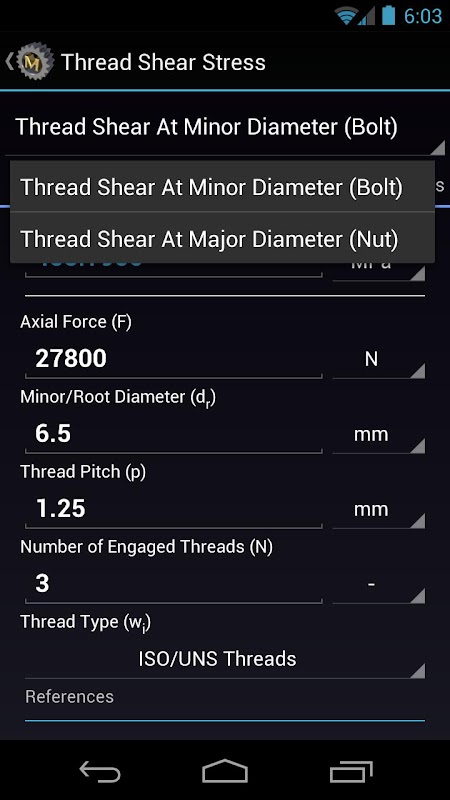

11. Thread Shear Stress (ISO/UNS, Square, Acme, Buttress)

Units Conversions Supported:

Power: hp, kW, MW, W, ft-lb/min, BTU/min

Torque/Moment: M-m, N-mm, kN-m, kN-mm, lb-ft, lb-in, oz-ft, oz-in, kg-mm, kg-m, g-mm, g-m

Angular Velocity: RPM, rev/s, rad/min, rad/s, °/min, °/sec

Length: m, mm, um, nm, in, ft

Stress / Pressure: Pa, kPa, MPa, GPa, psi, kpsi

Area: m^2, mm^2, cm^2, um^2, nm^2, in^2, ft^2

Simple Solutions Droid is dedicated to providing you with simple solutions to your complex technical problems.

We appreciate any and all feedback on our Apps so we can help provide better solutions to you, our valued customers.

Please note that this product is intended as a reference tool only and is not a substitute for formal engineering design verification.

For other Apps and more information please visit our website at:

http://www.ssdroid.com

Sincerely,

Team SSDroid
