GPIO Tool For Raspberry Pi

对于在RaspberryPi的GPIO头和设备的试验。

For experimenting with the GPIO header on the RaspberryPi.

Note: This app is for experimenting and testing the devices, I do not condone or support using for anything else.

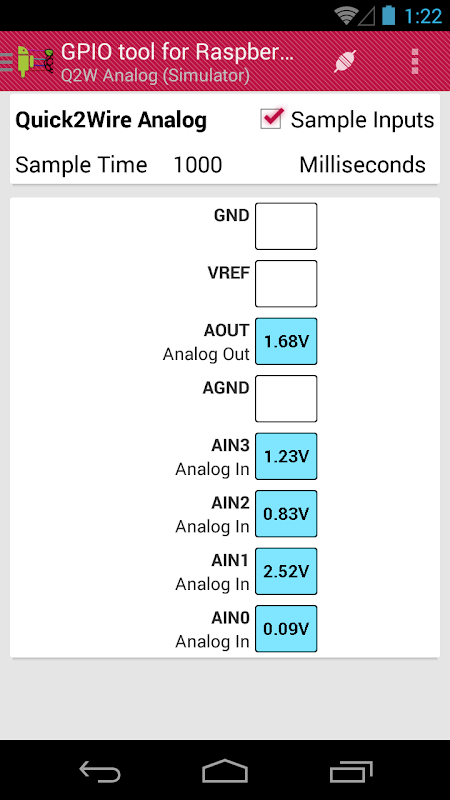

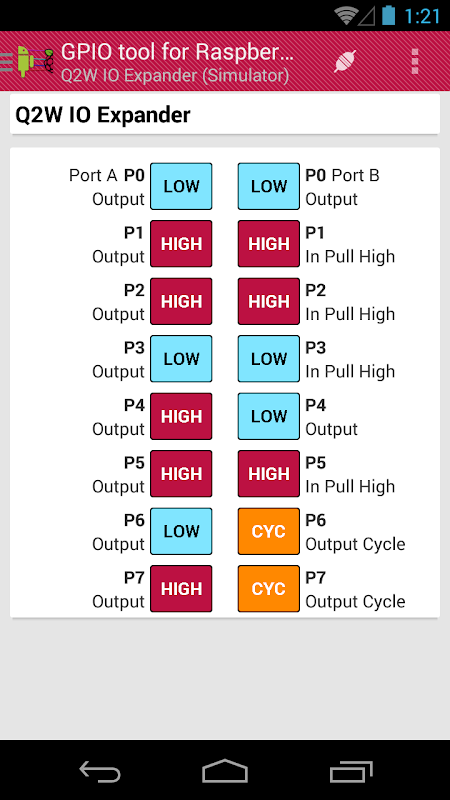

Now supports, The Quick2Wire Interface, IO Expander and Analog Boards.

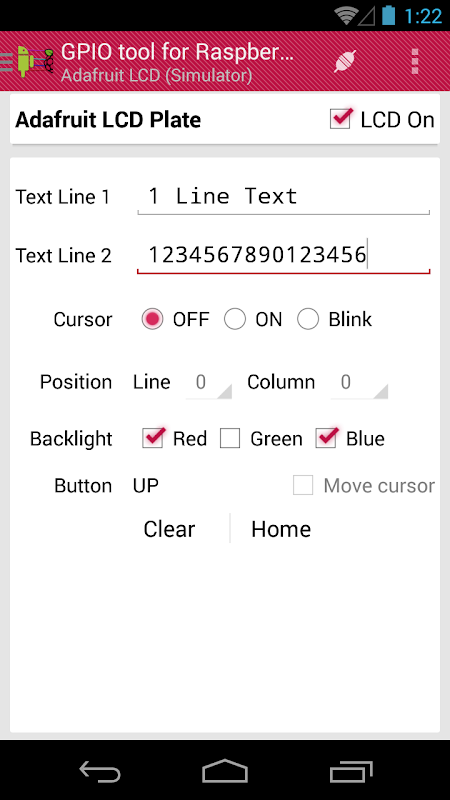

Adafruit LCD Plate.

PiFace Command and Display.

DS18B20 Temperature Sensors.

DHT11/DHT22 Humidity Sensors. (Note RPI not good at reading these due to precise timing needed)

BMP085/185 and compatible Pressure Sensor.

BMP280 Pressure sensor.

Shift 74x595 Bit shift output.

HTU21D Digital Humidity and Temperature Sensor.

BH1750 Lux Sensor.

TCS34725 RGB Colour Sensor.

PiGlow board.

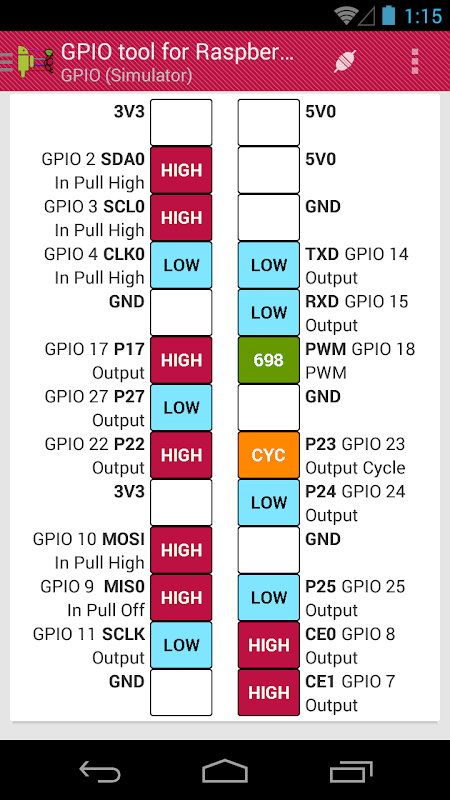

You can name and hide pins, set the pin modes and make them not changeable, set output pins to cycle on/off.

The temperature sensors are graphed, and can be displayed on a LCD.

Has a Simulator, lets you see how each device works without a Raspberry Pi.

SSH access to the Raspberry Pi, with password free sudo required to install utility app.

Uses a utility which it will install on the RPi, to communicate to your android, allowing switching of the pin modes, from input(pull high/pull low) to output & PWM. When pin set to output it will allow setting to high/low, for input pins will show current input state of high or low.

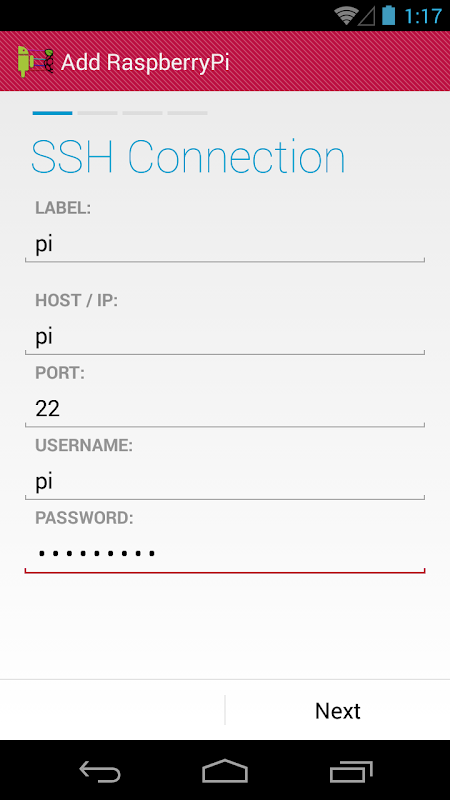

The RPi is communicated with over SSH, to install the utility the ssh user will have to have non-password sudo access.

Any issues - email [email protected], i will sort them, issues listed in feedback will be ignored.

This is a freemium app, for free you get to add one raspberrypi and will see advertising, for a small in-app purchase you will get to remove the advert, add more raspberrypi's and get the features that will be coming in the future. (also buys the developer coffee).

Join the Google+ Community https://plus.google.com/u/0/communities/114957148161423684690 to Duscuss and Beta test.

Permissions:

INTERNET = for connecting to the pi, advertising, analytics.

ACCESS_NETWORK_STATE = to know if network is available.

ACCESS_COARSE_LOCATION = for advertising and analytics.

BILLING = for in-app billing.

READ_PHONE_STATE = for billing to get phones ID.

This app uses google analytics for anonymous usage tracking.
