UTP Cable Simulator

Update 14 July 2020 - As a developer, I'm sorry to announce that I've lost the key to update the app. Therefore, I cannot update this app anymore. The best thing I can do is to upload a new similar app with improvements. I will do that when it is available. Thank you.

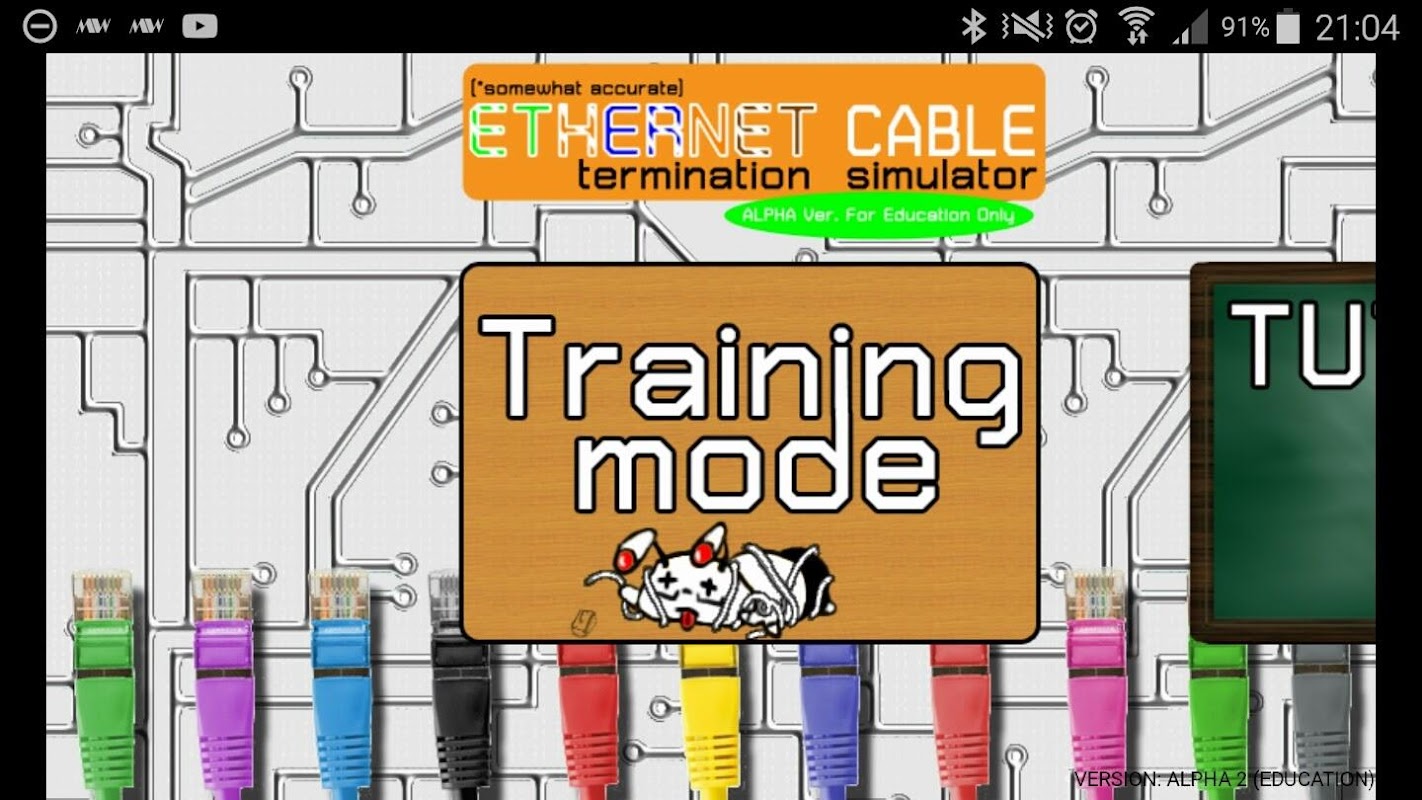

An educational app simulating UTP cable termination. Work with 4 pairs of color coded wire like CAT5, CAT5e and CAT6 unshielded twisted pair (UTP) cable. Arrange the wires into their correct position according to TIA/EIA 568 A or B, either straight through or crossover.

Designed to be used in conjunction with education engaging activities. This app should prepare students before a real UTP termination workshop. It can improve their skill and memory on wiring scheme. It should also reduce mistakes which will waste RJ45 connectors and cables.
