Short circuit finder (using ONLY Flir-One camera)

if you have a cheaper Flir-One for Android (not the PRO version.. that has a better resolution) try this app to increase quality of thermal scans and easly find short circuits on laptop motherboards / logic boards

this application was made for who need to repair laptop motherboards outside laboratory using a Flir One device. (NOT WORKING ON PRO VERSIONS OF FLIR ONE)

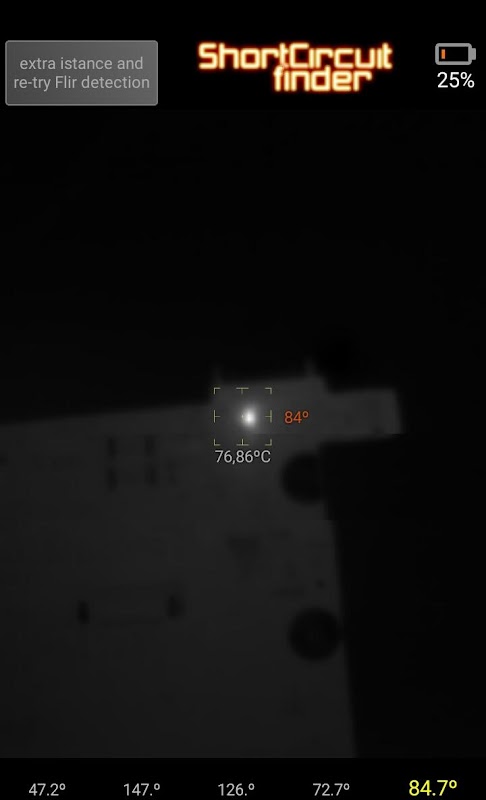

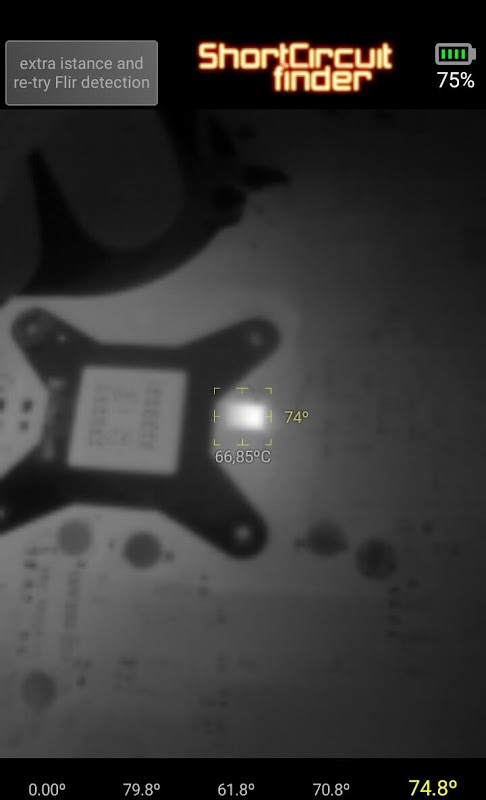

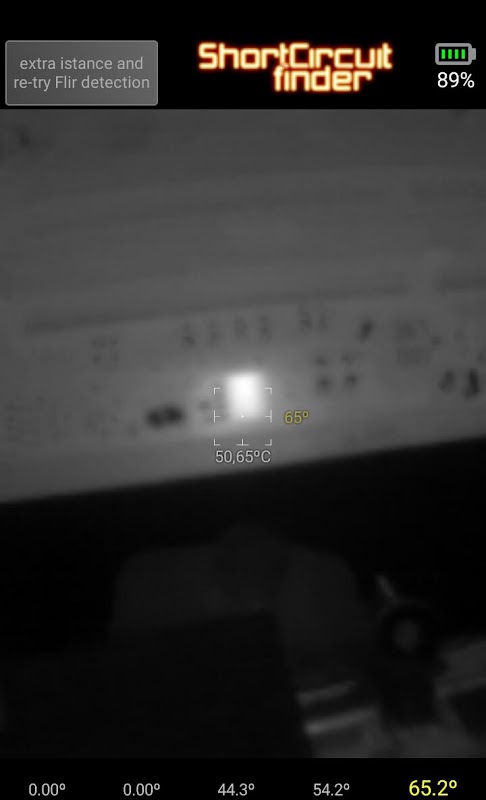

Just inject some "amps" on board and identify the "short"!

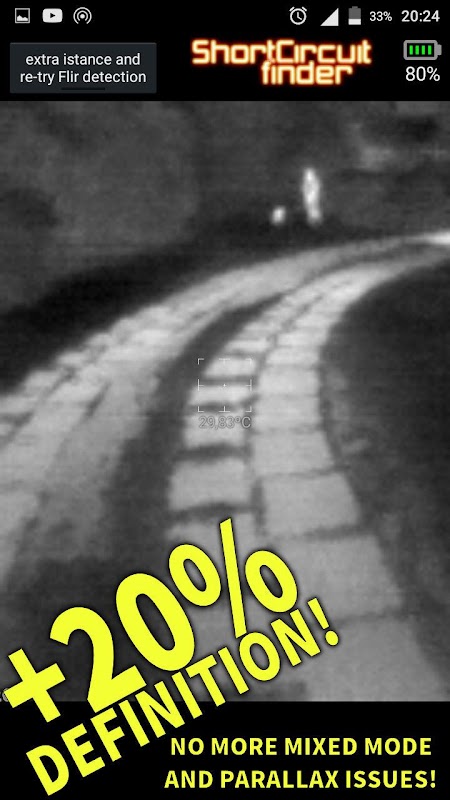

- No "parallax" issues like other application.

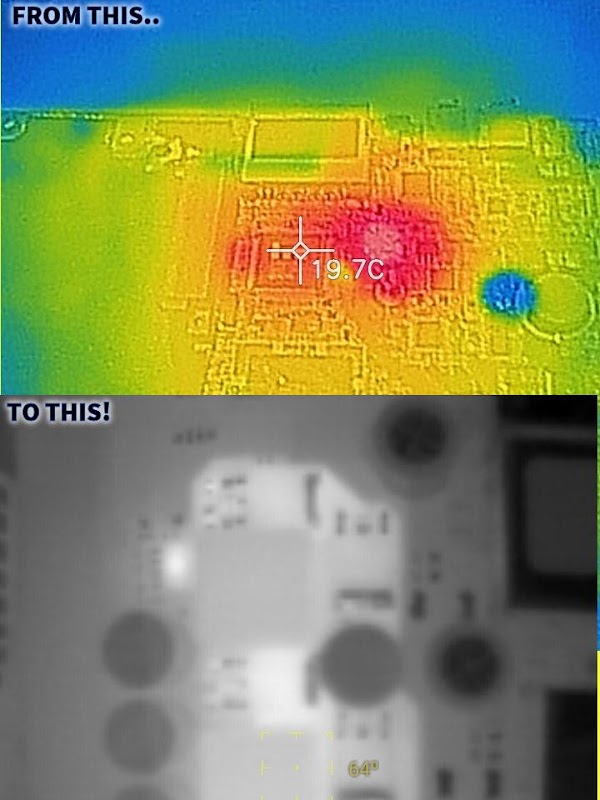

- Increased image quality by 20% (now other SMD components can be identified whitout standard "optical" flir camera.. just the thermal!)

- Now Flir One can placed on "reversed" smartphone (Flir One on top) to prevent accidentally falls during work.
