Short circuit finder (using Flir-One camera)

Encuentre fácilmente cortocircuitos en placas madres / placas lógicas de portátiles con Flir One

Easly find short circuits on laptop motherboards / logic boards using Flir One

this application was made for who need to repair laptop motherboards outside laboratory using a Flir One device.

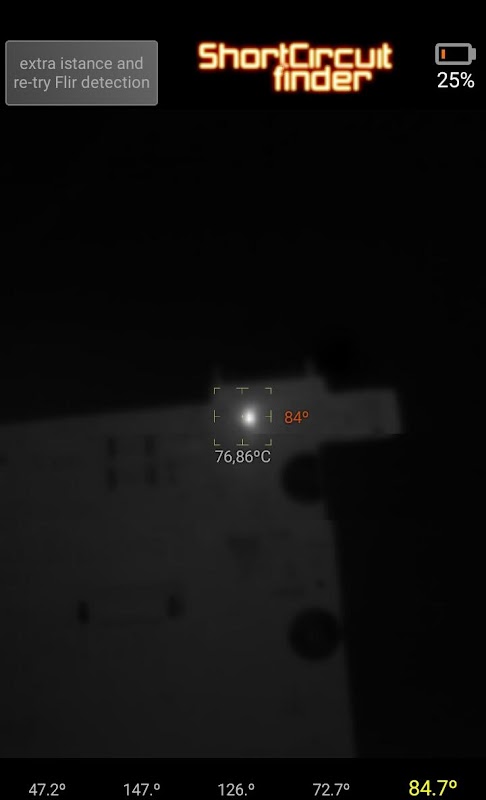

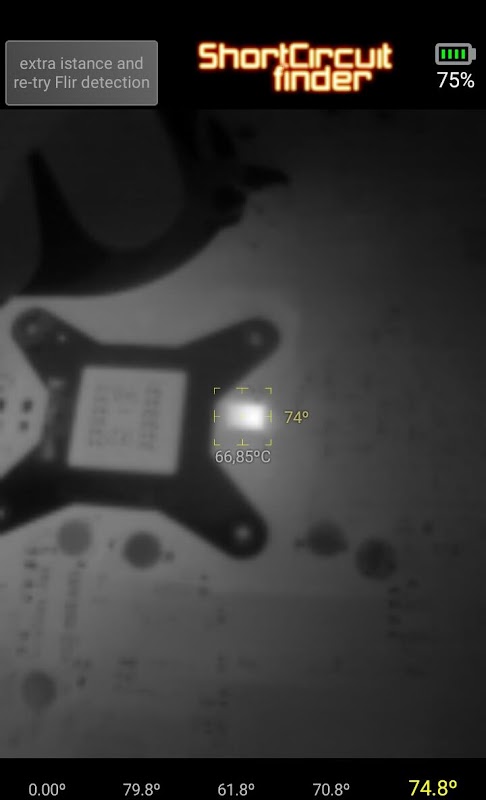

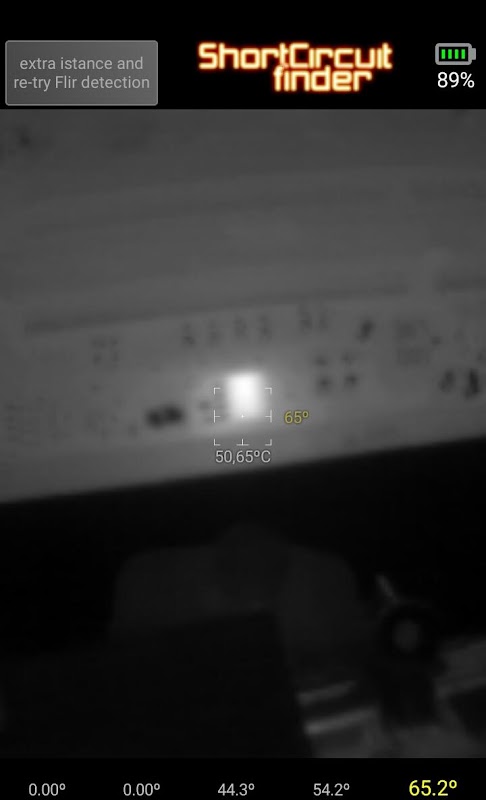

Just inject some "amps" on board and identify the "short"!

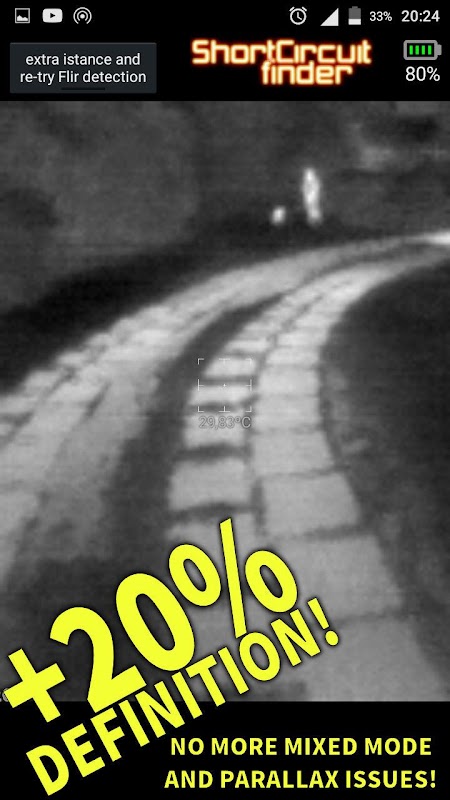

- No "parallax" issues like other application.

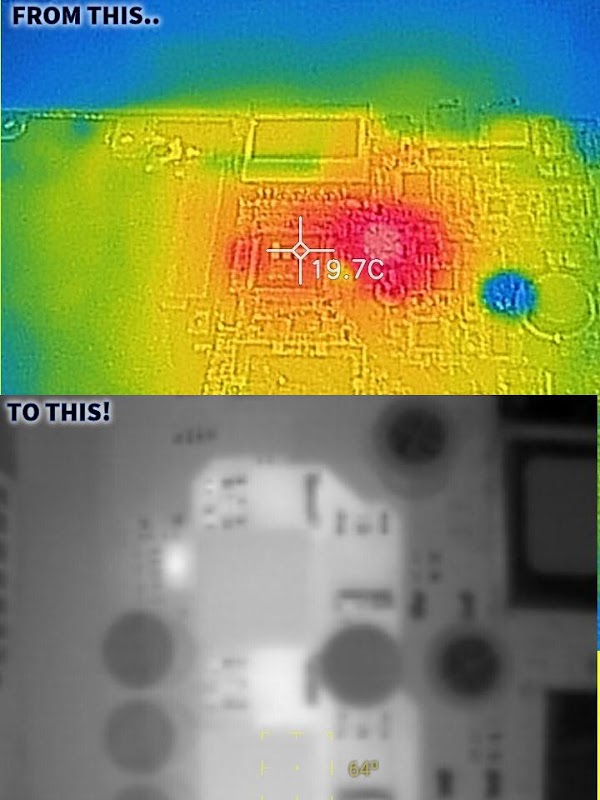

- Increased image quality by 20% (now other SMD components can be identified whitout standard "optical" flir camera.. just the thermal!)

- Now Flir One can placed on "reversed" smartphone (Flir One on top) to prevent accidentally falls during work.
