aCableBT Demo

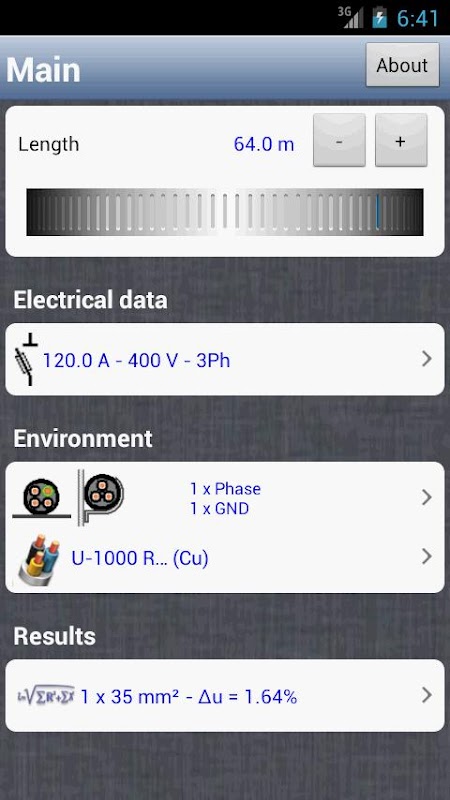

Demonstration version of dimensioning cables application, according to NF C 15-100: section, current rating, voltage drop, ...

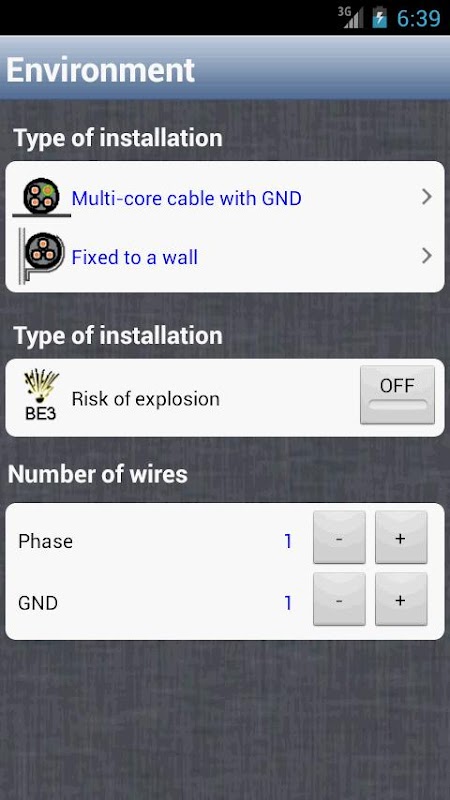

Calculations are made ​​based on the type of cable (insulation, conductor material) and environment (installation method, temperature, grouping of cables, ...).

Results transmitted by e-mail.

The calculations is also in accordance with the obligations of the RGIE.

The application interface is available in English and French.

The application is fully functional with the following limitations:

- Section limited to maximum 4 mm2.

- Limited choice for "multi conductor with PE".

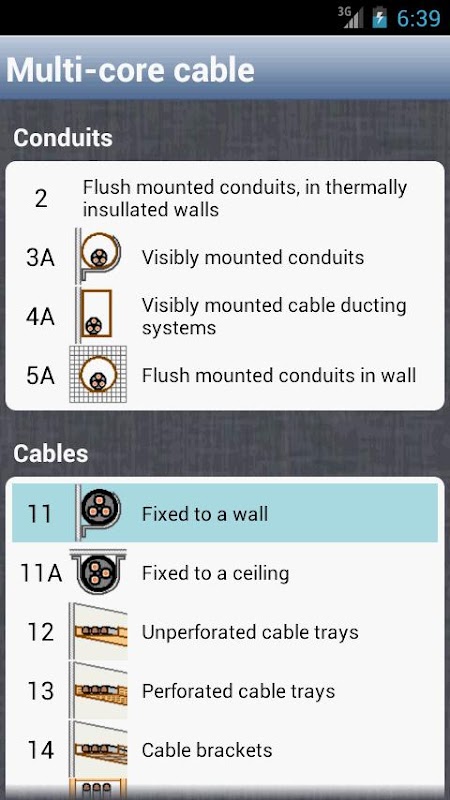

- Limited choice for pose mode: "11 Fixed to a wall".
