SS Beam Conc Load

Free app for analyzing a simply-supported beam with a concentrated load. Of interest to civil, structural, and mechanical engineers.

Input:

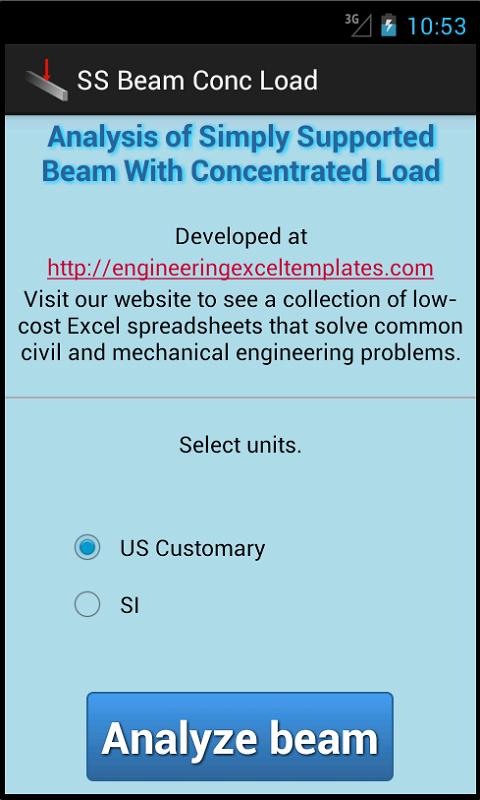

Type of units to be used (SI or US Customary)

Length

Distance from left end to load

Distance, x, to point where deflection is to be calculated

Elastic modulus

Moment of inertia

Load

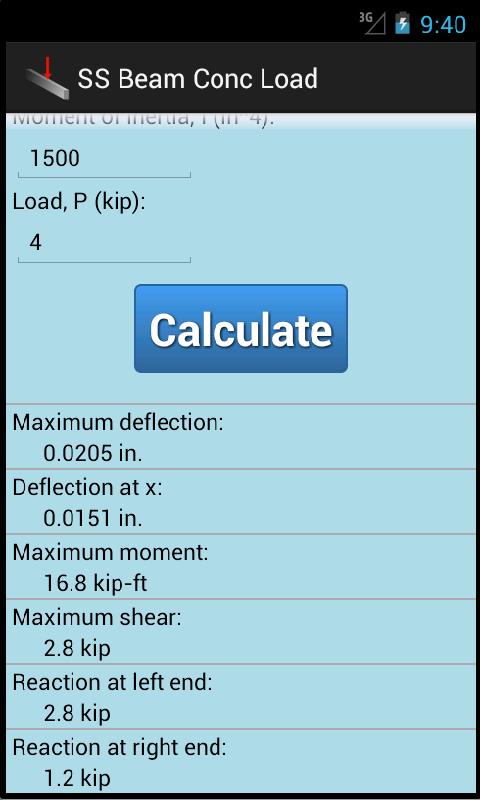

Results:

Maximum deflection

Deflection at x

Maximum moment

Maximum shear

Reaction at left end

Reaction at right end
