Belimo Duct Sensor Assistant

Aplikacja Belimo Duct Sensor Assistant do indywidualnej konfiguracji czujników

Via the Belimo Duct Sensor Assistant App it is possible to extend the range of use and to adapt the configuration individually to application requirements. A Bluetooth® dongle is required for configuration via the Belimo Duct Sensor Assistant App (sold separately, A-22G-A05).

Features

• Communication via Bluetooth BLE

• Bluetooth Dongle A-22G-A05 required, which will communicate with the sensor via a Micro-USB-connector

• Can be used for the following sensors: 22ADP-.., 22DTH-..5.., 22DTH-..6.., 22DC-..3, 22DC-.., 22DTC-.., 22DTM-.., 22DCV-.., 22DCM-.., 22DCK-.., 22UTH-..50X, 22UTH-..60X

• Supported languages DE, EN, FR, IT, ES, PT

Configuration options

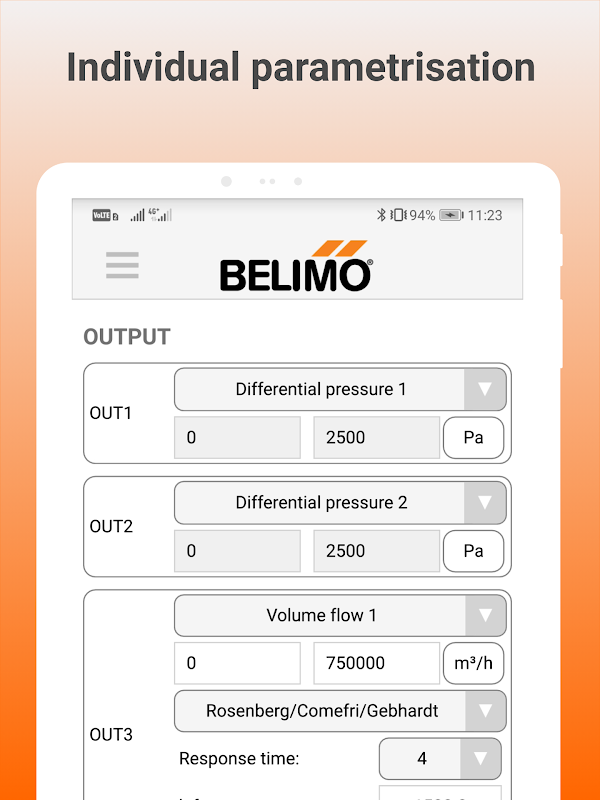

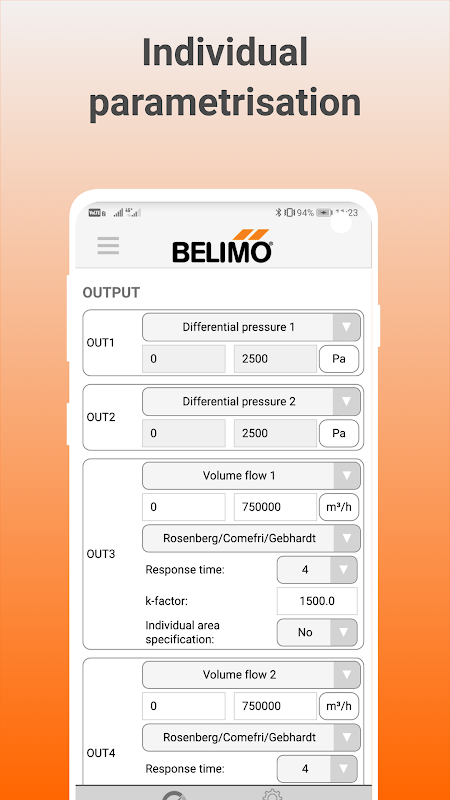

• Individual configuration of output signals

• Setting of different measuring ranges

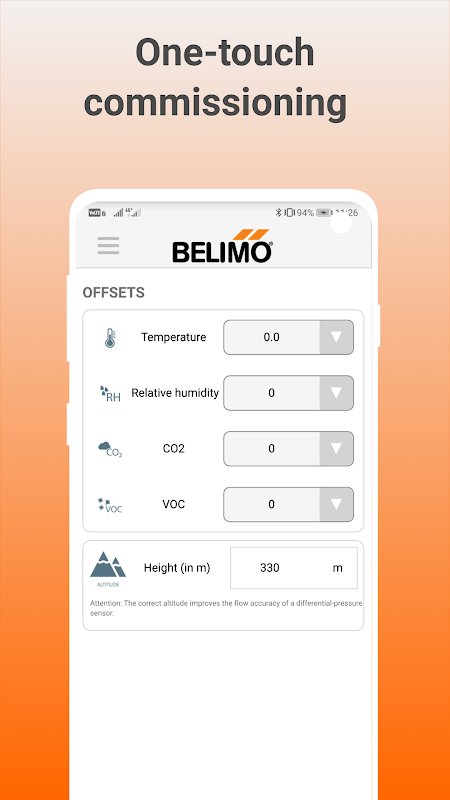

• Additional adjustment of offset values

• Parameterization of Live-Zero-Signal (2..10 V etc.) and the system of units

• Setting options for display indications

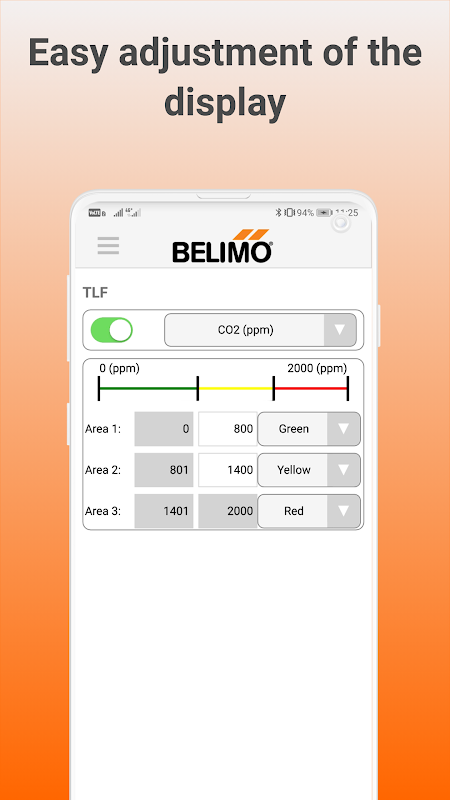

• Customized parameterization of traffic-light function (TLF)

• Extension of the physical Modbus address

• Store settings on the mobile device and load on other sensors

• Representation and output of the differential pressure as a volume flow value
