Belimo Duct Sensor Assistant

개별 센서 구성을위한 Belimo Duct Sensor Assistant 앱

Via the Belimo Duct Sensor Assistant App it is possible to extend the range of use and to adapt the configuration individually to application requirements. A Bluetooth® dongle is required for configuration via the Belimo Duct Sensor Assistant App (sold separately, A-22G-A05).

Features

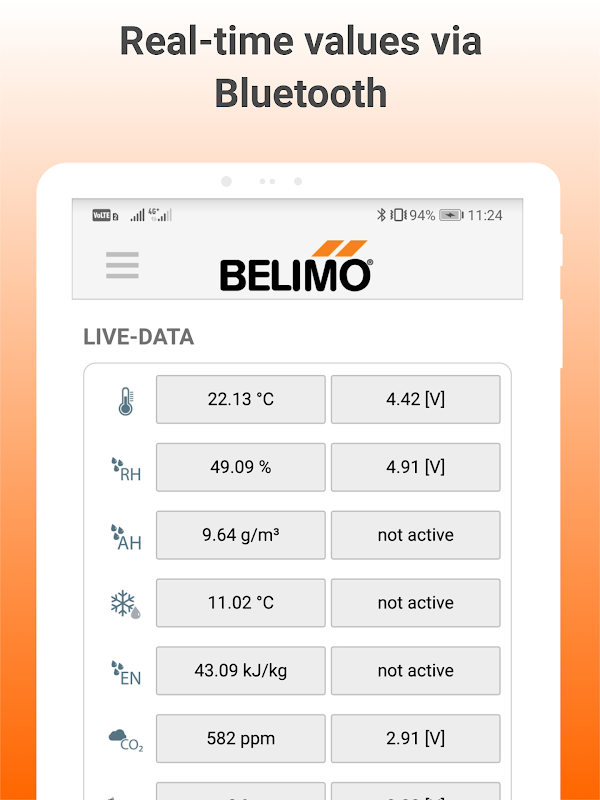

• Communication via Bluetooth BLE

• Bluetooth Dongle A-22G-A05 required, which will communicate with the sensor via a Micro-USB-connector

• Can be used for the following sensors: 22ADP-.., 22DTH-..5.., 22DTH-..6.., 22DC-..3, 22DC-.., 22DTC-.., 22DTM-.., 22DCV-.., 22DCM-.., 22DCK-.., 22UTH-..50X, 22UTH-..60X

• Supported languages DE, EN, FR, IT, ES, PT

Configuration options

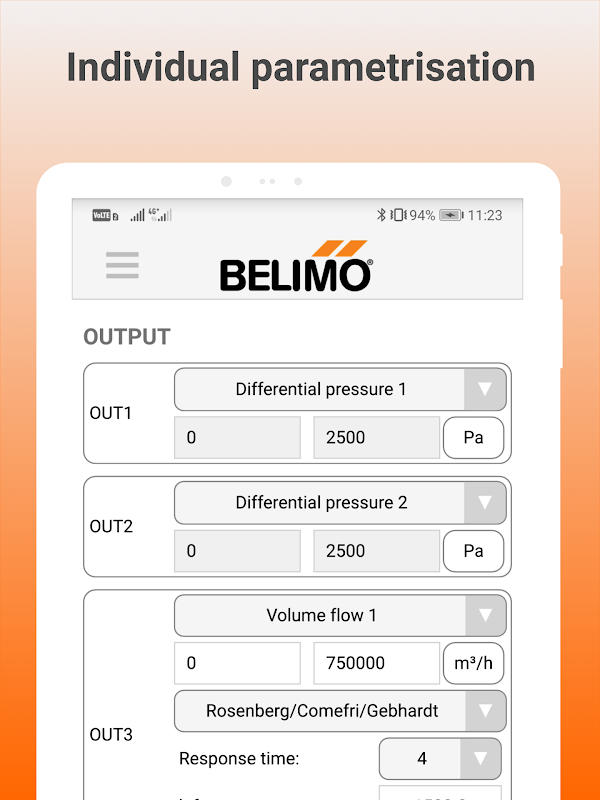

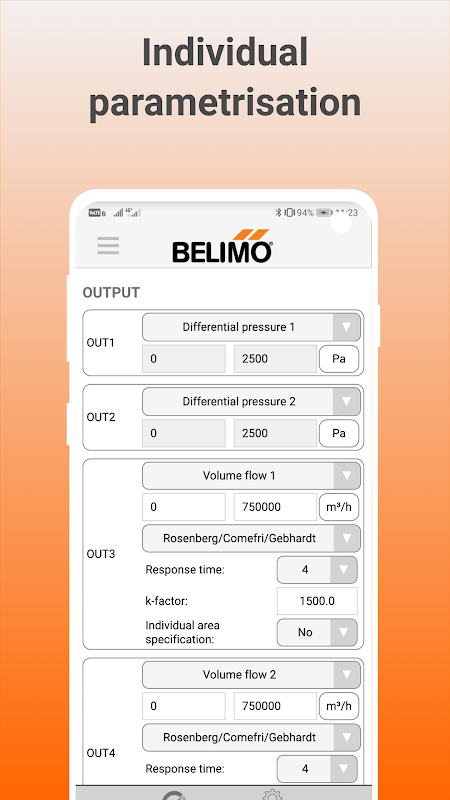

• Individual configuration of output signals

• Setting of different measuring ranges

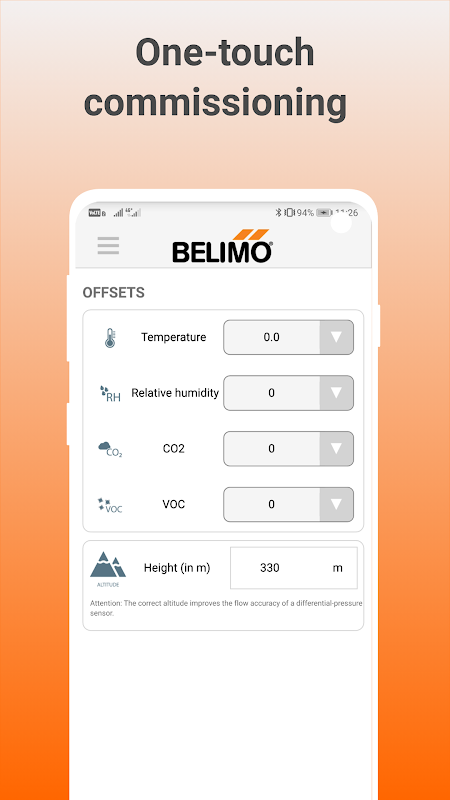

• Additional adjustment of offset values

• Parameterization of Live-Zero-Signal (2..10 V etc.) and the system of units

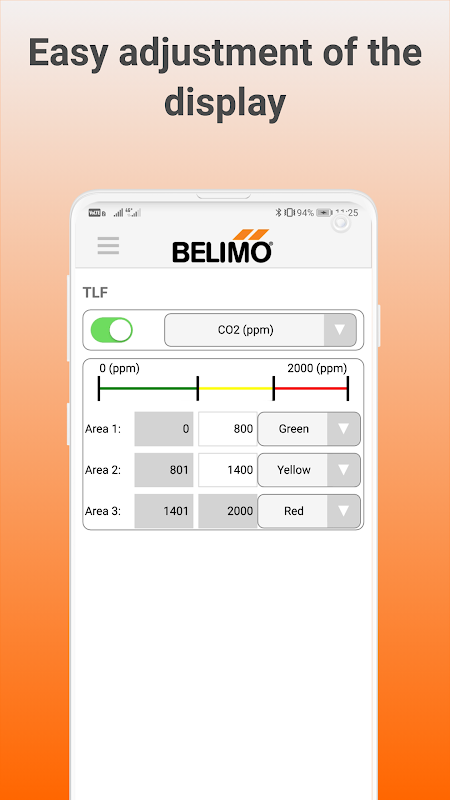

• Setting options for display indications

• Customized parameterization of traffic-light function (TLF)

• Extension of the physical Modbus address

• Store settings on the mobile device and load on other sensors

• Representation and output of the differential pressure as a volume flow value
