AudioTool

Developed by jjbunn, it focuses on practical sound checks rather than music creation. Users who download AudioTool get tools for reading room levels, checking speaker behavior, and studying frequency response in places like home theaters, cars, studios, and live venues. Its main appeal is the amount of real measurement data available on a phone, with the key tools outlined below.

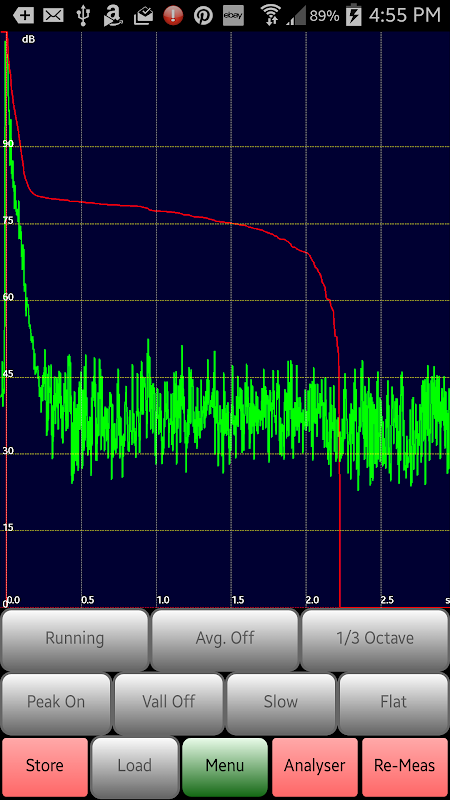

• SPL, Leq, Sone loudness, and RT60 measurements for sound checks.
• RTA Spectrum Analyzer with 1/1 to 1/12 octave views.
• Spectrogram, waterfall, peak frequency, and Chart Recorder display options.
• Signal generator for white noise, pink noise, sine, sweep, and impulse.
• Microphone calibration, speaker polarity checks, and saved spectrum comparison.

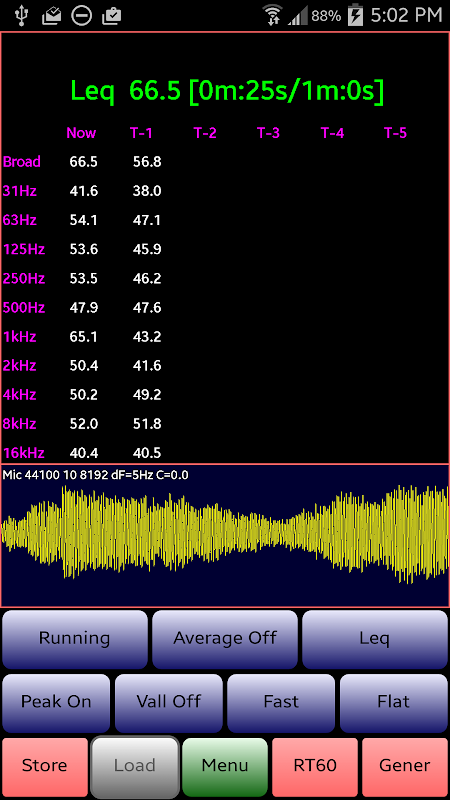

SPL Meter and Loudness Reading

The SPL Meter in AudioTool shows live dB readings for checking how loud a space, speaker, or system is at a given moment. It supports Flat, A Weighting, C Weighting, and X Curve options, which helps users view levels in different listening or measurement contexts. A home theater user, for example, can watch the reading while adjusting speaker volume, while a live sound user can follow level changes during a short room check.

The response options also make the sound level meter more flexible. Fast, Medium, Slow, and Impulse filtering change how quickly the display reacts to sound changes, with Slow being useful when a steadier reading is easier to follow. Measurements still depend on the phone microphone, so calibration is important when more than a rough reference is needed.

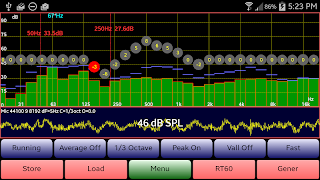

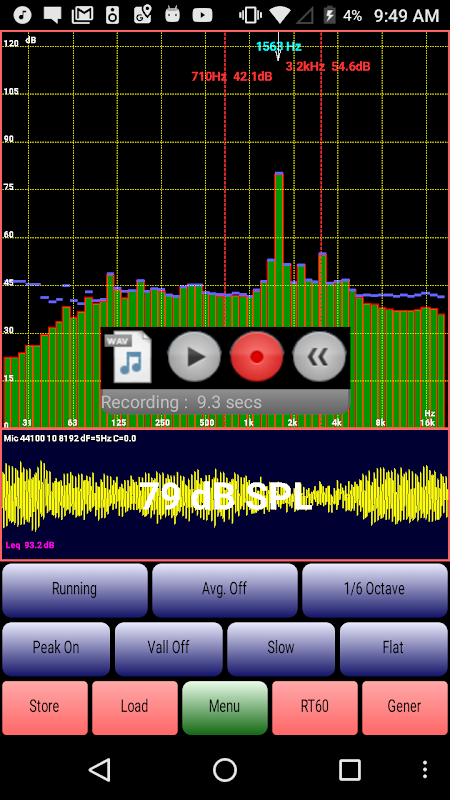

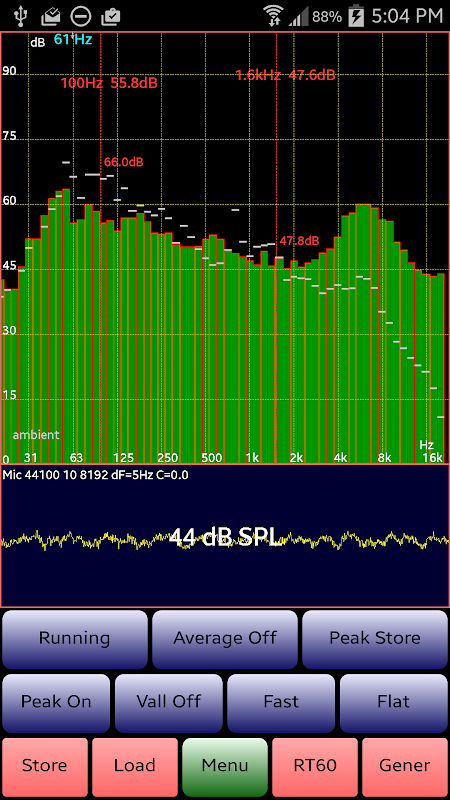

Octave RTA Spectrum Analysis

AudioTool gives users several RTA views for seeing how sound energy is spread across frequencies. The app supports 1/1, 1/3, 1/6, and 1/12 octave modes, as well as a full resolution spectrum view. This makes it useful when checking whether a speaker sounds too bass-heavy, whether a room has a clear peak, or whether a car audio setup has uneven response across the range.

The newer 1/12 Octave RTA mode adds a finer view for users who want more detail than common octave displays. Saved spectrum data can also be loaded and compared with live readings, which is helpful when testing a room before and after small placement or EQ changes. The interface includes touch controls such as zooming, dragging scales, and hiding buttons, but the main value is the quick visual comparison of frequency balance.

Real-Time Visual Monitoring

AudioTool includes several views that help users understand sound changes over time, not just at one instant. The Spectrogram presents frequency movement in a heatmap-like display, so a user can spot rising noise, tonal changes, or short bursts more clearly. The waterfall view and peak frequency display add more ways to observe how sound behaves during testing.

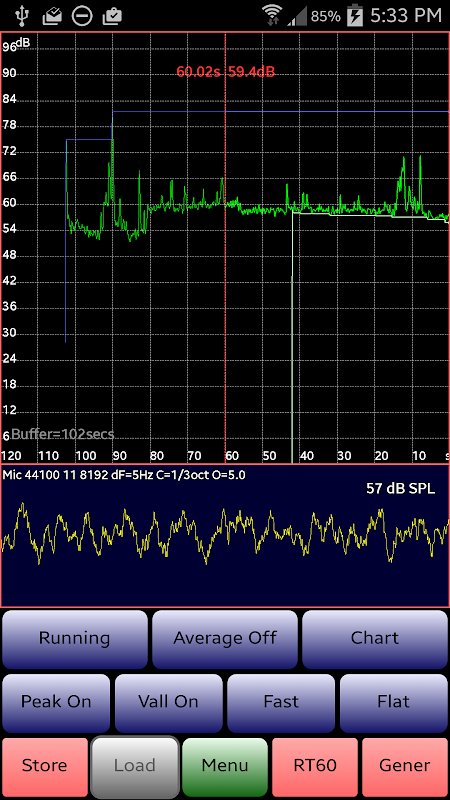

The Chart Recorder is especially useful for watching SPL trends over the last few minutes. In a room acoustics check, it can show whether background noise stays stable or jumps when equipment starts running. Cursor support also lets users inspect a specific SPL, time, or frequency point on the display, which makes recorded changes easier to read without turning the app into a complicated desktop tool.

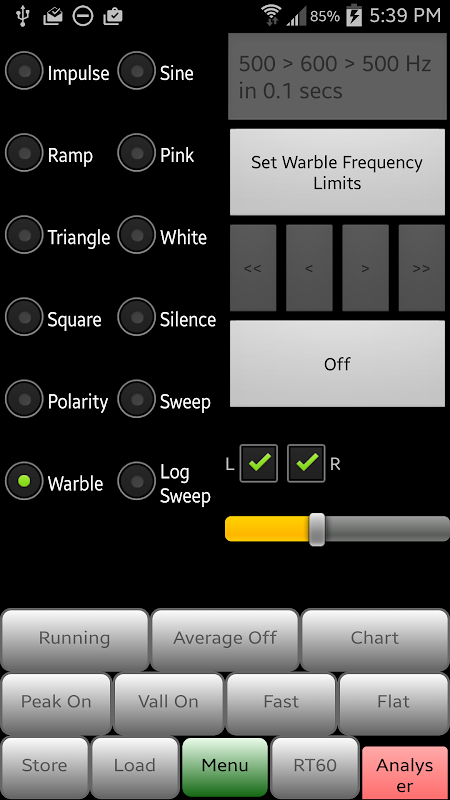

Signal Generator and Calibration Tools

The built-in generator in AudioTool produces white noise, pink noise, sine waves, sweeps, and impulse signals for controlled testing. These signals are useful when checking speakers, looking for room response issues, or sending a known sound into a system before reading the result in the RTA view. Pink noise, for instance, is commonly used when balancing speaker output across a listening area.

Calibration support is another important part of serious use. The app allows ISO 1/3 octave microphone calibration and supports some external microphone calibration files, while the Calibrate menu can adjust readings using a known sound pressure source. Speaker polarity checking is also available through the signal generator and RTA view, where results appear as polarity indicators. Phone microphones still have limits at high sound pressure or across the full frequency range, so an external microphone or dedicated SPL meter may be better for critical work.

AudioTool Pros & Cons

AudioTool stands out because it brings several audio measurement tools into one Android app, but its accuracy depends on the device and calibration setup.

• Covers SPL, RTA, RT60, loudness, and polarity checks.
• Multiple octave resolutions for different spectrum analysis needs.
• Saved spectrum comparison helps before-and-after testing.
• Useful for home theater, car audio, and live checks.

• Phone microphone quality affects measurement accuracy.
• Audio terms may feel difficult for beginners.
• External gear may be needed for serious measurements.

Download AudioTool APK

Users can download the AudioTool latest version from APKPure as an AudioTool APK for Android devices. Since package details can change by version, it is best to check the current file information on the download page before installing. On a stable connection, the download should be straightforward, though slower networks may take longer if the package is updated in the future.

After installation, users can open the SPL page first to confirm that the microphone is responding, then move to the RTA or Spectrogram views for deeper checks. For more dependable readings, calibrating with a known sound source or using a supported external microphone is recommended.
