CNC Bolt Pattern

CNC Bolt Pattern is an application for the CNC technology.

CNC Bolt Pattern calculates the hole positions at a bolt pattern / bolt circle.

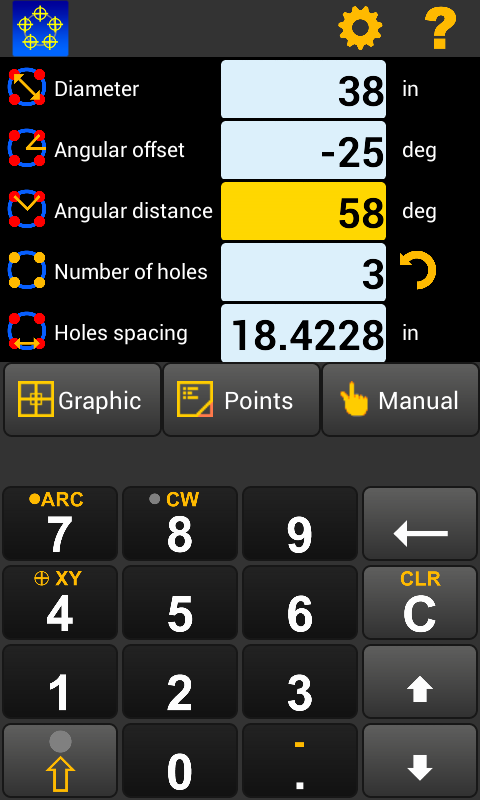

Input:

The inputfields can be filled in a different order.

Examples:

- Input of diameter and hole spacing calculates the number of holes.

- Input of number of holes and diameter calculates hole spacing.

- aso ..

Output:

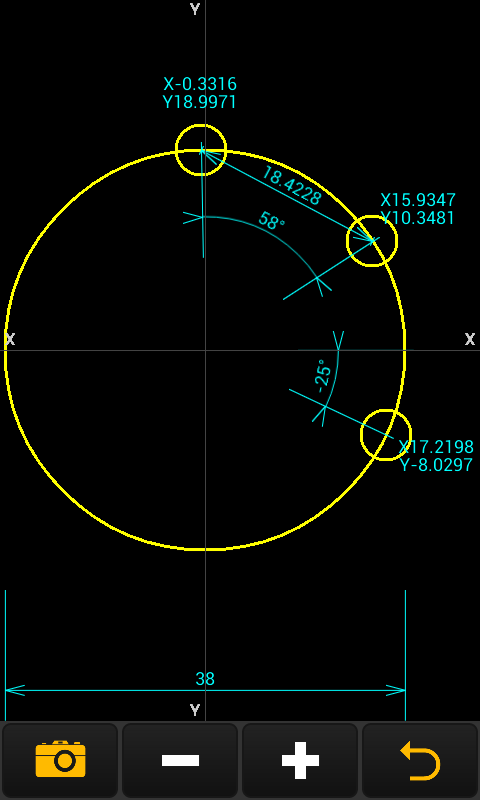

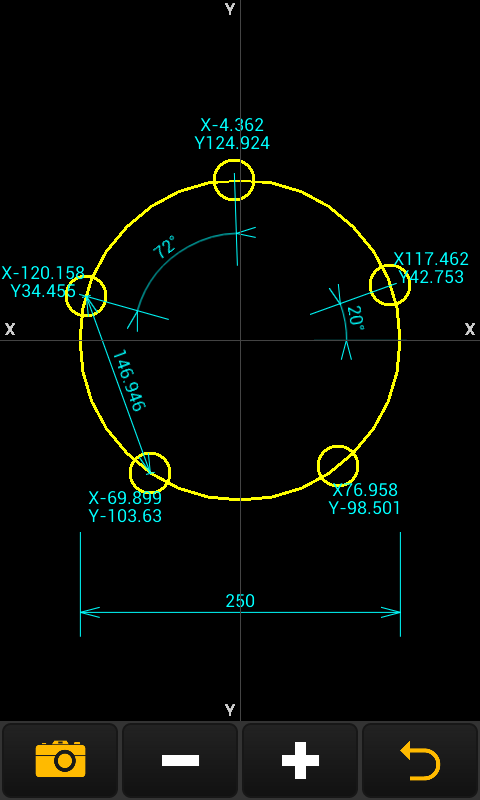

- Graphical preview

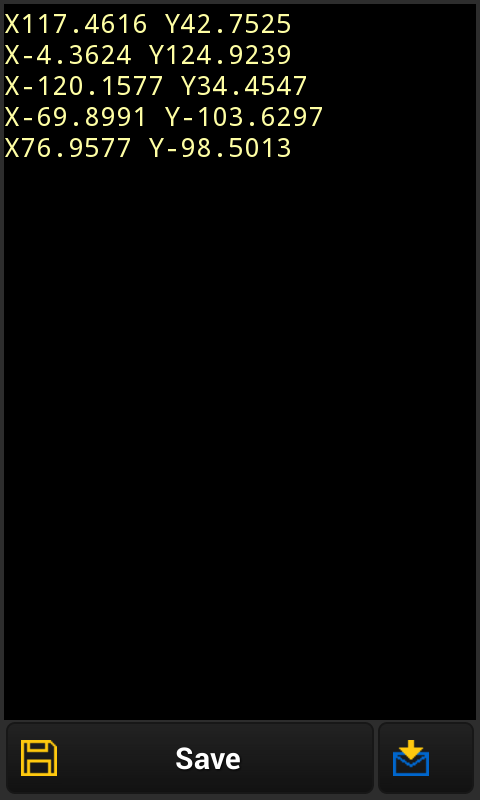

- Point list of the hole positions

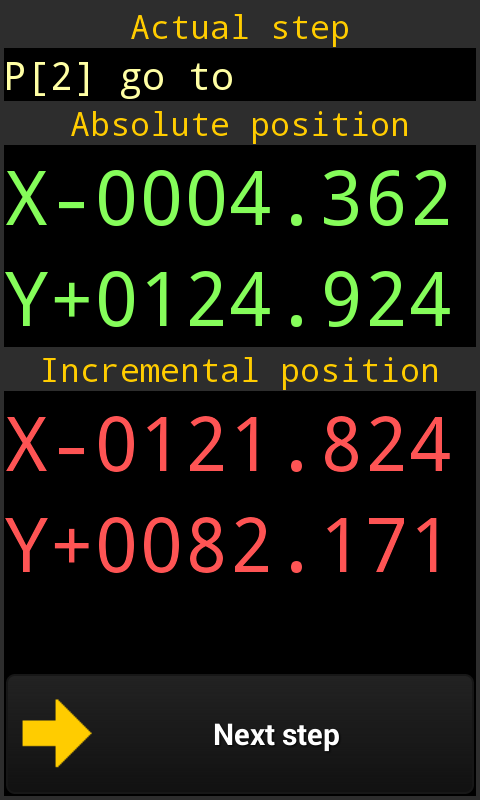

For users of a manual machine is the function "Manual" integrated. The hole positions (ABS or INC) can be approached step by step.
