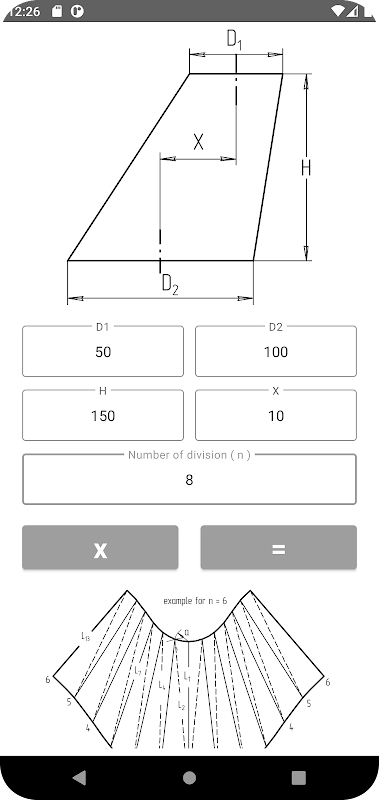

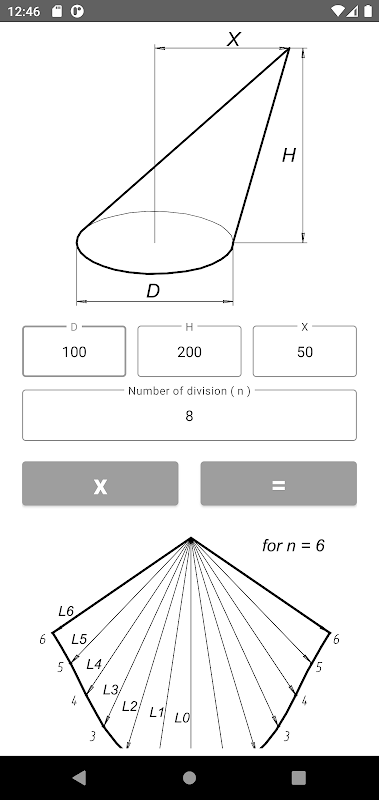

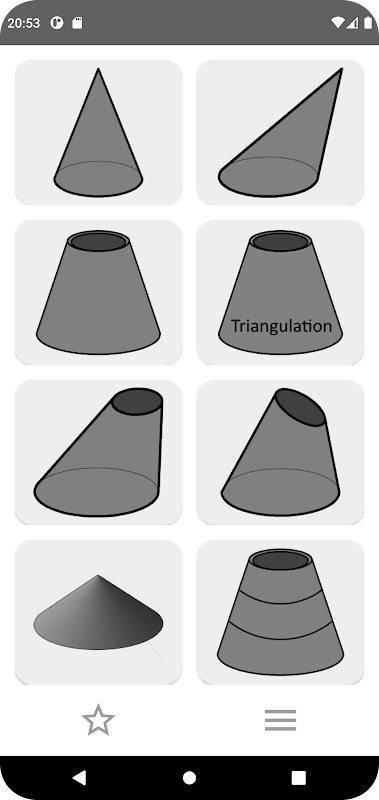

The flat pattern of a cone is an application that calculates the parameters for a development of a Full Cone, Half Cone , Truncated Cone , Concentric Cone, Frustum Cone, Eccentric Cone.

The cone is a widely used shape in the manufacture of transitions in ventilation, pipelines, pressure vessels, heat exchangers and tanks.

Flat pattern cone app is a very good tool for students, engineers and technicians. Using the sweep calculator, you can get all the necessary information about the cone.

If you need to make a cone, but you don’t want to count yourself, then I bring to your attention the calculation of the cone layouts. Using this calculation, cutting and assembling a cone will not be difficult. For creating a cone from sheet metal or any flat material.

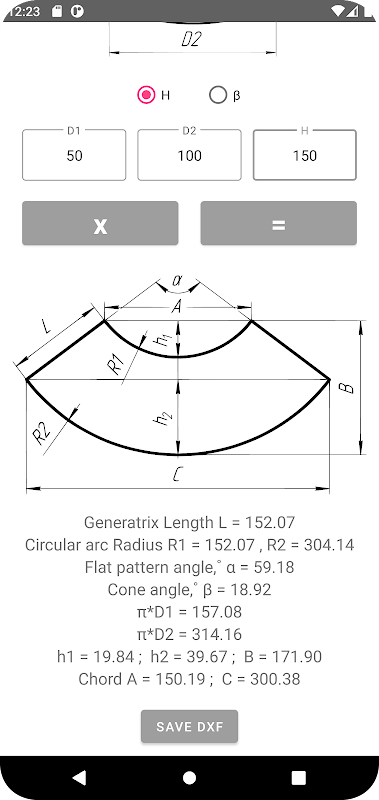

Added the function of saving the development of a straight and truncated cone to a DXF file. Export the flat pattern as a dxf file, then you can open it with any CAD program like Acad. You can use the dxf file to cut the sheet on a laser or cnc machine.

On the phone, you can open AutoCAD, DWG FastView, SchemataCAD viewer DWG/DFX, AutoDWG DWGSee.WGSee.
