GUI Maker for micro:bit

GUI Maker for micro:bit

RapidNack.com
Jun 12, 2018
  • 34.2 MB

    Taille de fichier

  • Android 4.4+

    Android OS

À propos de GUI Maker for micro:bit

Utilisation micro: bit en tant que capteur pour les applications. Vous pouvez utiliser Python pour afficher des graphiques, etc.

What is the purpose of this application?

This application uses micro:bit as Android external sensor and external LED. Iron Python can describe the processing of sensor data sent from micro:bit and the processing to display on LED.

What version of Android does this application support?

In order to use Bluetooth Low Energy (BLE) for the connection between micro:bit and Android, Android 4.4 or later, Bluetooth 4.0 or later is necessary.

What program should be written to micro:bit?

Using the JavaScript block editor on the micro:bit site, create the program that incorporates the Bluetooth services and write it to micro:bit. At that time, you need to replace the Radio package with a Bluetooth package with [Advanced] -> [Add Package].

(Please refer to the help screen of the application for details of the program)

How can I receive data from micro:bit?

In the Panel setup script area, write the following event handler that receives the received data.

def temperatureReceived(temperature):

    print 'Temperature:', temperature

Please refer to the panel setup script area of each sample panel.

How do I change the display of micro:bit LED?

if MicroBit.IsConnected:

    MicroBit.WriteLEDText(‘Hello!’)

if MicroBit.IsConnected:

    MicroBit.WriteLEDMatrixState((0b11111, 0b11111, 0b11111, 0b11111, 0b11111))

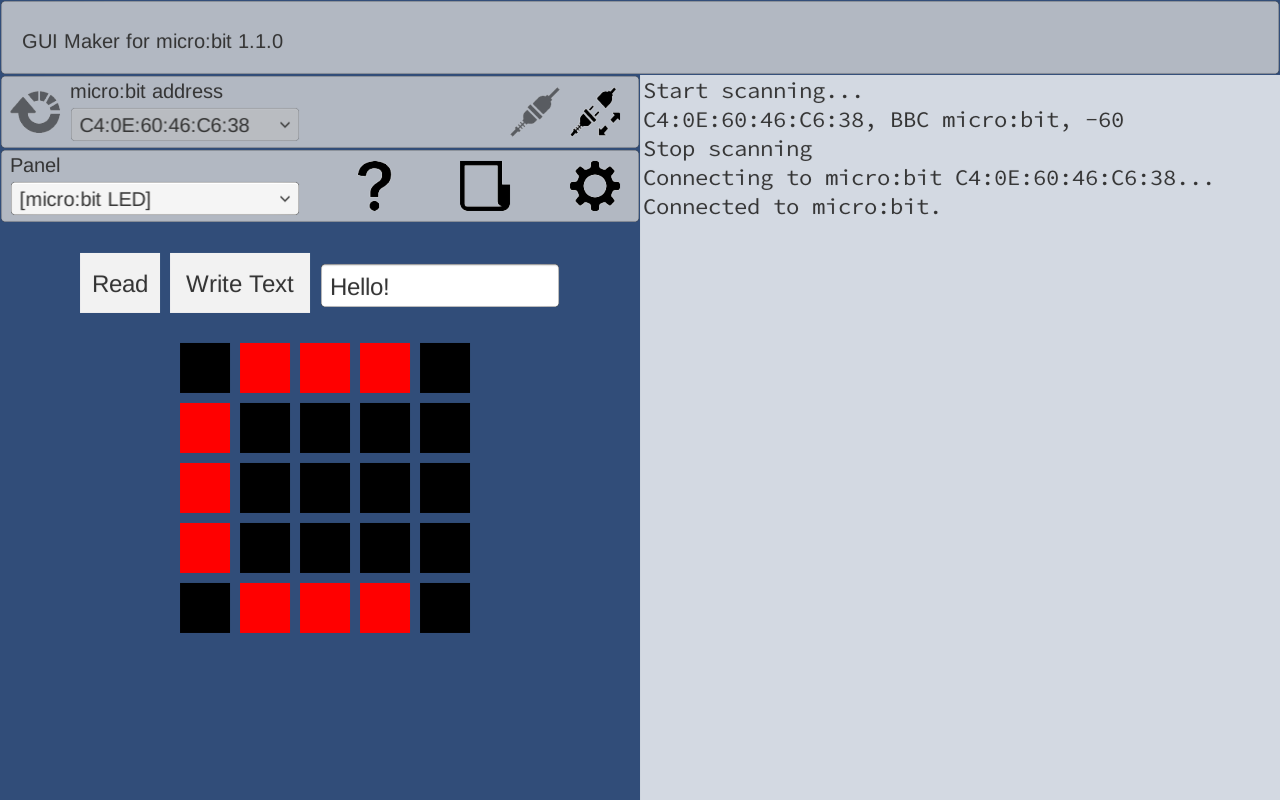

Please refer to the LED sample panel.

Voir plus

What's new in the latest 1.2.3

Last updated on 2018-06-12
Changed to save contents when exiting edit mode
Voir plus

Vidéos et captures d'écran

  • GUI Maker for micro:bit Affiche

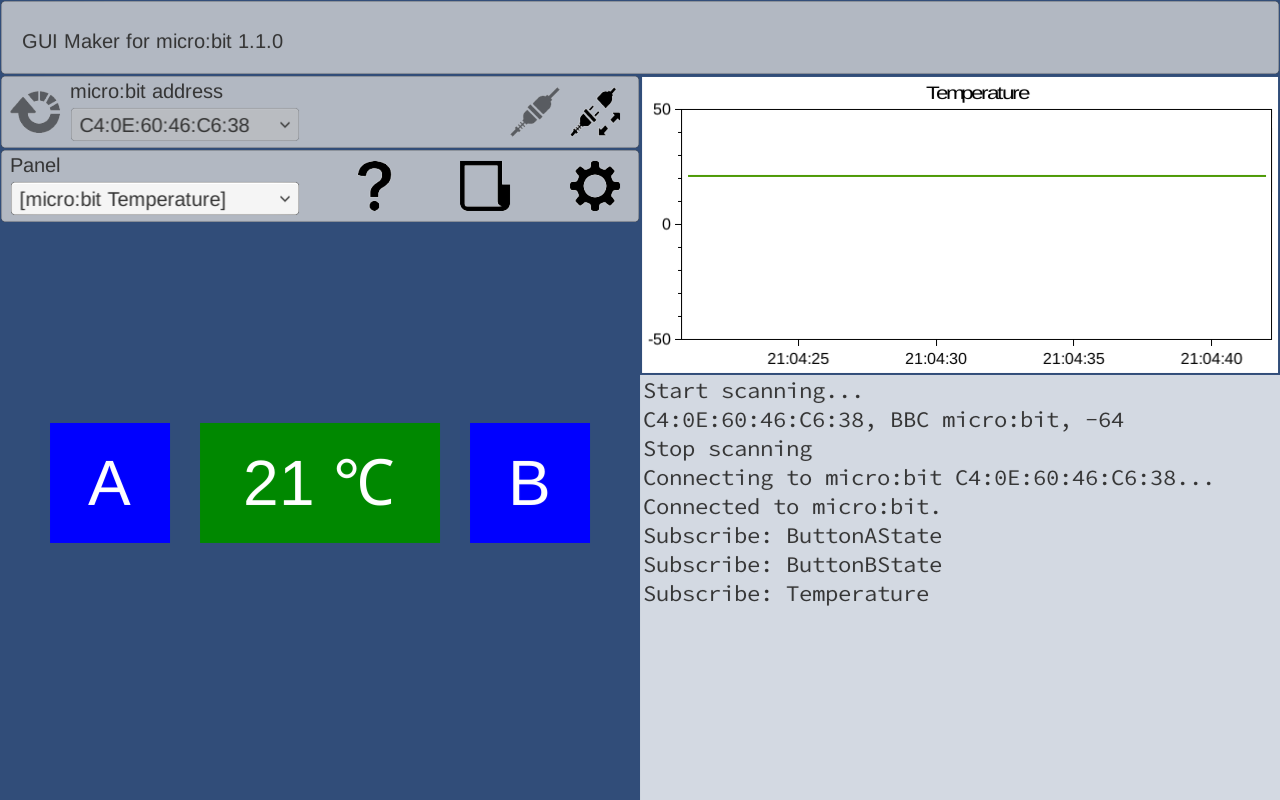

  • GUI Maker for micro:bit capture d'écran 1
  • GUI Maker for micro:bit capture d'écran 2
  • GUI Maker for micro:bit capture d'écran 3
  • GUI Maker for micro:bit capture d'écran 4
  • GUI Maker for micro:bit capture d'écran 5
  • GUI Maker for micro:bit capture d'écran 6
  • GUI Maker for micro:bit capture d'écran 7
