PipingData

With version 2.8.5, PipingData reaches a major milestone and becomes the reference micro-software for pipefitters and boilermakers.

Discover the power of data visualization for pipe layout and industrial fabrication. Explore results instantly by hovering over piping components (elbows, reducers, branch connections), combined with a clean, intuitive and modern interface.

Print your layout templates directly from the interface or share them as PDF files, with precise control over the number of generators (4, 8, 12, 16, 24, 32).

MODULES & FEATURES:

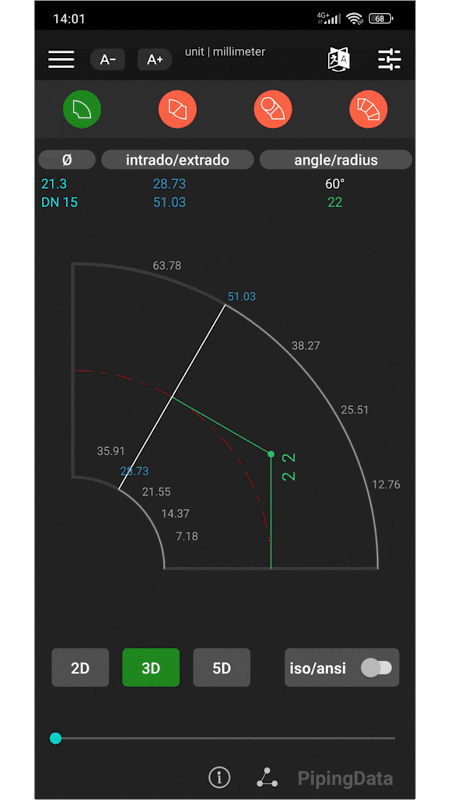

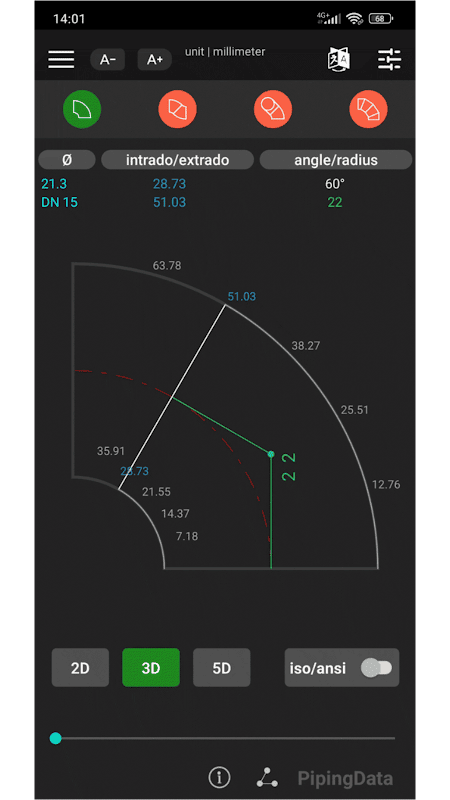

• Interactive elbow,

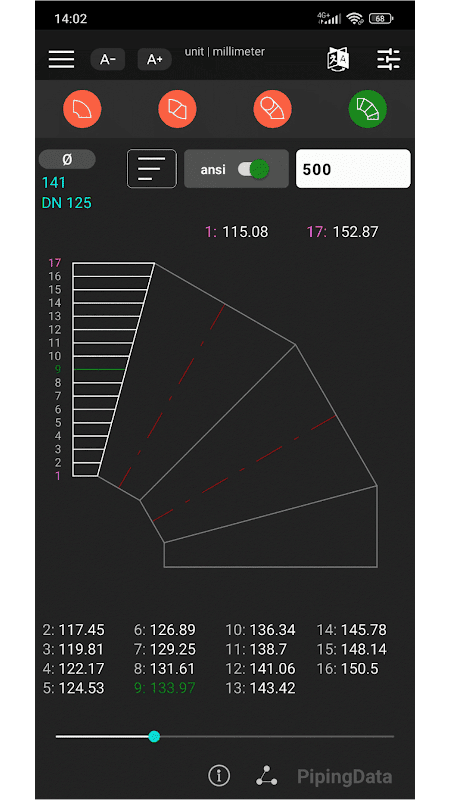

• segmented elbow,

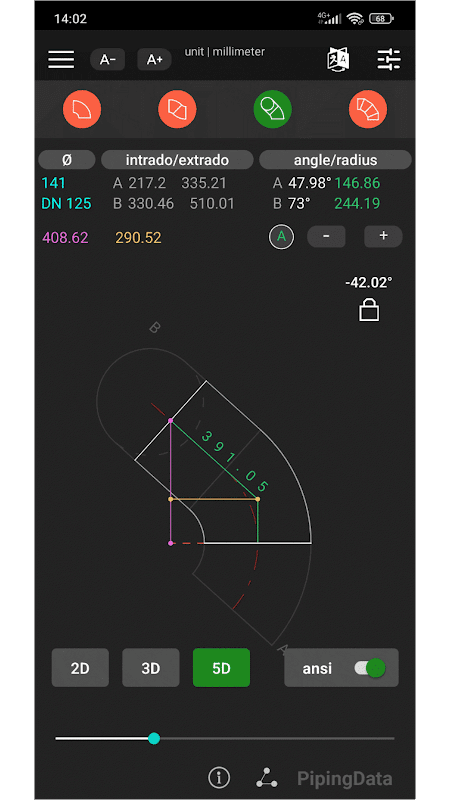

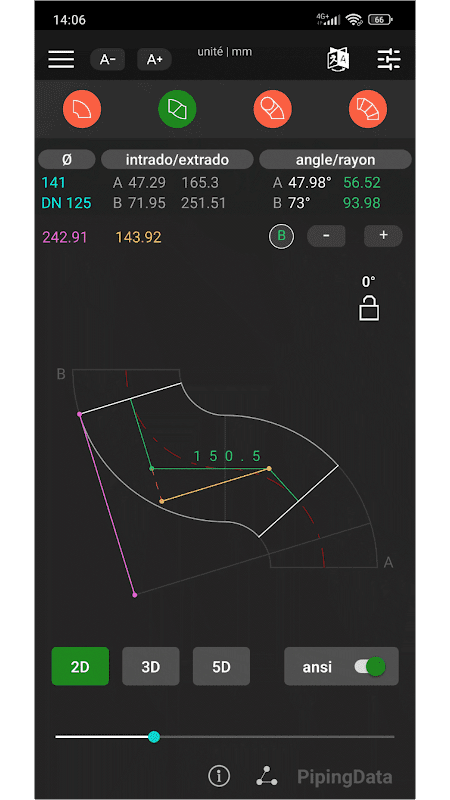

• Interactive double elbows in the same plane and oriented double elbows

• Concentric and eccentric reducers

• Straight and inclined branch connections (same and different diameters)

• Branch connections with PDF template export and printing

• Dynamic data exploration (Data Visualization) with automatic angle optimization according to the hovered area

SETTINGS & ERGONOMICS:

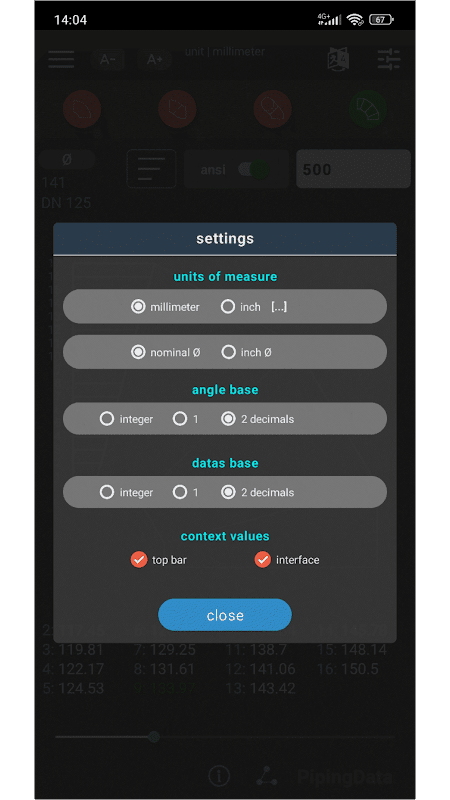

• Adjustable calculation precision (0, 1 or 2 decimal places)

• Automatic Inch / mm conversion, integration of SMS, ISO and ANSI diameters

• Visual comfort on site: adjustable font sizes and adapted contrast

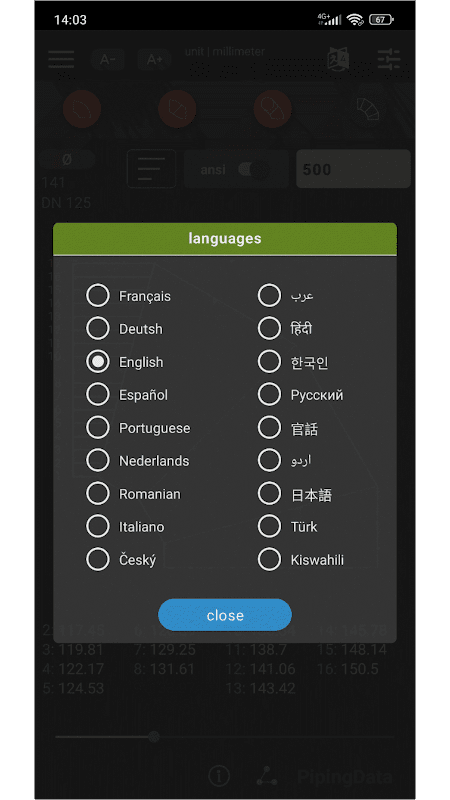

• Application available in 19 languages (including French, English, Hindi, Arabic, Mandarin, Russian, Spanish...)

DOCUMENTATION & UTILITIES:

• Download and print technical documents: charts, isometric grid sheets (with or without bill of materials)

• Links to useful resources for the industrial piping sector

Developed around three fundamental principles for ultra-fast results in the field: Flat Design, Data Visualization and Ergonomics.

Any comments or suggestions?

Contact: [email protected]
