PipingData

With version 2.4.2, PipingData is now available in 18 languages. Discover the power of data visualization: explore results instantly by hovering over piping accessories, combined with a flat design, a clean and intuitive interface, optimized for a modern experience.

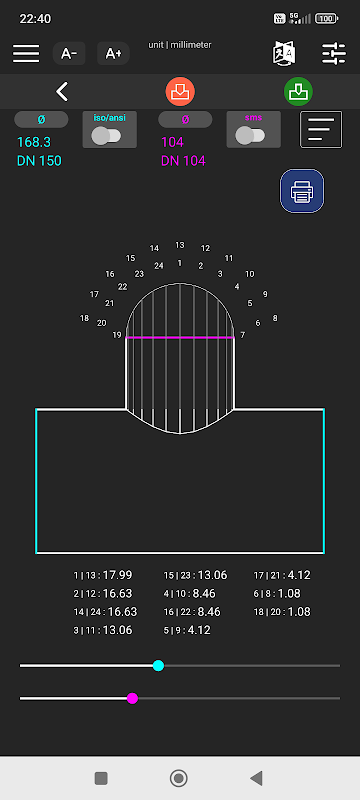

Branch connections are now available, with the ability to print templates directly from the print interface and/or share them as PDF, with selectable generators (4, 8, 12, 16, 24, 32).

Features

Interfaces:

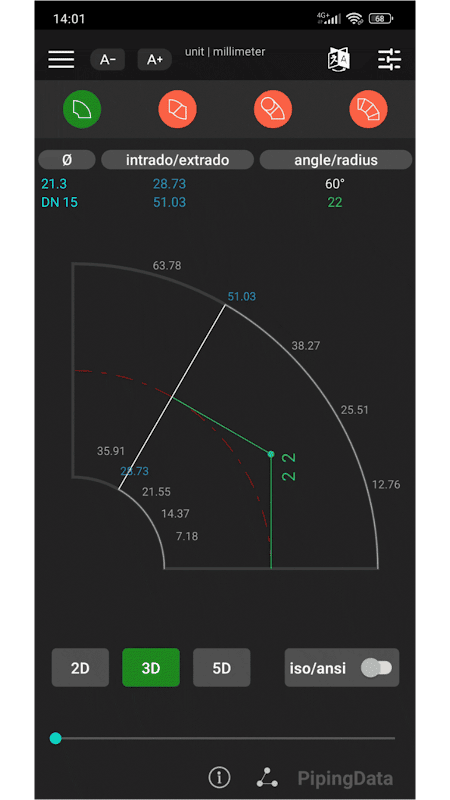

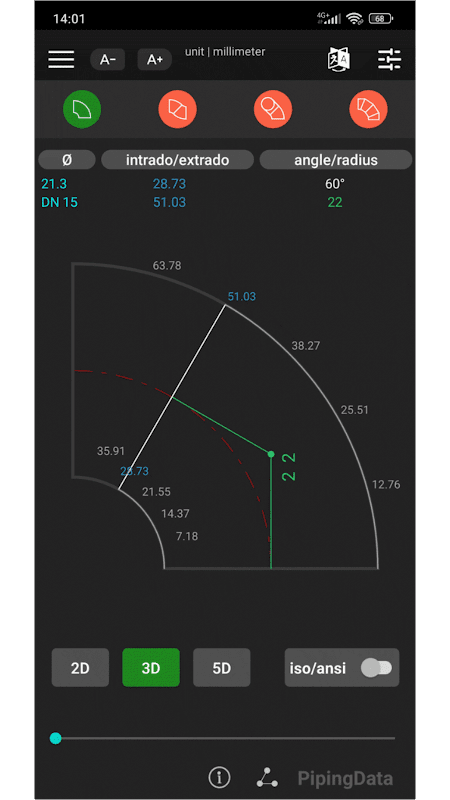

Interactive elbow

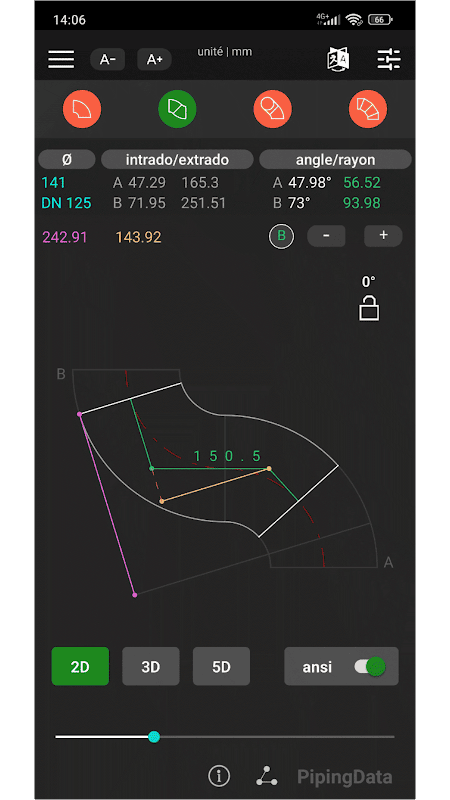

Interactive double elbows on the same plane

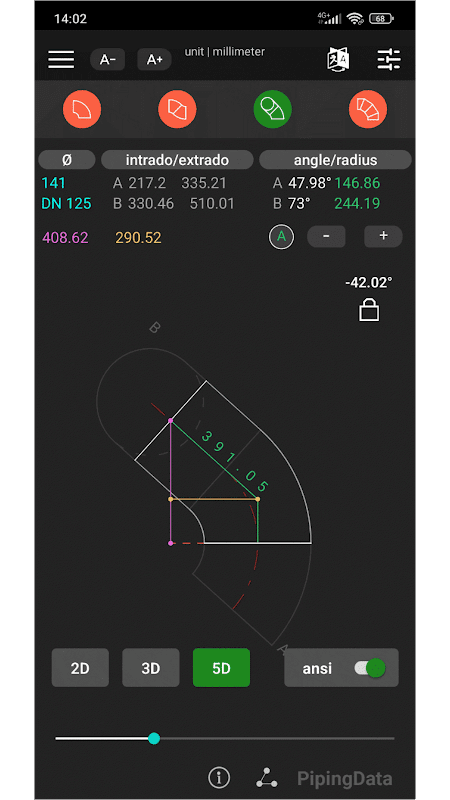

Interactive oriented double elbows

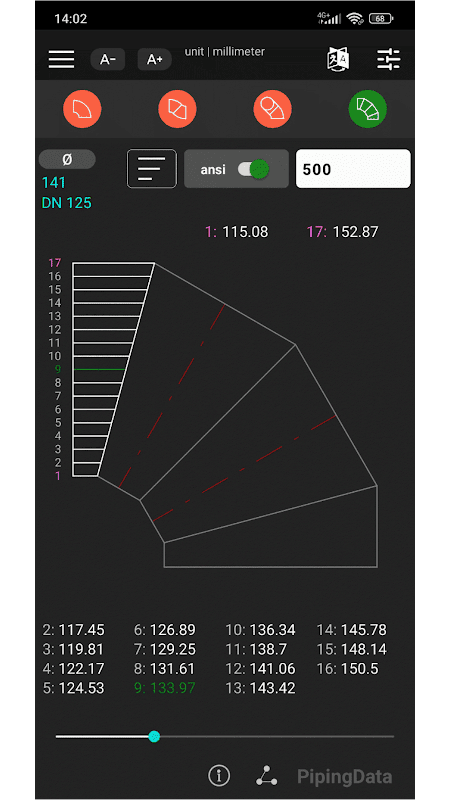

Interactive sliced elbow

Concentric and eccentric reducer

Straight branch (same diameter)

Straight branch (different diameters)

All interfaces use a flat design with data exploration by hovering. Angles are optimized based on position and hover area. This process is called DATA VISUALIZATION.

Settings:

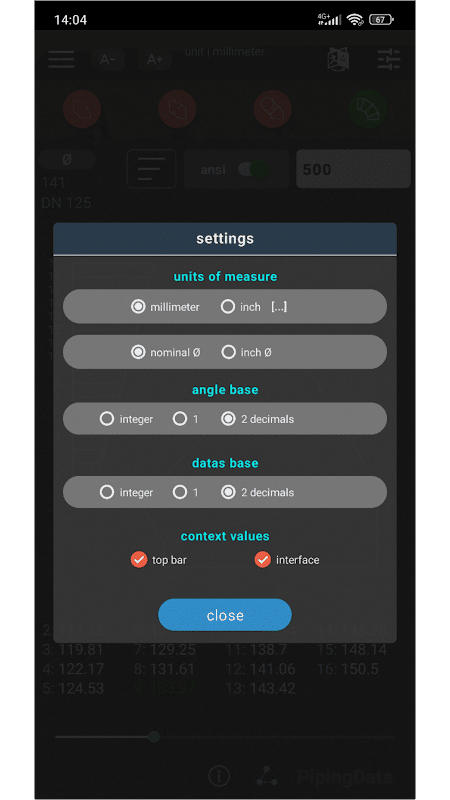

Accurate numerical data (one or two decimals), integer angles.

Soft colors for visual comfort, adjustable font sizes.

Inch / mm conversion.

Languages:

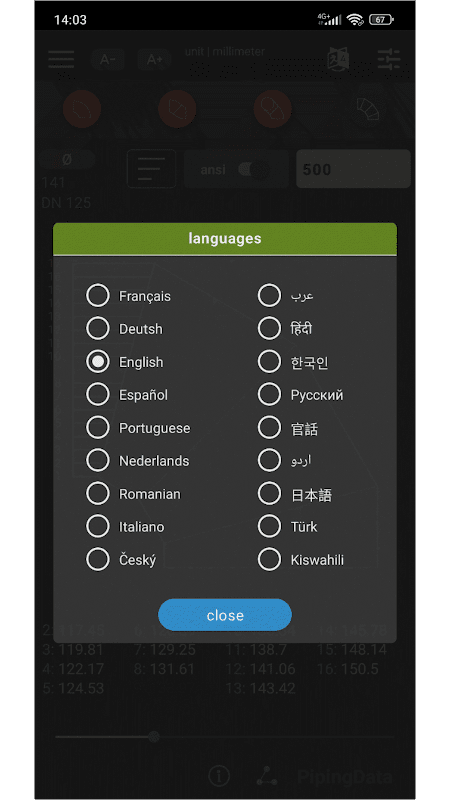

18 languages available, English is the default.

Utilities:

Download section: documents to download / print / share (ABAC charts, isometric sheets with or without bill of materials).

Links to useful websites.

Improvements:

Added SMS diameters

Optimized graphic layout

Performance improvements

Developed around three core principles:

Flat design – Data visualization – Ergonomics
