PipingData

With version 2.4.8, PipingData is now available in 19 languages. Discover the power of data visualization. Explore results instantly by hovering over piping accessories, combined with a flat design, a clean and intuitive interface, optimized for a modern user experience.

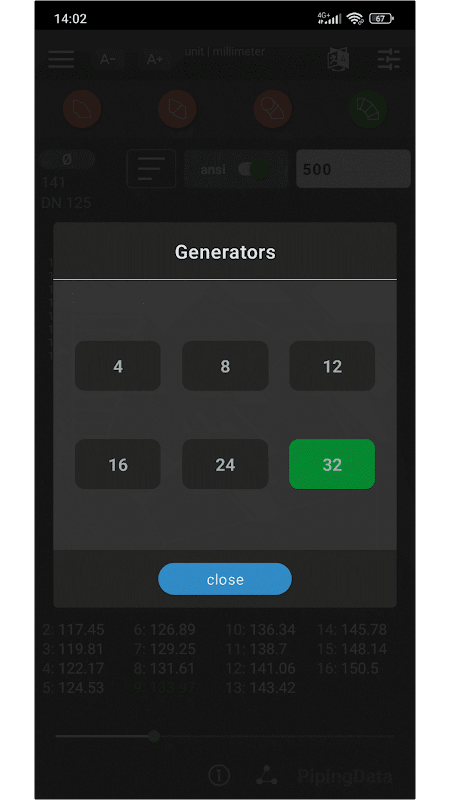

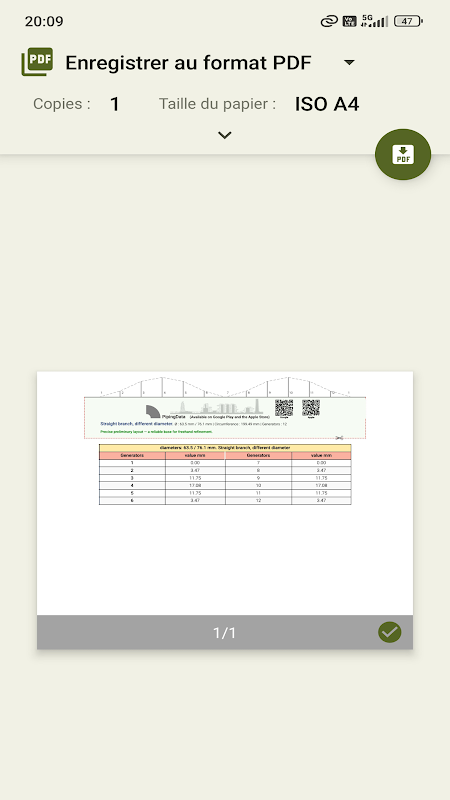

Branch connections are now available, with the ability to print templates directly via the print interface and/or share these templates as PDF files, with a choice of generators (4, 8, 12, 16, 24, 32).

Features

Interfaces:

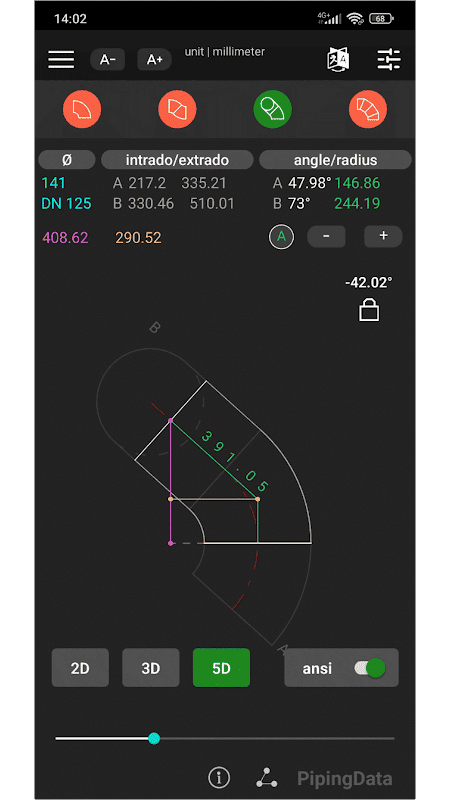

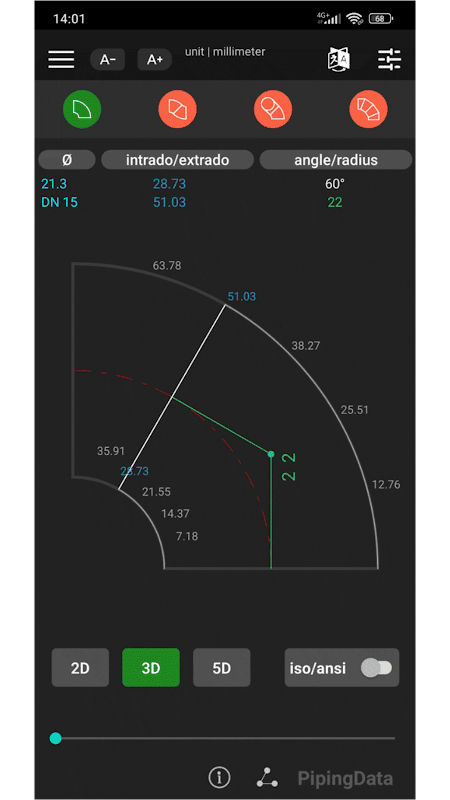

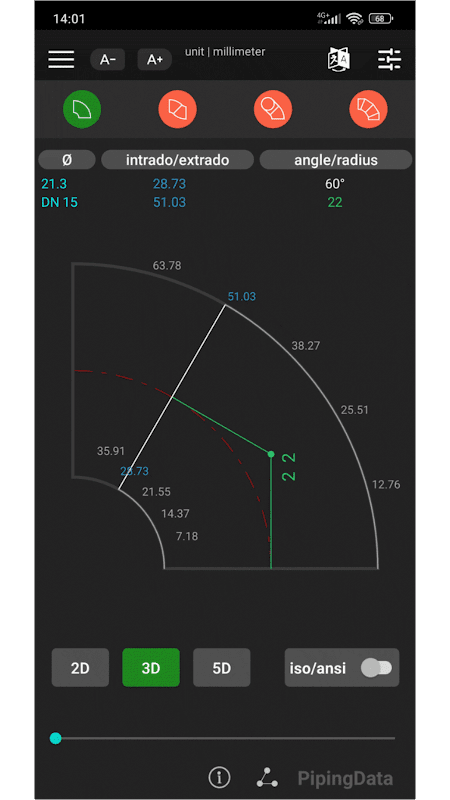

Interactive elbow

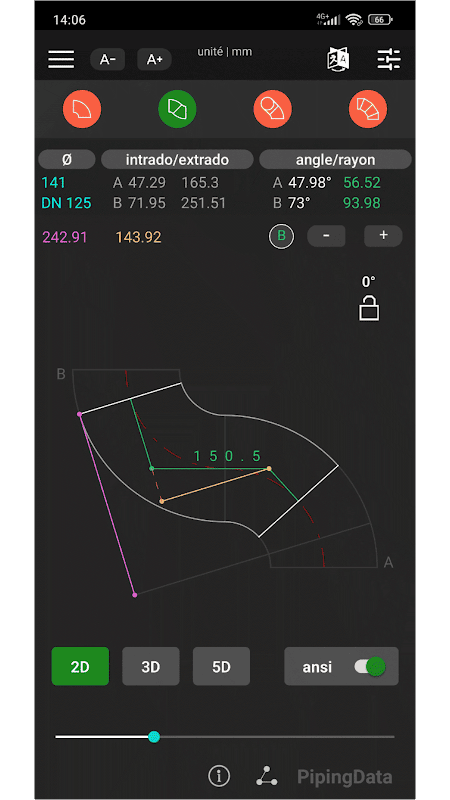

Interactive double elbows on the same plane

Interactive oriented double elbows

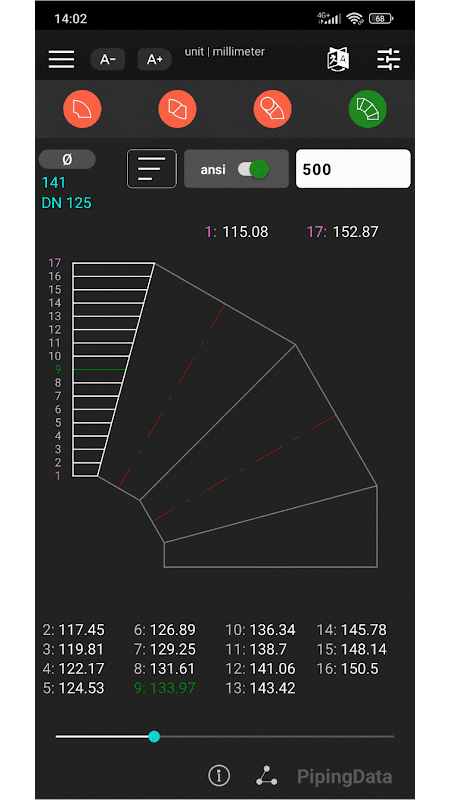

Interactive segmented elbow

Concentric and eccentric reducer

Straight branch (same diameter)

Straight branch (different diameter)

All interfaces adopt a flat design with data exploration by hovering over the elbows. Angles are optimized according to cursor position and the hovered area. This process is called DATA VISUALIZATION.

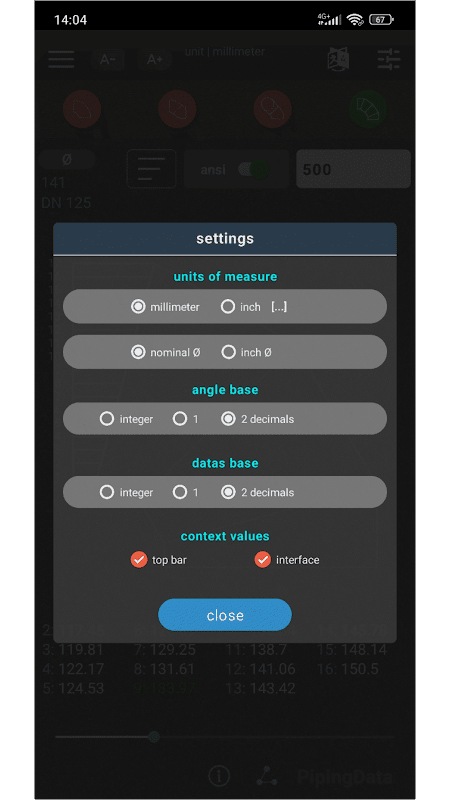

Settings

Use numerical data with one or two decimal precision, as well as integers for angles and values

For visual comfort, colors are subtle, with the ability to adjust font sizes

Inch/mm conversion

Saving the preferred language

Languages

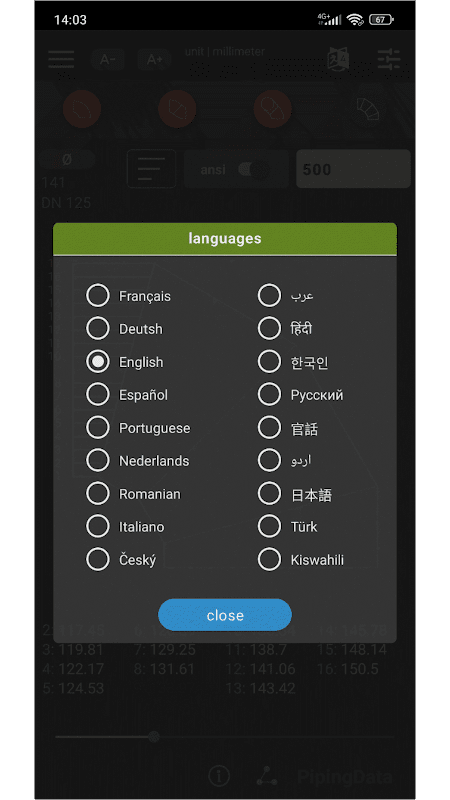

You can choose from 19 languages (Polish added), with English as the default language (see screenshots).

Utilities

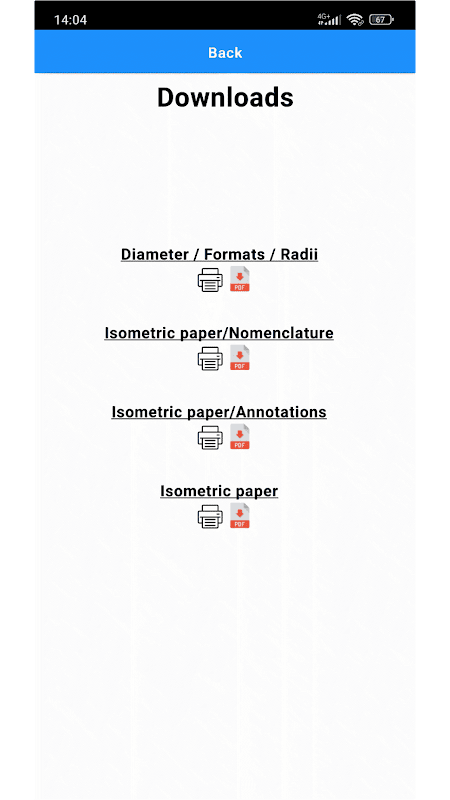

The Download section offers documents to download / print / share (ABAC tables, isometric sheets with or without nomenclature).

Links to useful websites are also available.

Improvements

Addition of SMS diameters

Optimal layout of graphical elements

Performance improvements

This application has been developed according to three fundamental principles, with the aim of minimizing interactions to achieve fast and optimal results:

Flat design

Data visualization

Ergonomics

If you have suggestions or comments about the application, you can contact support by email:

[email protected]
