Basic Electronic Circuits Calc

Dzięki tej aplikacji można obliczyć podstawowe działania tranzystora.

With this Application you can calculate basic transistor operations.

As an electronic caluclation application, It offers,

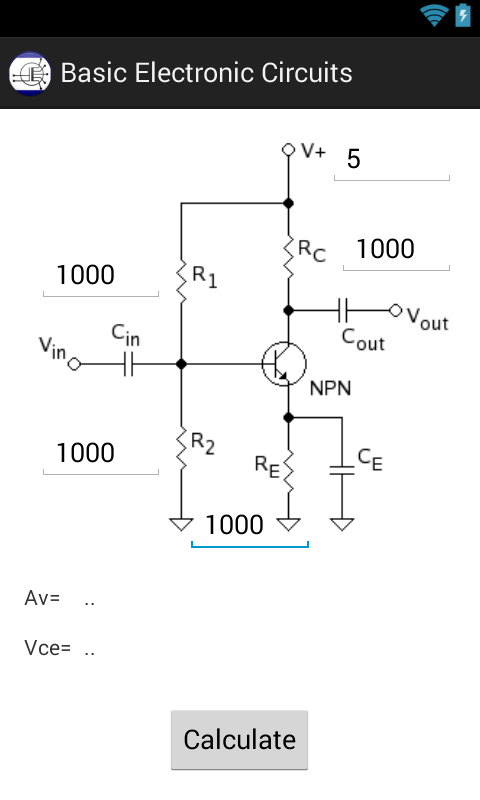

Common Base Transistor Circuit,

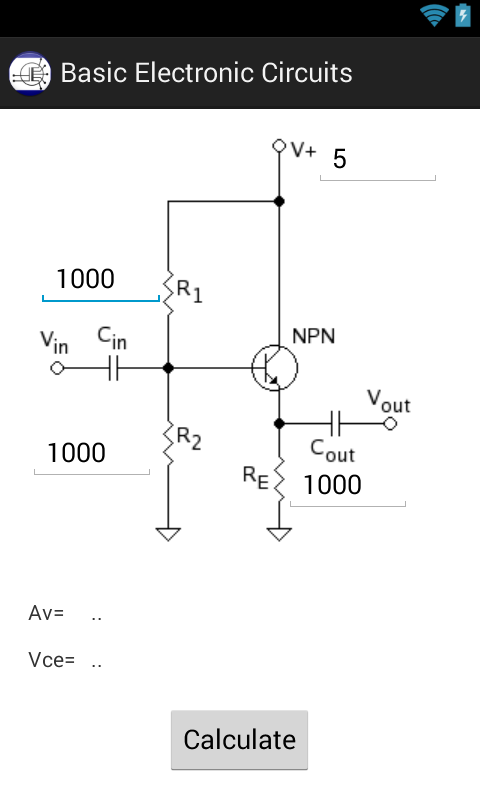

Common Collector Transistor Circuit,

Common Drain Transistor Circuit,

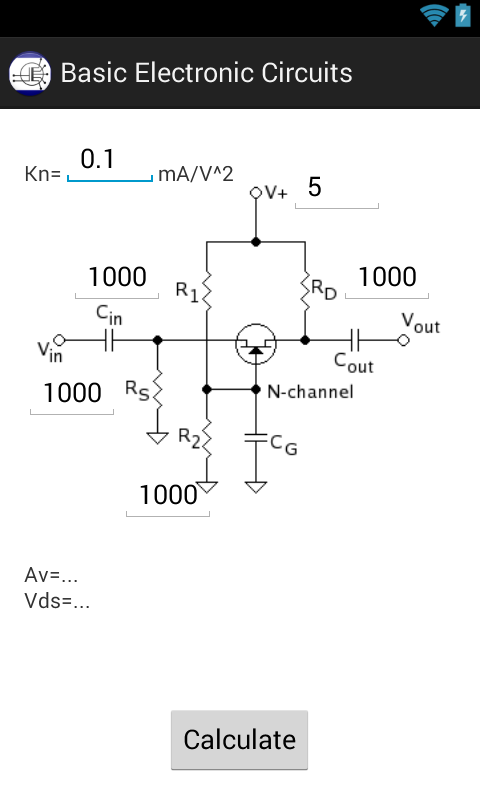

Common Gate Transistor Circuit,

Common Source Transistor Circuit,

Calculations of Output/Input Voltage Gain (Av)

and Voltage between output pins.

MOSFET and BJT Transistors included.
