Basic Electronic Circuits Calc

С помощью этого приложения вы можете рассчитать основные операции транзисторные.

With this Application you can calculate basic transistor operations.

As an electronic caluclation application, It offers,

Common Base Transistor Circuit,

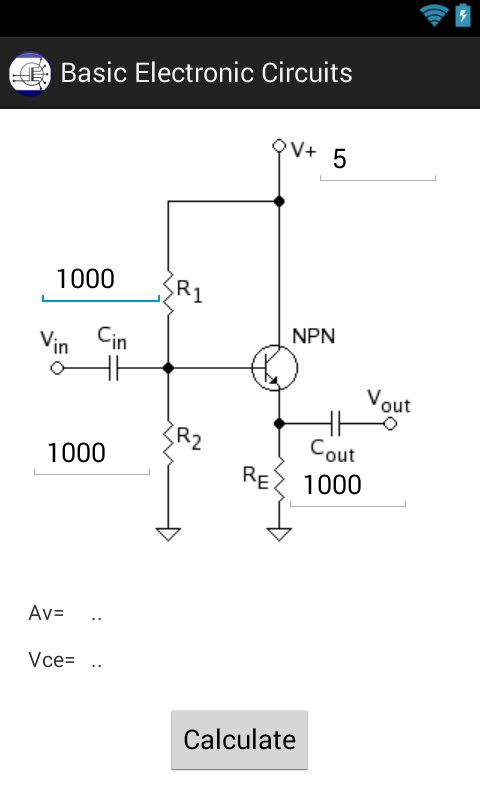

Common Collector Transistor Circuit,

Common Drain Transistor Circuit,

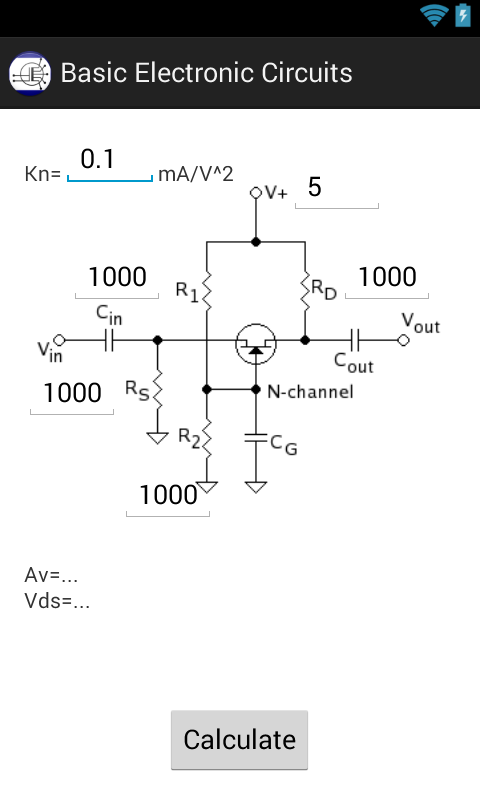

Common Gate Transistor Circuit,

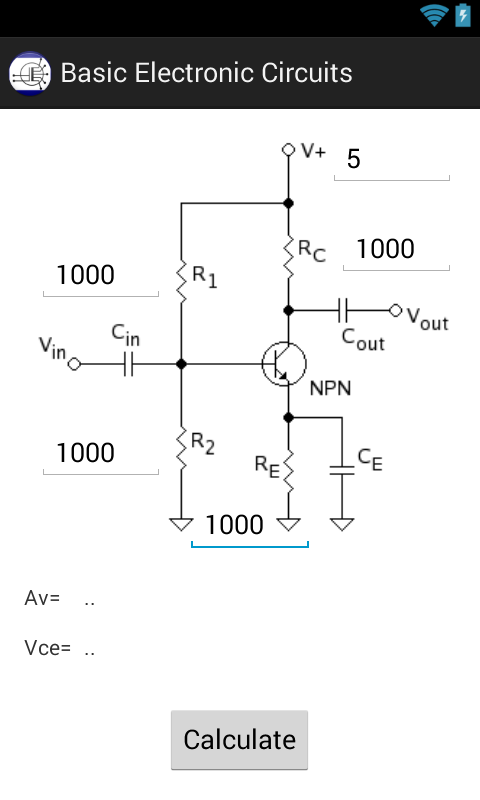

Common Source Transistor Circuit,

Calculations of Output/Input Voltage Gain (Av)

and Voltage between output pins.

MOSFET and BJT Transistors included.
