Basic Electronic Circuits Calc

مع هذا التطبيق يمكنك حساب عمليات الترانزستور الأساسية.

With this Application you can calculate basic transistor operations.

As an electronic caluclation application, It offers,

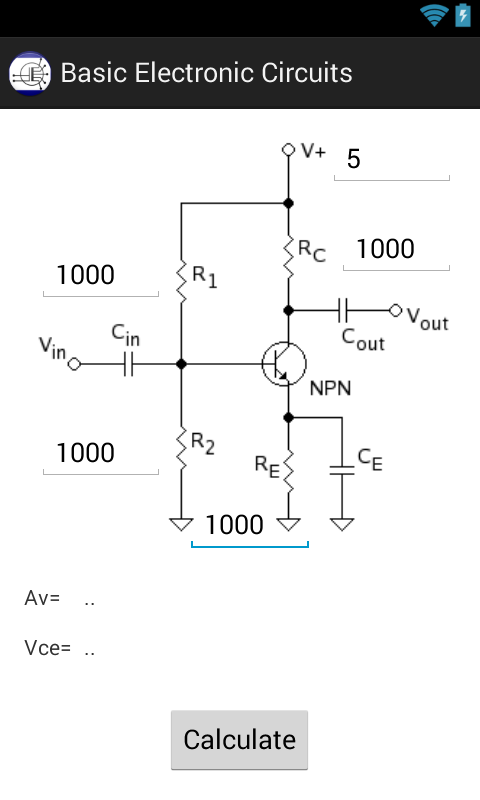

Common Base Transistor Circuit,

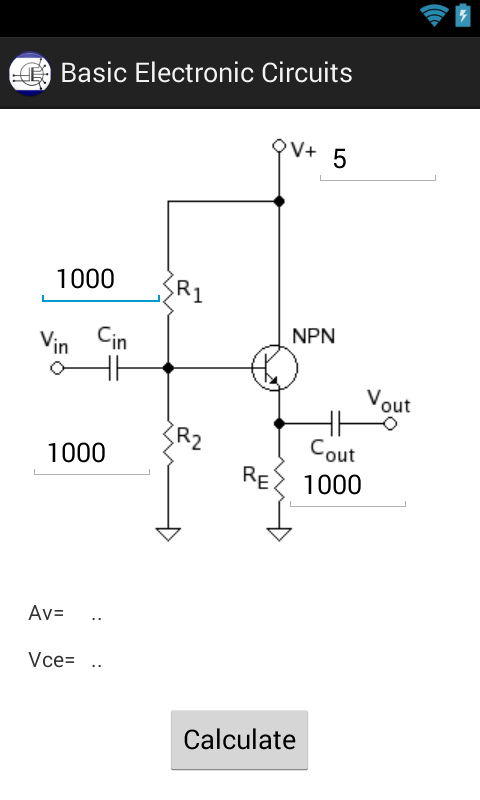

Common Collector Transistor Circuit,

Common Drain Transistor Circuit,

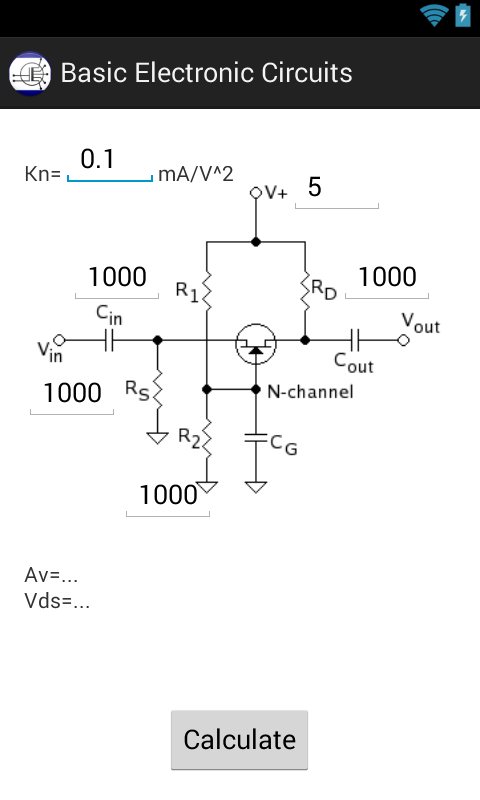

Common Gate Transistor Circuit,

Common Source Transistor Circuit,

Calculations of Output/Input Voltage Gain (Av)

and Voltage between output pins.

MOSFET and BJT Transistors included.
