Rock Conveyor Lite (R.C.L)

This application will help those who work on the bulk conveyor belt or the designer or anyone interested in the conveyor belt to work faster.

Users can easily add various values with the standard conveyor belt design process.

This application supports two languages, (Thai and English)

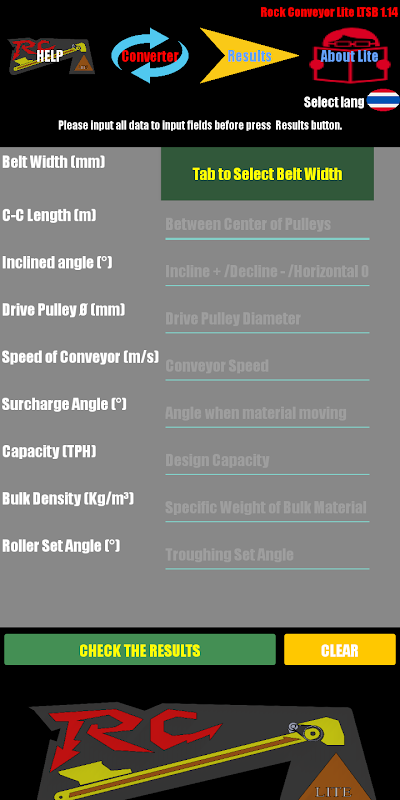

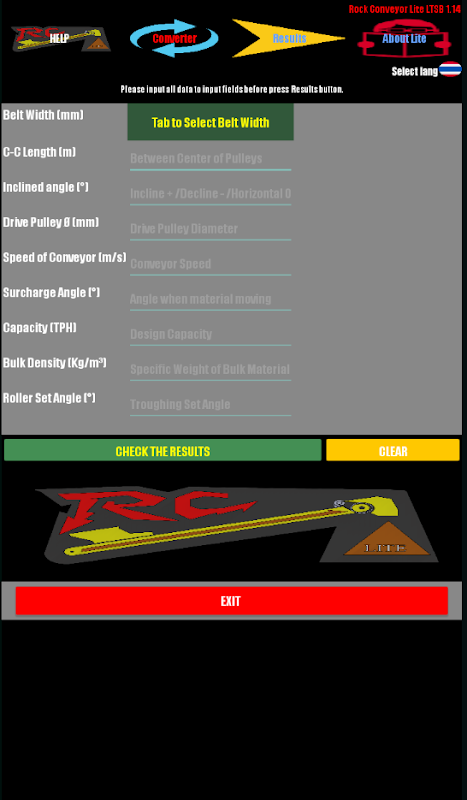

The user can select a standard belt width from 500 mm to 2400 mm and input design values and then they can check the results for works in the next step.

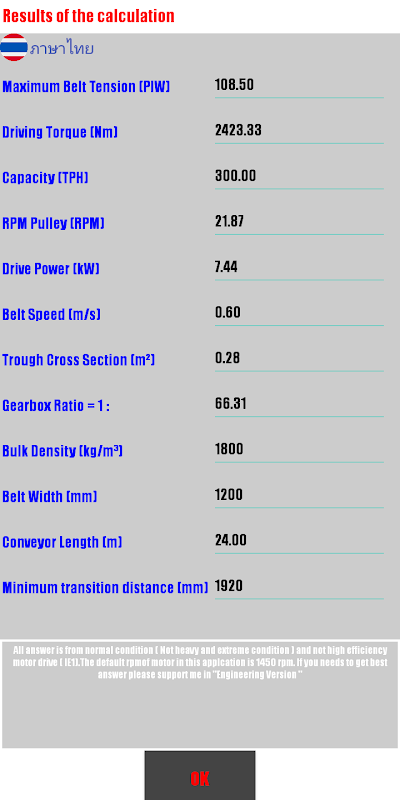

The app can help you to get an answer about

1.Belt tension.

2.Torque for drive pulley.

3.Capacity

4.Drive pulley RPM

5. Drive power for drive pulley.

6.Belt velocity.

7.Area of the cross-section of the conveyed material on the moving belt.

8.Gearbox ratio.

9.Bulk density.

10.Belt width.

11.Length of the conveyor.

12.Units converter.

13.Transition distance

** Warning !! The result of the calculation will relative with belt width ( User select )**

And the limit of "ROCK CONVEYOR Lite LTSB" version is

1. The calculation for the length of the conveyor up to 200 m

2. Support Flat belt and 3 rollers troughing set. ( 0 Degree for the flat belt,>0 Degree for 3 rollers belt )

3. Use SI Unit only

4. Cannot show the pulleys shaft size calculation.

5. Cannot show the detail of the belt ( e.g. No.of ply, Type, Thickness, etc )

6. Cannot save the answer to your devices. ( You can manual save by snapshot )

ROCK CONVEYOR Lite has enough features for the normal user.

If you need to calculate the flat belt, you can input "Roller set angle" to 0

If your conveyor is inclined up you must input + value ( e.g. 1, 2,... )

Further, if conveyed down you can input - value (e.g.-1,-2,-... )

And if your conveyor is horizontal you can input 0 ( zero ) in the " inclined angle" text box.

The Help page >> User can tab to the logo on the main page. ( Top left )
