SmartSchems for VW

What is a SmartSchem?

It starts out as a standard Schematic Electrical drawing.

What makes it smart. is your finger.

See only what you are interested in.

One tap makes all the extraneous clutter simply fall away.

We've all been there.

Sure, electrical schematics aren't difficult to read after you've mastered a few technical details, but they are cluttered with stuff you simply don't need at the time.

SmartSchems changes all that.

Operate switches that turn on lights, horn, turn signals, brake lights and etc.

Even realistic sounds for starting, running and horn.

Learn how the circuits work and how they are fused

You have a complete drawing that a single tap on the area you are interested in makes all the clutter fall away.

This edition puts the schematics for VW models 1951 to 1971 at your fingertips

Here's what is included in this edition:

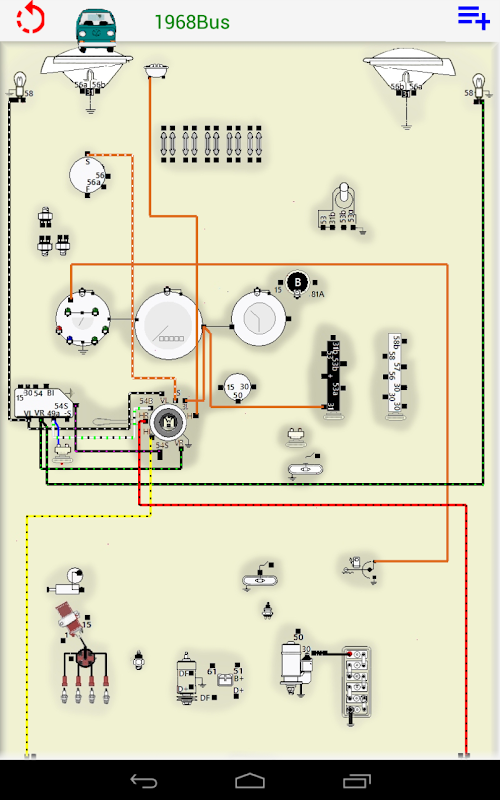

Bus 1951 to 1970

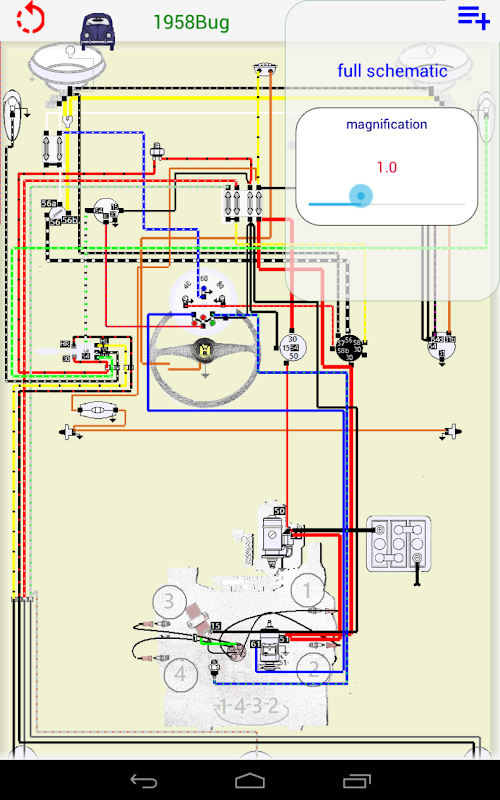

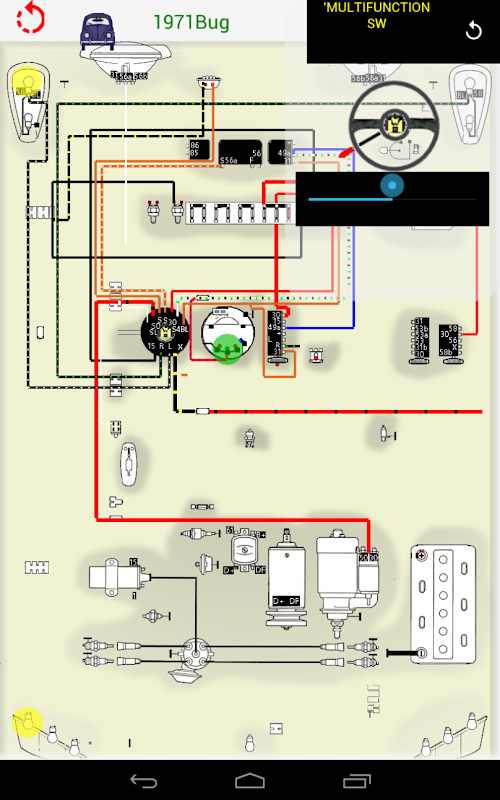

Bug 1951 to 1971

Ghia 1956 to 1971

Type3 1961 to 1968

.

Clean, accurate schematics that work on a phone or a tablet.

Magnify, pan and explore.

See only the wires you are interested in or view the entire schematic.

Wire color, wire weight accuracy.

With you for reference or for fun.

Amaze your friends and be the life of the party by being able to answer just how many fuses the '61 Ghia had. Well...... that might be a bit OTT ......
