WLAN and BT Testing

♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥♥Our Mission♥♥♥♥♥♥♥♥ ♥

Demo on rooted phone:

https://youtu.be/oxsk_SWiWh4

Demo on non-rooted phone:

https://youtu.be/L0NQ31fbUAs

• To test basic sanity, functionality, stress testing for APUT chip.

• This APP is useful for performing “Interoperability Testing” [IOT] for APUT chip with all Android phones.

• Also learn about wifi commands like iwlist, iw , iwpriv etc.

• You can learn about your Android phone like cpu info, mem info , interrupts etc.

*********App Features********

APTesting APP provides below APUT test cases:

1. SCAN_AP_ID_0:

Android WiFi device scans for APUT’s SSID and shows details of AP. Below are the information shown in SCAN report.

Band, SSID, BSSID, MAC, Capabilities which includes WPS support and type of Network whether ESS or IBSS, Frequency, channel, RSSI etc.

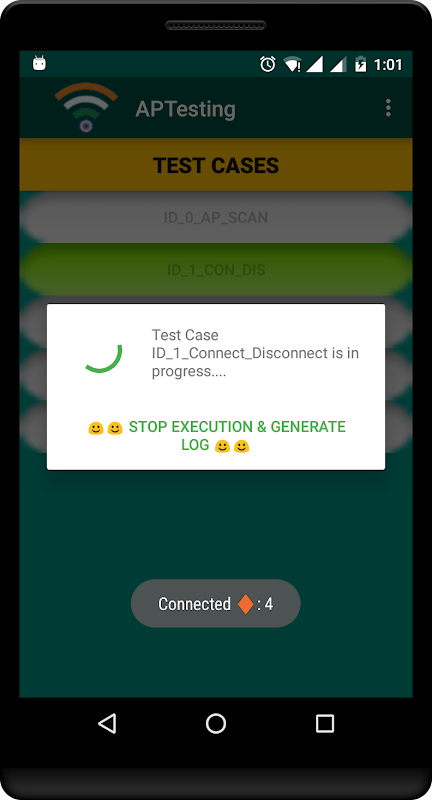

2. CONNECT-DISCONNECT_ID_1:

Android WiFi device get connected to APUT with specified security and then does connect disconnect for specified times with specified delay b/w connect & disconnect.

Supported Securities are: ASCII[wep-40/104/WPA-TKIP/WPA2-TKIP/WPA-AES/WPA2-AES/WPA-MIXED] and HEX[wep-40/104/WPA-TKIP/WPA2-TKIP/WPA-AES/WPA2-AES/WPA-MIXED]

And also no security :)

3. CONNECT_IDLE_ID_2:

Android WiFi device get connected to APUT and be idle until user disconnects the connection.

4. CONNECT_HIDDEN_SSID_ID_3:

Android WiFi device get connected to APUT where hidden SSID is enabled and be idle until user disconnects the connection.

5. CONNECT_PING_ID_4:

Android WiFi device get connected to APUT and after connection is successful, do continuous ping until user stops it. Please check ICMP Request/Response in sniffer to make sure ping going on.

A.

Netcfg

dmesg

process status

arp table

wifi_tx_rx_packets

B.

Added all iwlist commands

scan

channel

rate

keys

power

wpa

event

txpower

retry

auth

version

C.

Added some test cases in menu

Available frequencies

Interrupt info

cpu info

memory info

D.

Added some settings

Clear dmesg/logcat

Loglevel to 7

LogLevel to 8

E. You can check "Data Monitor Since Boot up" from Menu.

F. You can get "Kernel Symbol" from menu.

G. New test case added for command "iwpriv"

-> version

-> getRSSI

-> getStats

-> getConfig

-> getChannleList

-> getWlanStats

-> get11Dstate

-> getAutoChannel

-> getconcurrency

-> getHostStates

-> getWmmStatus

H. New test case to get all performance parameters

-> Receive Socket memory

-> Send Socket Memory

-> TCP Parameters

-> UDP Parameters

-> IP Parameters

-> ICMP

-> INET

-> CPU

-> Set wmem_max

-> Set rmem_max

1. Iperf features

=> Now You can use iperf tarffic tool in your phone.No root is required.

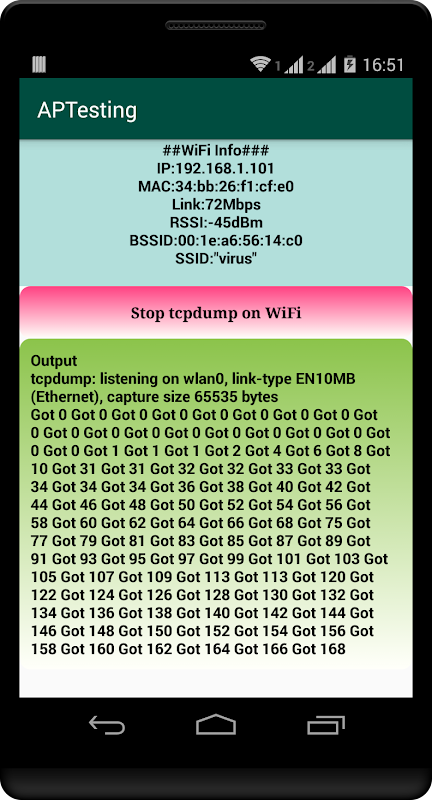

2. TCPDUMP

=> When your phone's WiFi is connected .You can use tcpdump to captures packets.Root is requred

to avail this deatures.

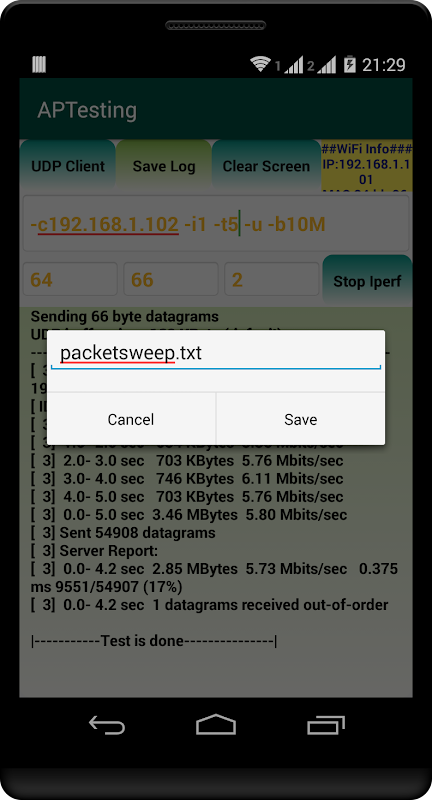

3. Packet Sweep:

=> You can use iperf tool to send differnet length of packets.No root is required.

4. Now you can open log folder directly from APP.

Please see screen shots of this APP.

5. Support for iperf3 is given.

6. Bluetooth testing support is added.

7. WiFi scan results are available.

8. WiFi chip information is available.

Note: make sure you enable root to your phone to get all features.

*****UserGuide is available within the APP for details information about APTesting*****
