Калибр NFC

An application for working with Caliber-M-NFC fuel level sensors over an NFC interface. This is a tool for the installer of vehicle monitoring systems.

The application provides the following features:

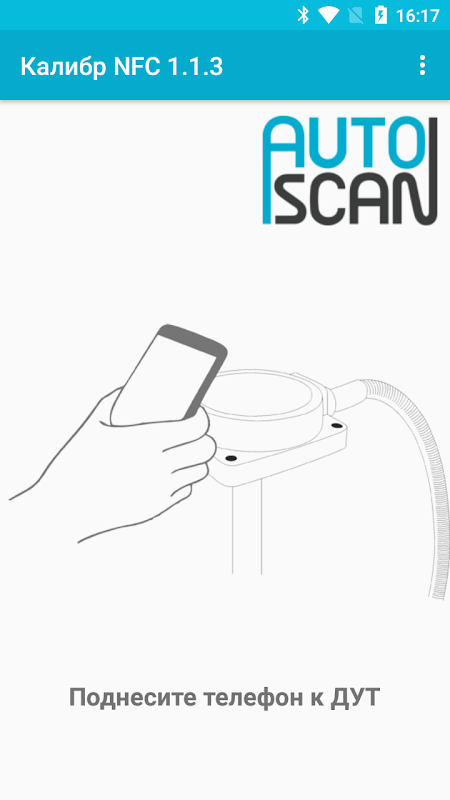

1. Full sensor setup via NFC interface (no computer required)

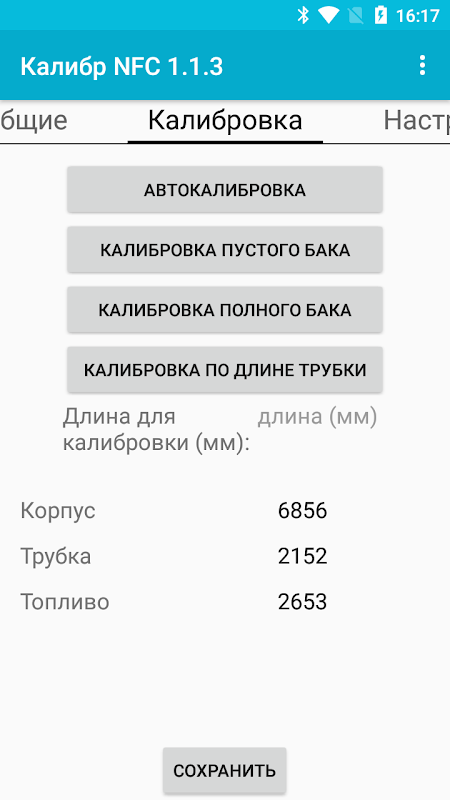

- Sensor calibration control;

- Settings of communication interfaces with the terminal;

- Settings for frequency and analog outputs;

- Filter setting

2. Getting current readings:

The measured value is current / filtered / normalized;

Temperature;

Sensor status;

Analog and frequency output status.

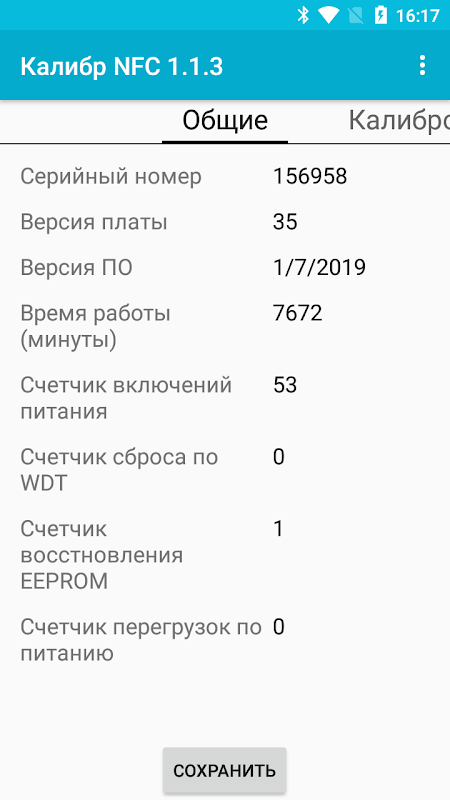

3. Obtaining diagnostic information about FLS.

Serial number;

Firmware version;

The hardware version;

Working hours;

Number of inclusions;

!!! Reading / writing settings and access to diagnostic information is possible even without power on the sensor.

This allows you to configure the FLS without connecting it even to the power supply.

This makes it possible to diagnose even a malfunctioning FLS, to determine the cause of the malfunction (to detect deliberately disabling unscrupulous drivers)
