Топогеодезия СК-42 light

Calculations of field topography in full or abbreviated coordinates, in one or in adjacent areas.

Rectangular coordinates and heights in meters.

Angles of directions and places in thousandths on a scale of 60-00 or 64-00. In OGZ and PGZ, the angles are also in degrees-minutes-seconds.

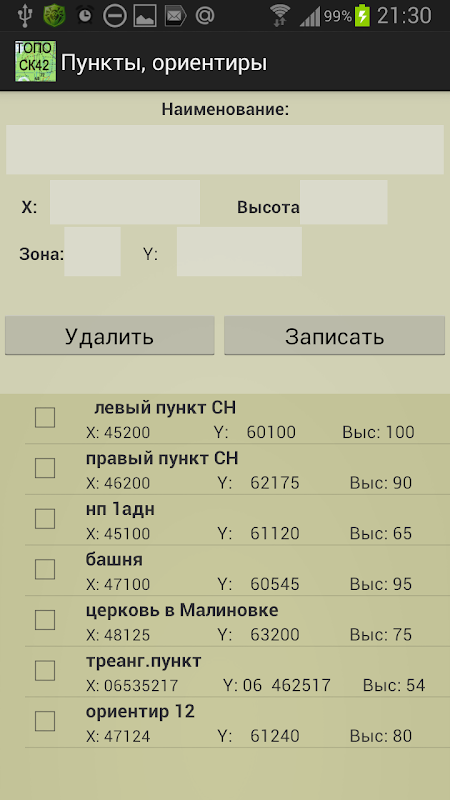

Maintaining a list of items whose data can be used in tasks (250). Saving data to a file / reading and adding data from a file. The file in xml / txt can be edited / prepared in text editors.

(Google / ArcGIS / TopBox / Off-line atlases) with point markers from the list (only with full coordinates).

Google Map is cached for offline use.

TopBox with Off-line manager in which you can load the visible area with the selected zoom levels. Maximum downloadable tiles maps 6000.

Atlases for off-line use in *. mbtiles can be created in SAS Planet, MobAC (only available in the full version).

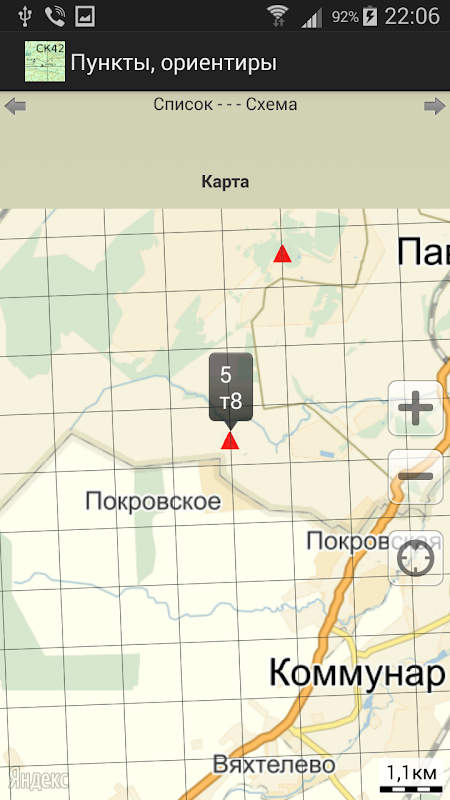

When you touch the map, rectangular (in SK-42) and geodetic coordinates of the place are shown.

Coordinate grid (1 or 2 km) in SK-42. It is built around the first point on the list, 40x40 km.

Measuring distances on the map.

Composition of tasks:

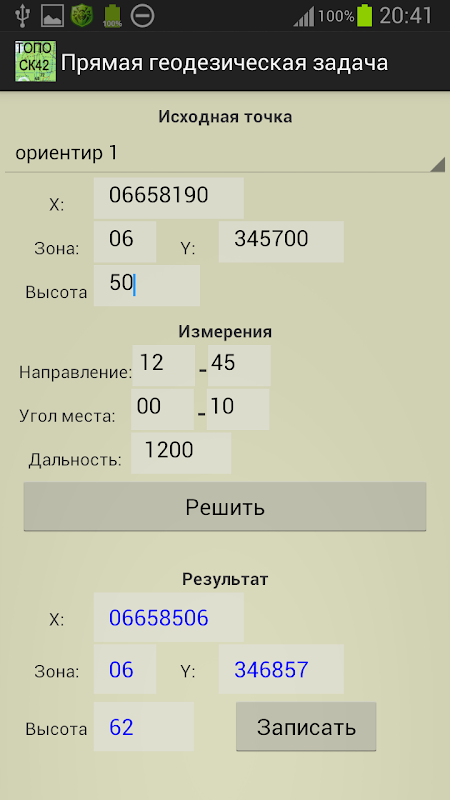

- direct geodetic problem;

- inverse geodetic problem;

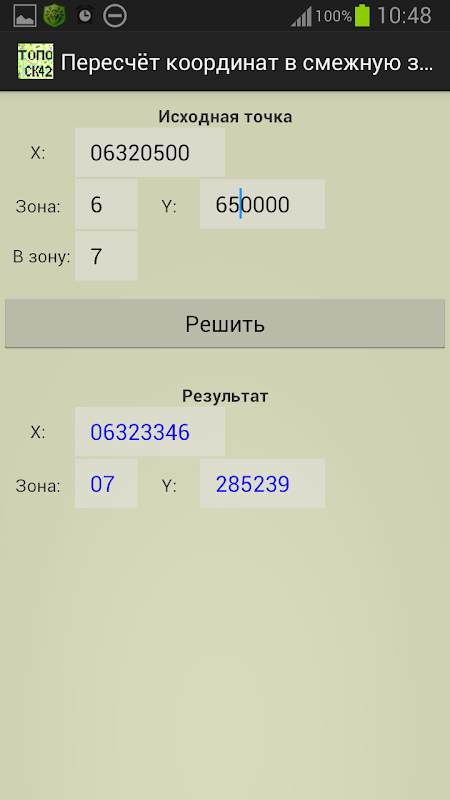

- recalculation of coordinates to an adjacent zone;

- sniffing by conjugate observation;

- binding with an undirected rangefinder;

- snapping by resection along the measured angles;

- referencing according to GPS data (geodetic and rectangular).

- azimuth of the star at a given time. For the Sun, for the Polar Star;

- nomenclature of the map sheet (specified scale for specified coordinates);

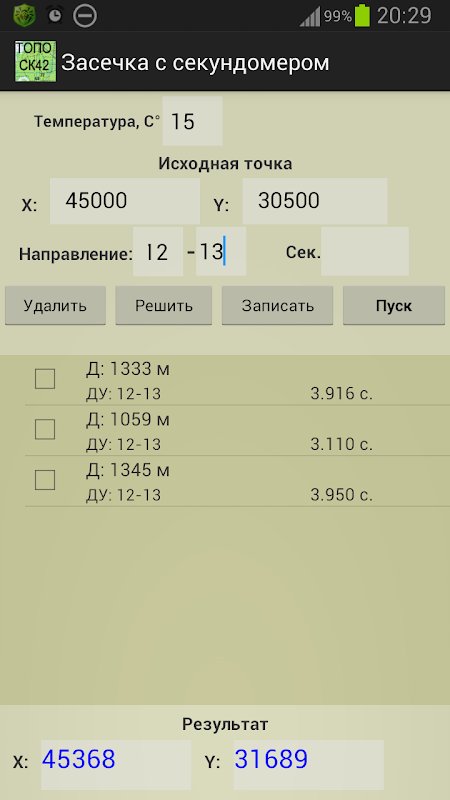

- notch with a stopwatch (taking into account the air temperature), screen stopwatch.

On the main menu screen to select

- scales of thousandths,

- Map service (Google, ArcGIS, Mapbox, Offline Atlas)

- interface color style

- the type of point markers on the map

- temperature (C / F)

- saving data to a file / reading and adding data from a file.

Free (light) version limitations:

- a list of 4 points (instead of 250);

- on the map a small area of ​​the grid;

- several tasks and functions are disabled.

- no work with off-line atlases.

The free version also has some ads.

The program is distributed "as is". Its use is at the discretion and responsibility of the user.
