4K Integral Total Control

This APP request Bluetooth authorization and SD card/file writing permission.

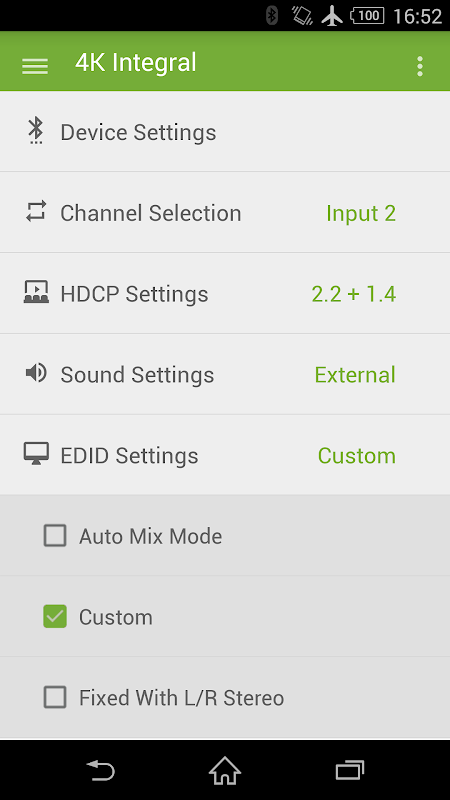

It will allow you to control and operate your HDfury Integral and your Home Theater setup

It can perform the following:

- Reset/HPD.

- Read/Modify and Upload Configuration.

- Switch Input channel.

- Set Auto switching mode.

- Set Input Priority mode.

- Turn Logo LED and Blue LEDs ON/OFF.

- Turn Beta AVR Mode ON/OFF

- Set Automix enforceable flags (Stereo, 5.1, Full Sound, YCbCr, BT2020, 3D Remove, HDR)

- Set Automix Algo with Min Mixed Capabilities, Max Audio/Min Video, Top Output Priority, Max Audio/Max Video.

- Enter/Exit Matrix mode.

- Define HDCP rules and fix HDCP error.

- Sound input/output selection.

- Mute/Unmute all sound output from Integral

- Control your display HDR mode with HDR Force Mode ON/OFF, Samsung HDR enable, Full HDR mode enable, HDR Hotkey ON/OFF

- Set CEC device with Video Processor or Audio System with ARC.

- EDID table selection with 25 EDID Banks (list below)

- Convert 4K60 4:4:4 > 4K60 4:2:0

- Send live CEC command to the HDMI/CEC network.

- Setup CEC rules and access CEC customs commands.

- Define CEC press button (Short and Long press)

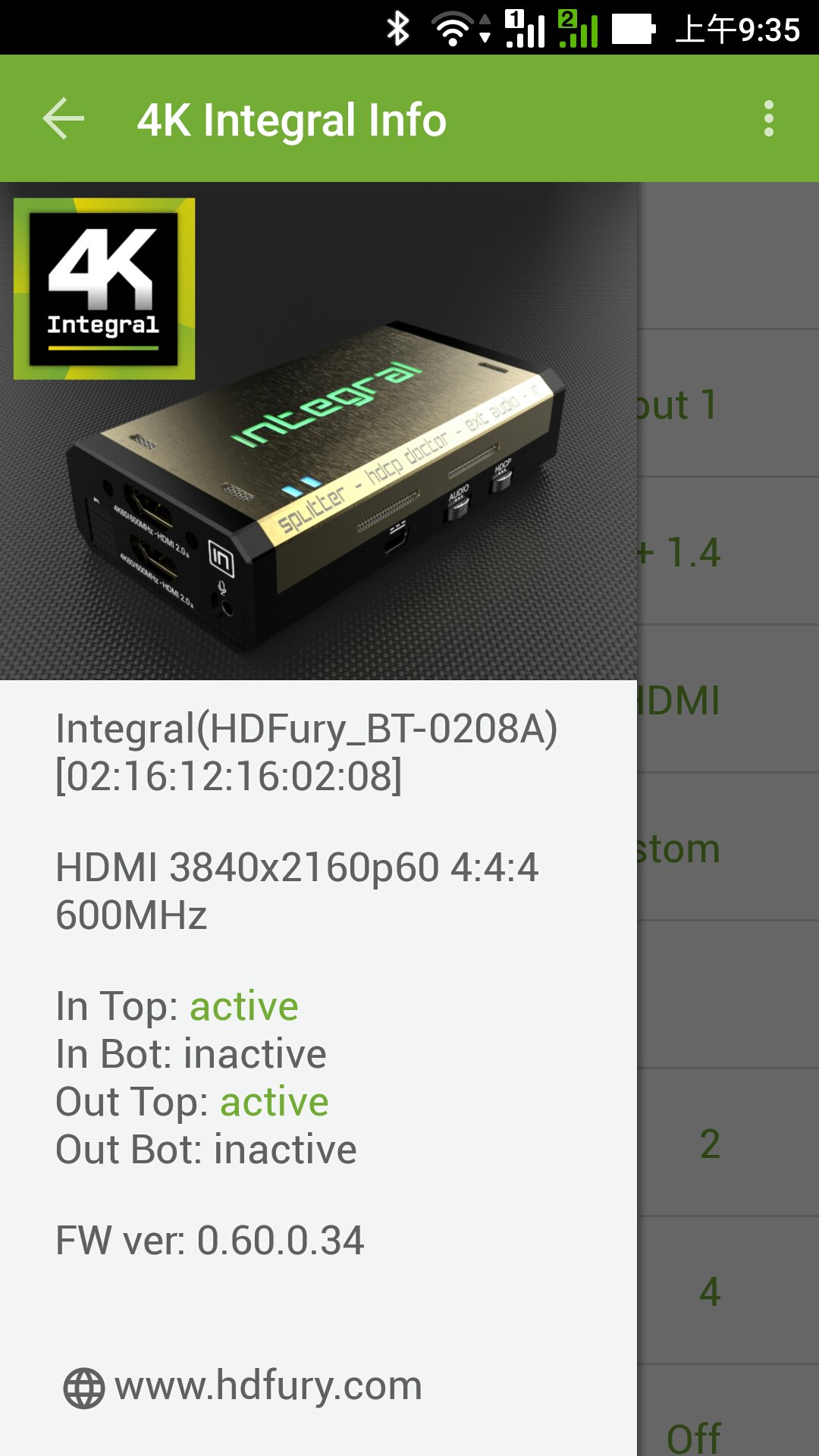

- Display current link speed and infoframe information.

- Display incoming signal information.

- Display active link(s).

List of Custom EDID banks available:

1 - Custom Uploaded/Default EDID

2 - 4k60-444 600MHz HDR BT.2020 All Sound

3 - 4k60-444 600MHz HDR BT.2020 Stereo

4 - 4k60-444 600MHz All Sound

5 - 4k60-444 600MHz Stereo

6 - 4k50-444 600MHz HDR BT.2020 All Sound

7 - 4k50-444 600MHz HDR BT.2020 Stereo

8 - 4k60-420 12-bit HDR BT.2020 All Sound

9 - 4k60-420 12-bit HDR BT.2020 Stereo

10 - 4k60-420 12-bit BT.2020 All Sound

11 - 4k60-420 12-bit BT.2020 Stereo

12 - 4k60-420 8-bit 300MHz All Sound

13 - 4k60-420 8-bit 300MHz Stereo

14 - 4k30-444 300MHz All Sound

15 - 4k30-444 300MHz Stereo

16 - 4k30-RGB 300MHz All Sound

17 - 4k30-RGB 300MHz Stereo

18 - 4k24-422 12-bit BT.2020 All Sound

19 - 4k24-422 12-bit BT.2020 Stereo

20 - 1080p-444 148MHz All Sound

21 - 1080p-444 148MHz HDR Stereo

22 - 1080p24-444 All Sound

23 - 1080p24-444 Stereo

24 - 1080I-444 All Sound

25 - 1080I-444 Stereo

You can create your own menu and add custom commands at any time through an editable XML menu file.

You can pair, connect and use the Bluetooth APP even when no signals is going through the Integral, in such conditions, the Bluetooth range is over >20m. However, the Bluetooth range will be highly affected by the resolution in use because of EMI, below you can find the average working distance for Bluetooth based on the processed signal resolution and refresh rate.

1080p60 and below: Bluetooth working range is about 10 meters.

4K60 4:2:0 and below: Bluetooth working range is about 5 meters.

4K60 4:4:4: Bluetooth working range is about 2 meters. (We recommend using IR for wireless control in 600MHz)
