AC & DC circuit solver - Elect

Electrical toolkit:-

1. DC Wheatstone Bridge : Solves Balanced and Unbalanced circuit and also all other circuits when you cleverly assign OPEN and SHORT values to some Resistors. Provides you the Voltage & Current in every branch and all right.

2. AC Bridge : Solves Balanced and Unbalanced AC circuits with Resistors, Inductors and Capacitors and also all other circuits when you assign OPEN and SHORT values to some branches . Provides you the Voltage & Current with phase in every branch and again all right.

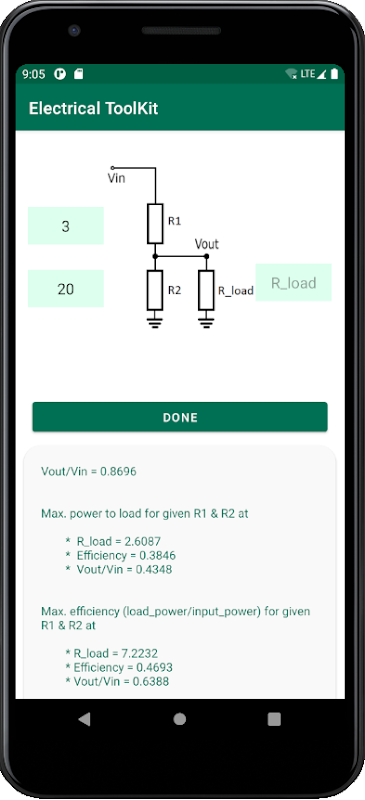

3. Loading effect : Loading effect when load is added in a voltage divider circuit, what load gives the maximum load power and which load gives the maximum efficiency.

4. Electricity consumption : Although a simple calculator would do this, this way you can simplify it further.

5. Equation Solver : An add-on, this solver can solve equations of no limit to the number of unknown variables (but limited by your processor XD).

6. Complex math : Installed a second calculator only for doing complex math. Here you have that too.

Other Data:

* Resistor Color Codes

* Inductor Color Codes

* Resistivity with temp. coefficient

* Copper wire Current Capacity

* Digital ICs

* LED voltage

* Standard Resistor series
