Adaptar

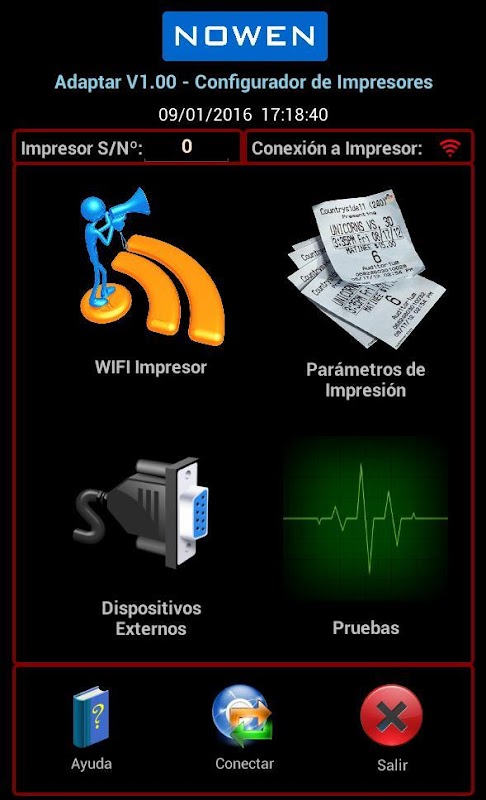

"Fit" is an application designed to set technical parameters and performance tests of thermal printers brand Nouwen model "Rhea".

The application is designed to be installed on tablets with 7 "screen, it has online help in each of its windows.

"Fit" uses the WIFI Tablet to communicate with the printer "Rhea", it acts as a network access point with factory-defined parameters that can be changed for greater security for the people that have the ADMIN key.

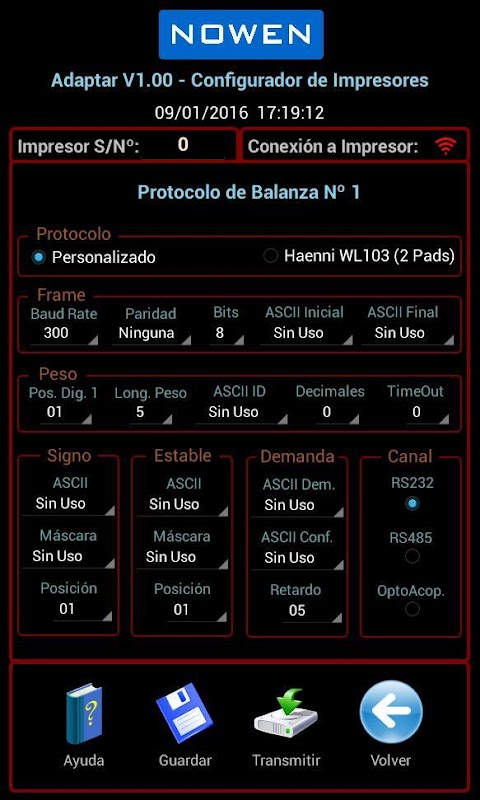

The printer "Rhea" can receive the weight transmitted from two electronic scales and transmitted by a contactless card reader (RFID) code. From the "Adapt" application can configure these devices communication (baud rate, parity, frame, connection type, etc.)

The application also allows testing of the three opto outputs to control lights (or similar devices) that has the printer, entries scales and RFID reader.

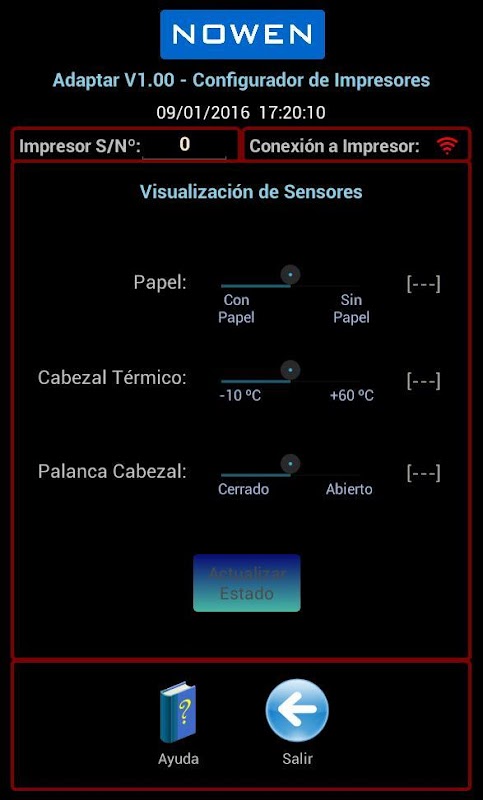

For evaluation of the printer, "Fit" has a window to determine the status of print engine sensors and make prints for checking the status of the thermal printhead.

Tickets issued from the printing "Nandu" may contain Header and Footer, which can be programmed from the application.

Print intensity and sensitivity to detect the presence of paper can also be configured from the application.
