Clinometer

A simple app to measure the inclination of your device using the accelerometers

Basic Air Data Clinometer is a simple App to measure your device’s inclination angles with respect to gravity’s direction using the onboard accelerometers.

It is a basic and lightweight App with geometric-inspired graphics that can be used as Clinometer or Bubble Level.

It is intended to measure, not store data.

The app is 100% Free and Open Source.

GETTING STARTED GUIDE:

https://www.basicairdata.eu/projects/android/android-clinometer/

IMPORTANT NOTE:

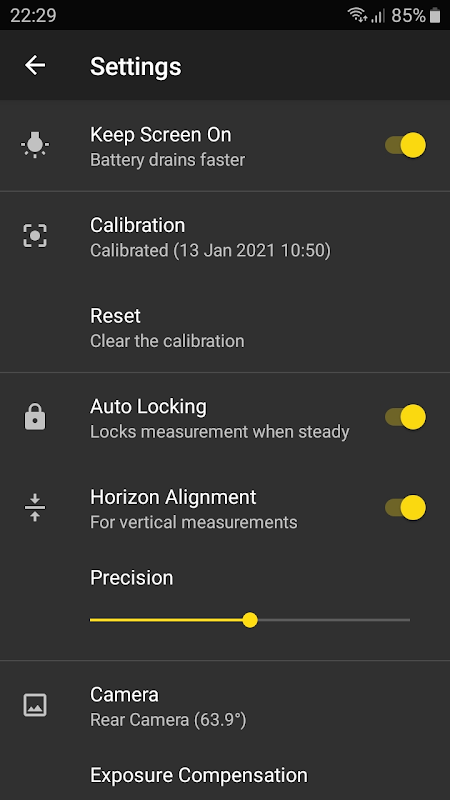

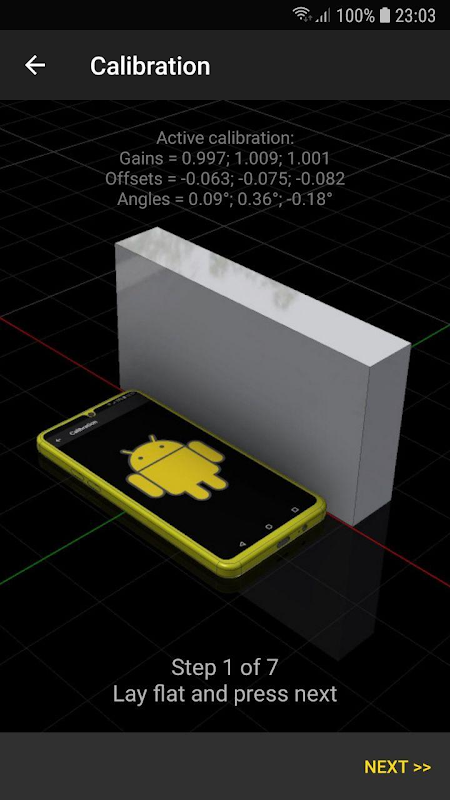

Please go to Settings and calibrate it before use.

The measurement’s precision mainly depends on the accuracy of the calibration: use a good horizontal and vertical reference.

USAGES:

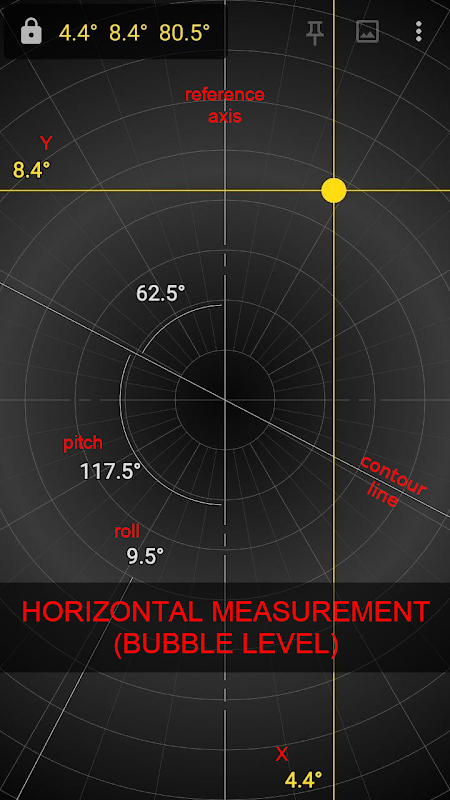

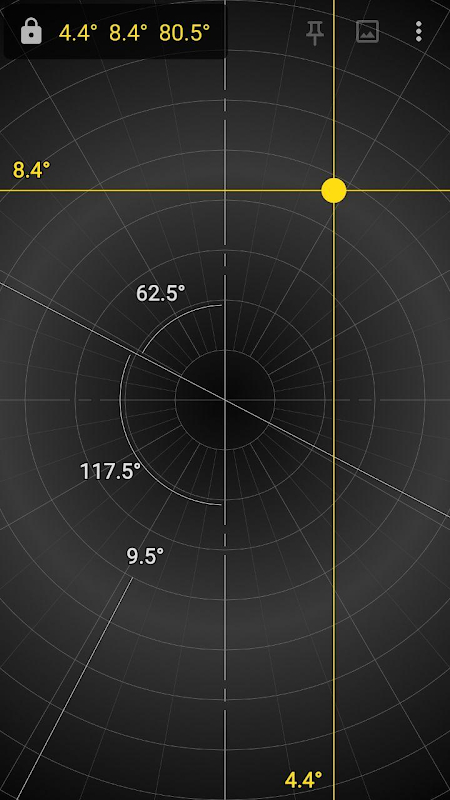

☆ Bubble Level (horizontal)

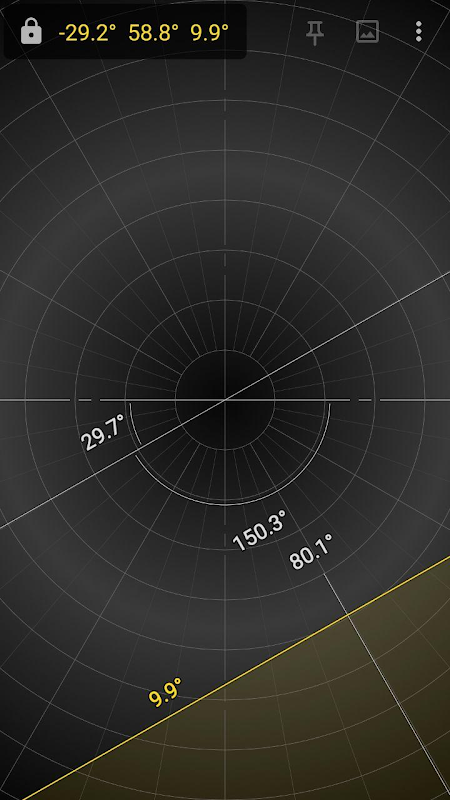

☆ Clinometer (vertical)

☆ Measure with the Camera (vertical only)

☆ Ability to perform incremental measurements

MEASUREMENT:

- X (Yellow) = The angle between the horizontal plane and the horizontal axis of the screen

- Y (Yellow) = The angle between the horizontal plane and the vertical axis of the screen

- Z (Yellow) = The angle between the horizontal plane and the axis that comes out perpendicular to the screen

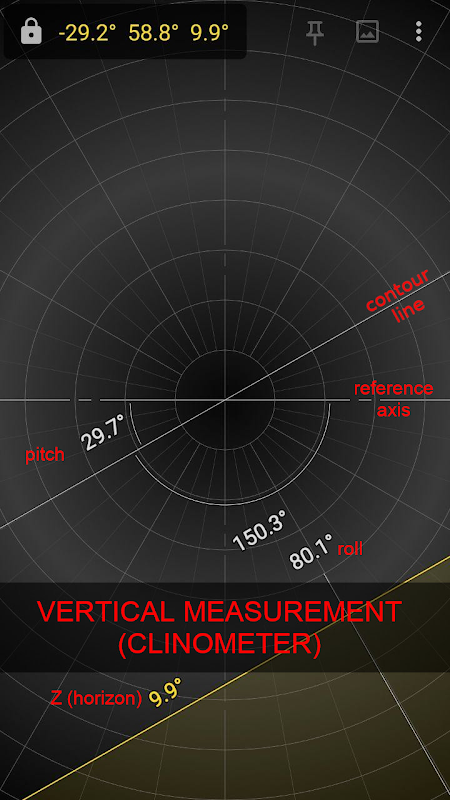

- Pitch (White) = The angle between the contour line (inclined, white) and the reference axis (dashed white) on the screen plane

- Roll (White) = The angle between the screen and the horizontal plane (or the pinned plane when you perform an incremental measurement)

LANGUAGES:

The translation of this app is based on users contribution. Everyone can freely help in translations using Crowdin (https://crowdin.com/project/clinometer).

ADDITIONAL INFORMATION:

- Copyright (C) 2020 BasicAirData - https://www.basicairdata.eu

- For additional information please see https://www.basicairdata.eu/projects/android/android-clinometer/

- This program is free software: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any later version. See the GNU General Public License for more details: https://www.gnu.org/licenses.

- You can view and download the source code of this app on GitHub: https://github.com/BasicAirData/Clinometer
